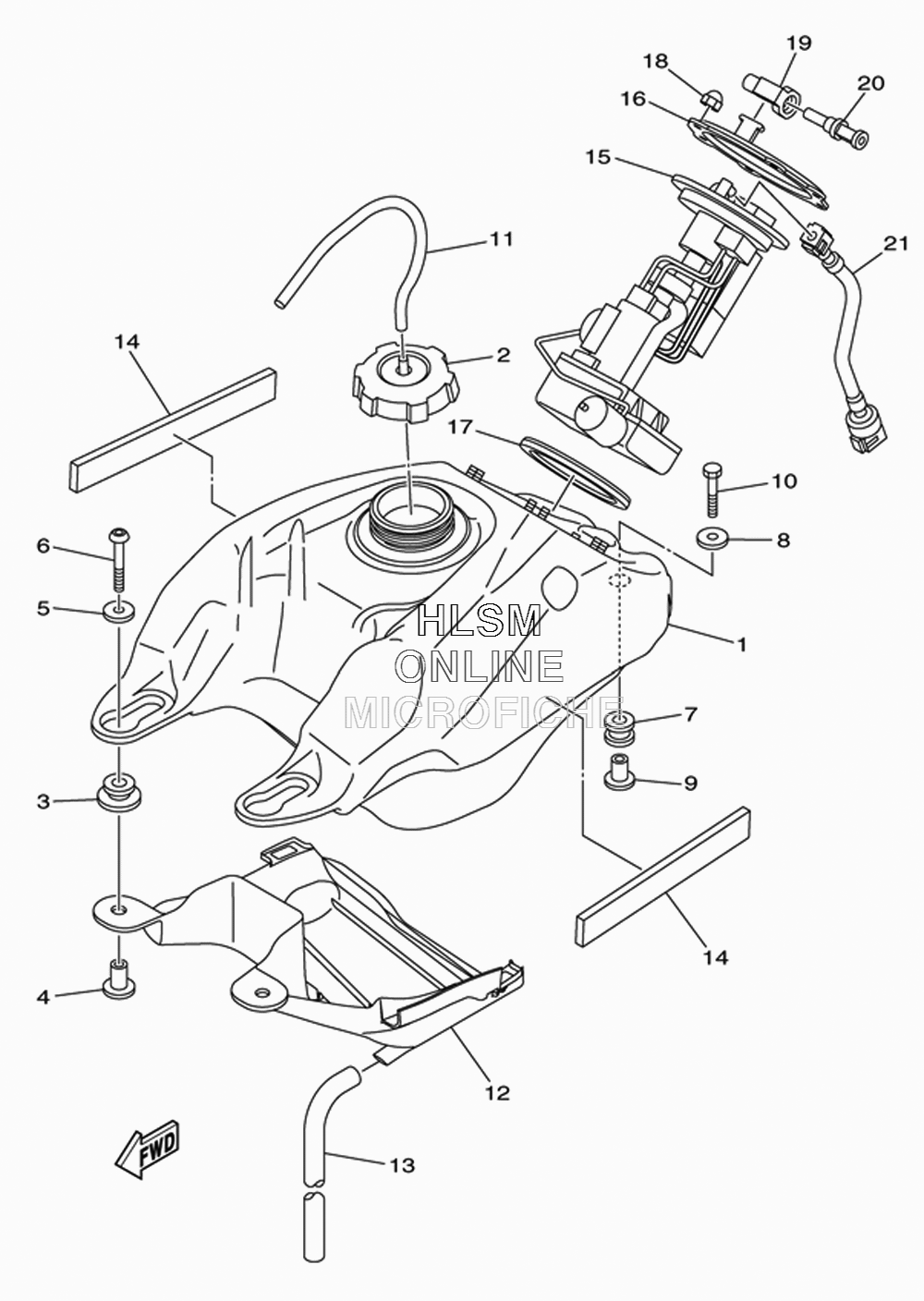

FUEL TANK для Yamaha YFZ 450R - 2012 года выпуска`
-
№АртикулНазвание
-
118P-24110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
25KM-24610-00-00 CAP ASSYCAP ASSY
-
390480-18004-00 GROMMETGROMMET
-
490387-06258-00 COLLARCOLLAR
-
590201-06033-00 WASHER, PLATEWASHER, PLATE
-
692012-06040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
790480-18290-00 GROMMETGROMMET
-
890201-06033-00 WASHER, PLATEWASHER, PLATE
-
990387-06257-00 COLLARCOLLAR
-
1095812-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1190445-08008-00 HOSEHOSE
-
1218P-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
1318P-2247A-00-00 HOSE 1HOSE 1
-
1490520-08001-00 DAMPER, PLATEDAMPER, PLATE
-
1518P-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
1618P-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
171S3-24486-00-00 O-RINGO-RING
-
1895302-06800-00 NUT, CROWNNUT, CROWN
-
1918P-2464V-00-00 CASE, CAPCASE, CAP
-
2018P-2467E-00-00 CAPCAP
-
2118P-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
