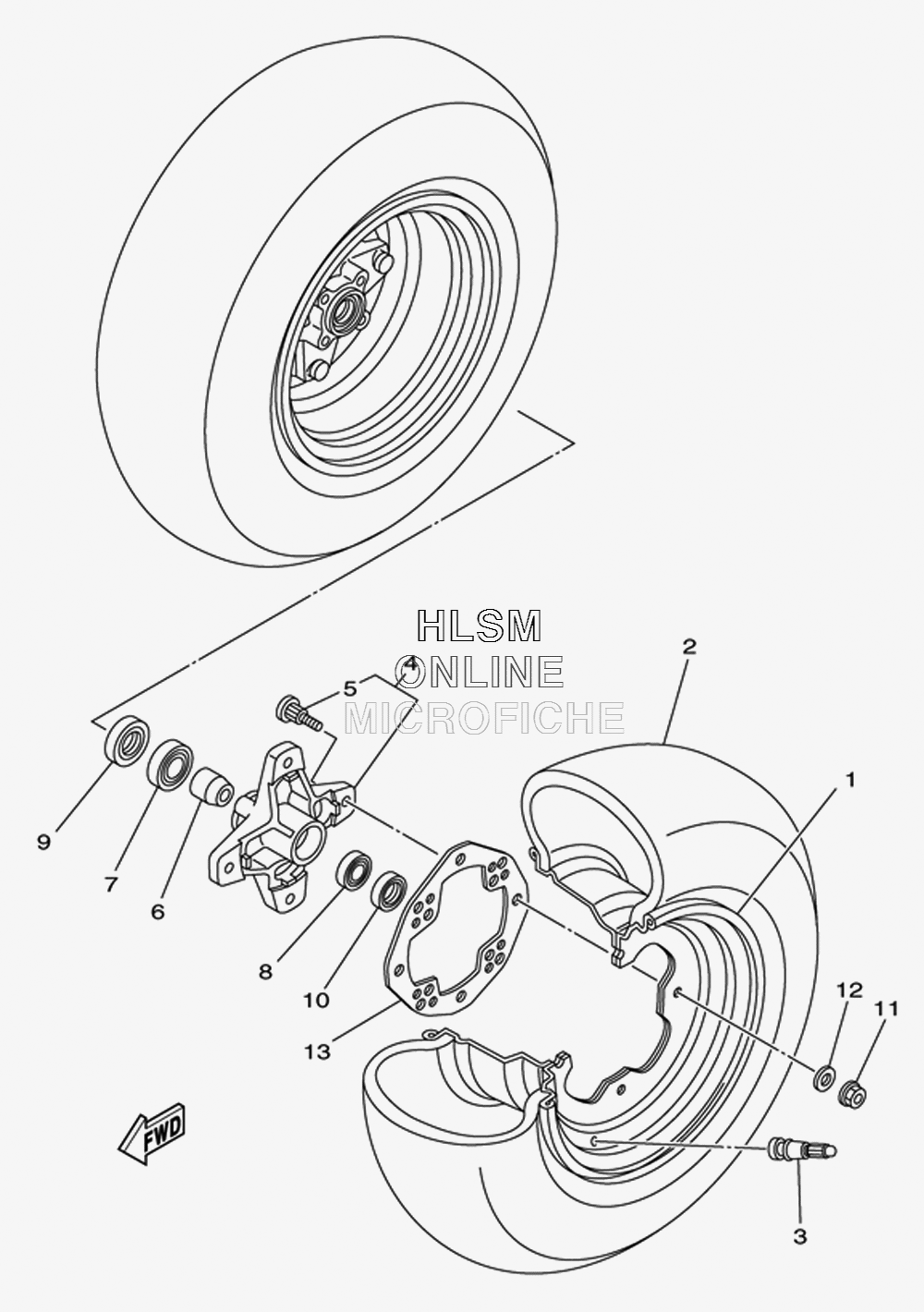

WHEEL - FRONT W/ AXLE ASSY для Yamaha YFZ 450 - 2012 года выпуска`
-
№АртикулНазвание
-
11S3-25180-00-00 WHEEL COMP.WHEEL COMP.
-
294107-10020-00 TIRE (AT21X7-10 KT851B T/L) DUNLOPTIRE (AT21X7-10 KT851B T/L) DUNLOP
-
393900-00030-00 VALVE, RIM (TR412)VALVE, RIM (TR412)
-
41S3-25111-00-00 HUB, FRONTHUB, FRONT
-
590114-10006-00 ...BOLT, SERRATION...BOLT, SERRATION
-
65LP-25117-00-00 SPACER, BEARINGSPACER, BEARING
-
793306-00446-00 BEARINGBEARING
-
893306-20231-00 BEARINGBEARING
-
993105-26026-00 OIL SEAL, SDD-TYPEOIL SEAL, SDD-TYPE
-
1093102-22216-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
1195702-10500-00 NUT, FLANGENUT, FLANGE
-
1292902-10200-00 WASHERWASHER
-
131S3-25127-01-00 COVER, PLATECOVER, PLATE
