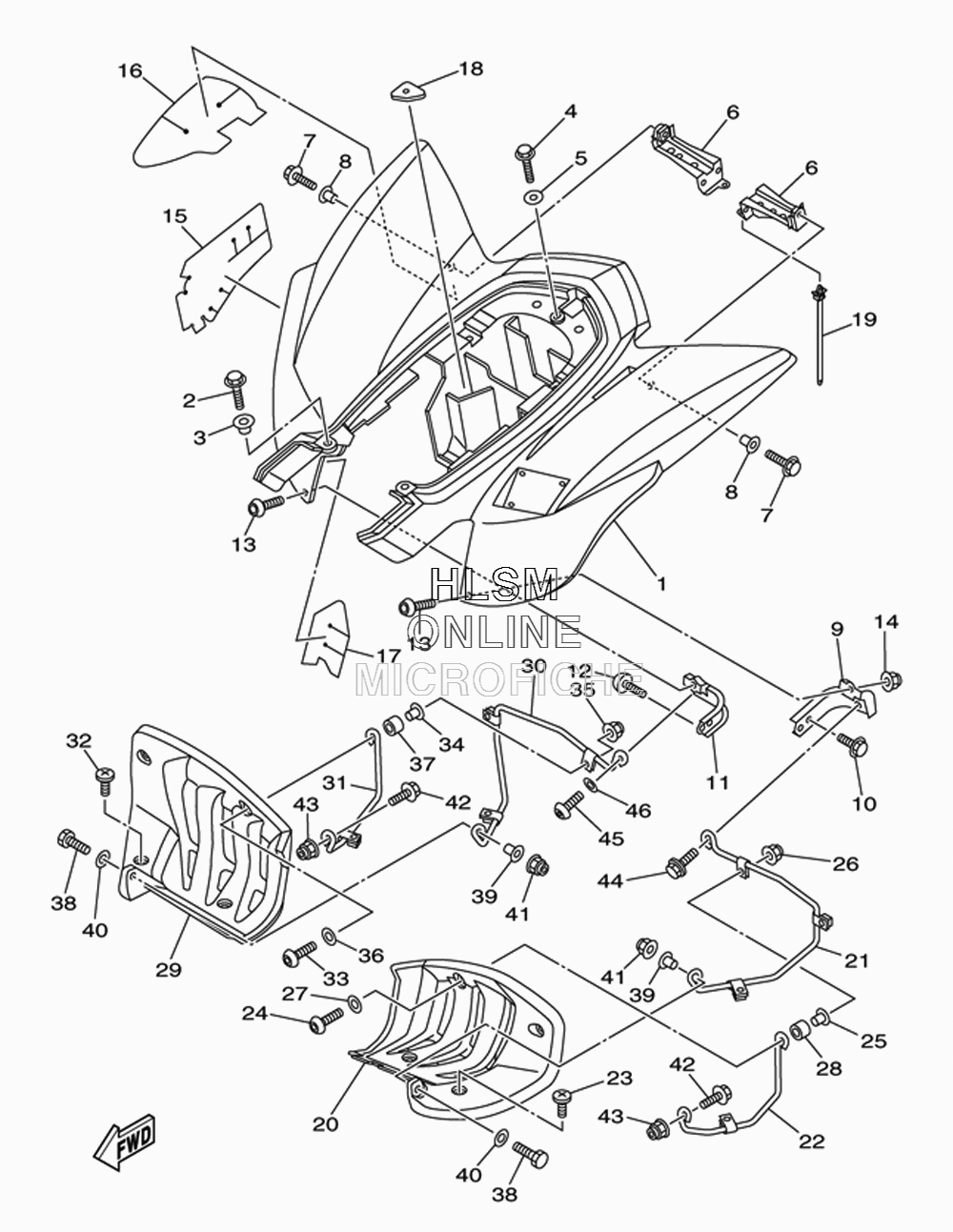

FENDER - REAR для Yamaha YFZ 450 - 2012 года выпуска`
-
№АртикулНазвание
-
15TG-W2161-23-00 REAR FENDER COMP. (BLACK METALLIC J)REAR FENDER COMP. (BLACK METALLIC J)
-
15TG-W2161-14-00 REAR FENDER COMP. (BLUISH WHITE SOLID 1)REAR FENDER COMP. (BLUISH WHITE SOLID 1)
-
290105-06084-00 BOLT, FLANGEBOLT, FLANGE
-
390387-06146-00 COLLARCOLLAR
-
490105-06084-00 BOLT, FLANGEBOLT, FLANGE
-
590201-06087-00 WASHER, PLATEWASHER, PLATE
-
65TG-21613-10-00 STAY, FENDER 1STAY, FENDER 1
-
795802-06014-00 BOLT, FLANGEBOLT, FLANGE
-
890387-06153-00 COLLARCOLLAR
-
95TG-21643-20-00 STAY, REARSTAY, REAR
-
1095822-08012-00 BOLT, FLANGEBOLT, FLANGE
-
115TG-21644-30-00 STAY, REARSTAY, REAR
-
1292012-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1390111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
155TG-2163A-01-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
165TG-2163E-10-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
175TG-2163F-10-00 COVER, REAR FENDER 3COVER, REAR FENDER 3
-
185TG-21639-00-00 DAMPER 2DAMPER 2
-
1990464-12089-00 CLAMPCLAMP
-
205TG-21621-00-00 FLAPFLAP
-
215D3-2164F-10-00 STAY 1STAY 1
-
225D3-2164H-10-00 STAY 3STAY 3
-
2390154-05043-00 SCREW, BINDINGSCREW, BINDING
-
2492012-06035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2590560-06201-00 SPACERSPACER
-
2695602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2790201-06076-00 WASHER, PLATEWASHER, PLATE
-
2890387-06197-00 COLLARCOLLAR
-
295TG-21691-00-00 FLAPFLAP
-
305D3-2164G-20-00 STAY 2STAY 2
-
315D3-2164J-10-00 STAY 4STAY 4
-
3290154-05043-00 SCREW, BINDINGSCREW, BINDING
-
3392012-06035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3490560-06201-00 SPACERSPACER
-
3595602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3690201-06076-00 WASHER, PLATEWASHER, PLATE
-
3790387-06197-00 COLLARCOLLAR
-
3897012-06025-00 BOLTBOLT
-
3990387-06204-00 COLLARCOLLAR
-
4090201-06093-00 WASHER, PLATEWASHER, PLATE
-
4195602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4295822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
4395602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4495822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
4592012-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4690201-08043-00 WASHER, PLATEWASHER, PLATE
