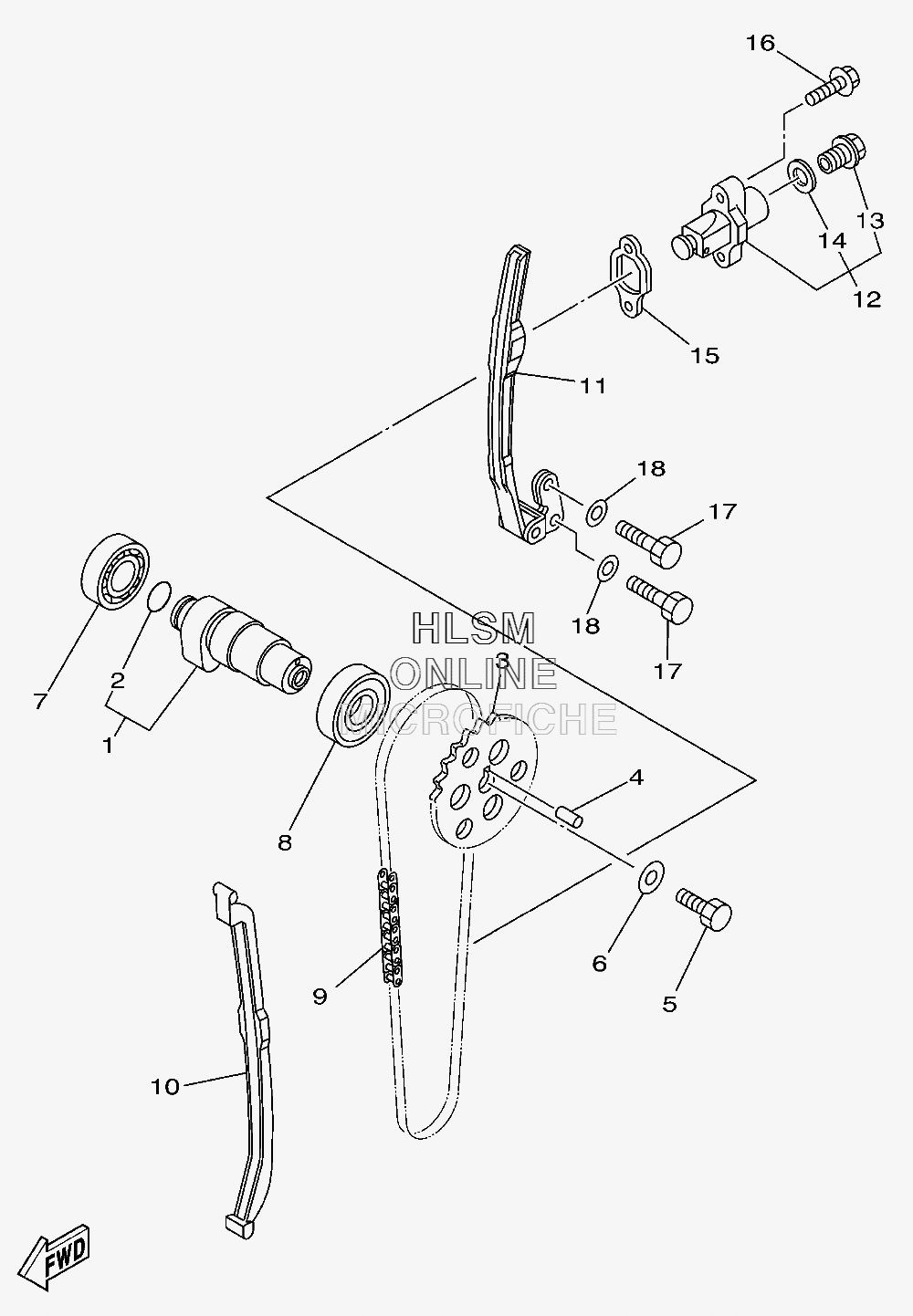

CAMSHAFT W/ CHAIN для Yamaha RAPTOR 350 - 2012 года выпуска`
-
№АртикулНазвание
-
15UH-12170-10-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
293210-17003-00 ...O-RING...O-RING
-
35YT-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
493604-10011-00 PIN, DOWELPIN, DOWEL
-
590101-10016-00 BOLTBOLT
-
690201-10591-00 WASHER, PLATEWASHER, PLATE
-
793306-00438-00 BEARINGBEARING
-
893306-00502-00 BEARINGBEARING
-
994500-02090-00 CHAIN (BF05M 90L)CHAIN (BF05M 90L)
-
103Y1-12231-01-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
111UY-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
1231G-12210-01-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
1331G-12222-00-00 ...PLUG...PLUG
-
1431G-12214-00-00 ...GASKET...GASKET
-
153GD-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1695022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1797022-06016-00 BOLTBOLT
-
1892902-06600-00 WASHER, PLATEWASHER, PLATE
