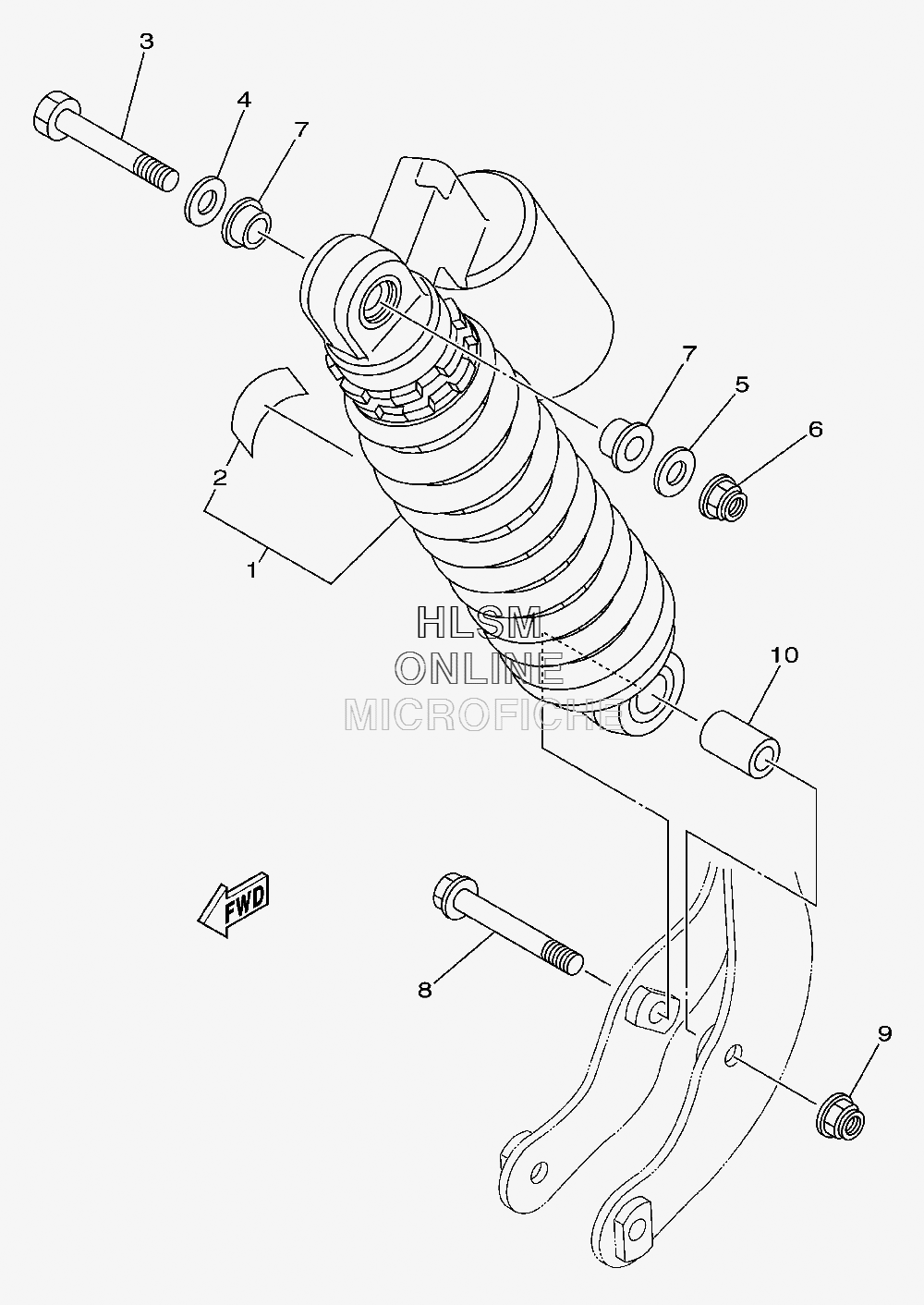

SUSPENSION - REAR SHOCK ABSORBER для Yamaha RAPTOR 350 - 2012 года выпуска`
-
№АртикулНазвание
-
15YT-22210-40-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
24AA-22259-80-00 ...LABEL, WARNING...LABEL, WARNING
-
390101-12012-00 BOLTBOLT
-
490201-12033-00 WASHER, PLATEWASHER, PLATE
-
590201-12032-00 WASHER, PLATEWASHER, PLATE
-
690185-12007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
790387-127G8-00 COLLARCOLLAR
-
890105-12050-00 BOLT, FLANGEBOLT, FLANGE
-
995602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1090387-12020-00 COLLARCOLLAR
