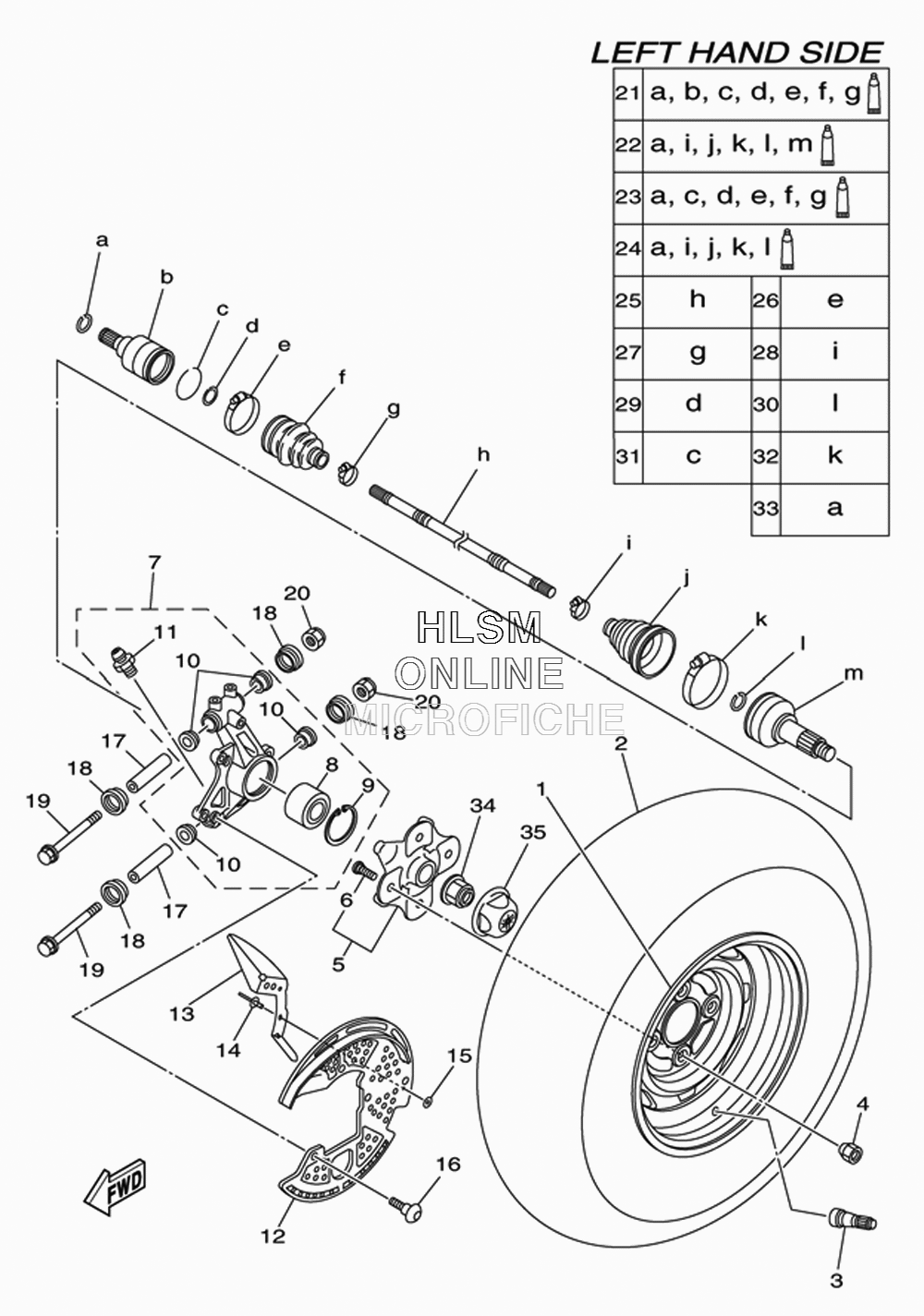

WHEEL - REAR LEFT SIDE W/ AXLE ASSY для Yamaha GRIZZLY 700 4WD HUNTER - 2012 года выпуска`
-
№АртикулНазвание
-
11ND-F5390-10-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
294110-12814-00 TIRE (AT25X10-12 MU20 TL) MAXXISTIRE (AT25X10-12 MU20 TL) MAXXIS
-
393900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
490179-10020-00 NUTNUT
-
53B4-25111-10-00 HUB, FRONTHUB, FRONT
-
690114-10014-00 ...BOLT, SERRATION...BOLT, SERRATION
-
71HP-F530F-00-00 REAR KNUCKLE ASSYREAR KNUCKLE ASSY
-
893305-00602-00 ...BEARING...BEARING
-
999009-55500-00 ...CIRCLIP...CIRCLIP
-
1090381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
1193700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
123B4-2514A-00-00 RING, WHEEL 1 (LEFT)RING, WHEEL 1 (LEFT)
-
133B4-2539F-00-00 PLATE 1PLATE 1
-
1490267-47187-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
1590201-04027-00 WASHER, PLATEWASHER, PLATE
-
1690149-06117-00 SCREWSCREW
-
175KM-23448-00-00 SPACERSPACER
-
182NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
1990105-10212-00 BOLT, FLANGEBOLT, FLANGE
-
2090185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2128P-2530V-01-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
2228P-2510F-02-00 BALL JOINT SETBALL JOINT SET
-
2328P-2510H-02-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
2428P-2510G-01-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
2528P-2518E-10-00 SHAFTSHAFT
-
263B4-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
273B4-2512G-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
2828P-2512G-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
293B4-2512J-00-00 SNAP RINGSNAP RING
-
303B4-2512H-00-00 CIRCLIPCIRCLIP
-
313B4-25182-00-00 CIRCLIPCIRCLIP
-
3228P-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
333B4-2536E-00-00 CLIP, SPRINGCLIP, SPRING
-
3490179-20016-00 NUTNUT
-
351HP-F512A-00-00 CAP, WHEELCAP, WHEEL
