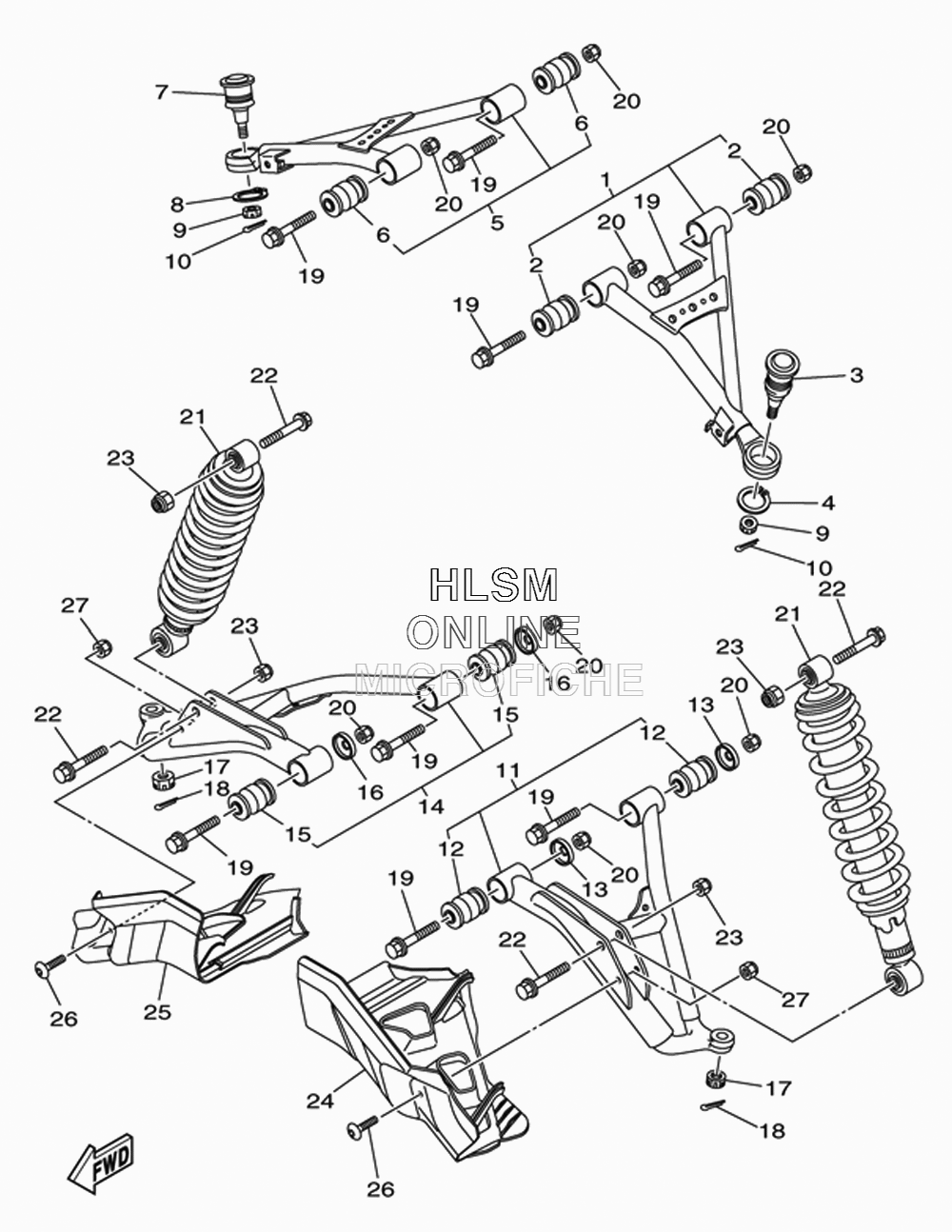

SUSPENSION - FRONT WHEEL для Yamaha GRIZZLY 700 4WD HUNTER - 2012 года выпуска`
-
№АртикулНазвание
-
11HP-F3540-00-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
21HP-F3526-00-00 ...BUSH...BUSH
-
35LP-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
499009-30400-00 ...CIRCLIP...CIRCLIP
-
51HP-F3550-00-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
61HP-F3526-00-00 ...BUSH...BUSH
-
75LP-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
899009-30400-00 ...CIRCLIP...CIRCLIP
-
990171-10001-00 NUT, CASTLENUT, CASTLE
-
1091401-20020-00 PIN, COTTERPIN, COTTER
-
111HP-F3570-00-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
121HP-F3526-00-00 ...BUSH...BUSH
-
135KM-22149-10-00 WASHERWASHER
-
141HP-F3580-00-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
151HP-F3526-00-00 ...BUSH...BUSH
-
165KM-22149-10-00 WASHERWASHER
-
1790171-12001-00 NUT, CASTLENUT, CASTLE
-
1891490-25020-00 PIN. COTTERPIN. COTTER
-
1990105-10222-00 BOLT, FLANGEBOLT, FLANGE
-
2090185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
211HP-F3350-00-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
2290105-10131-00 BOLT, FLANGEBOLT, FLANGE
-
2390185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
241HP-F3123-00-00 COVER, UNDER 1COVER, UNDER 1
-
251HP-F3133-00-00 COVER, LOWER 2COVER, LOWER 2
-
2690111-06814-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
2795702-06300-00 NUT, NYLONNUT, NYLON
