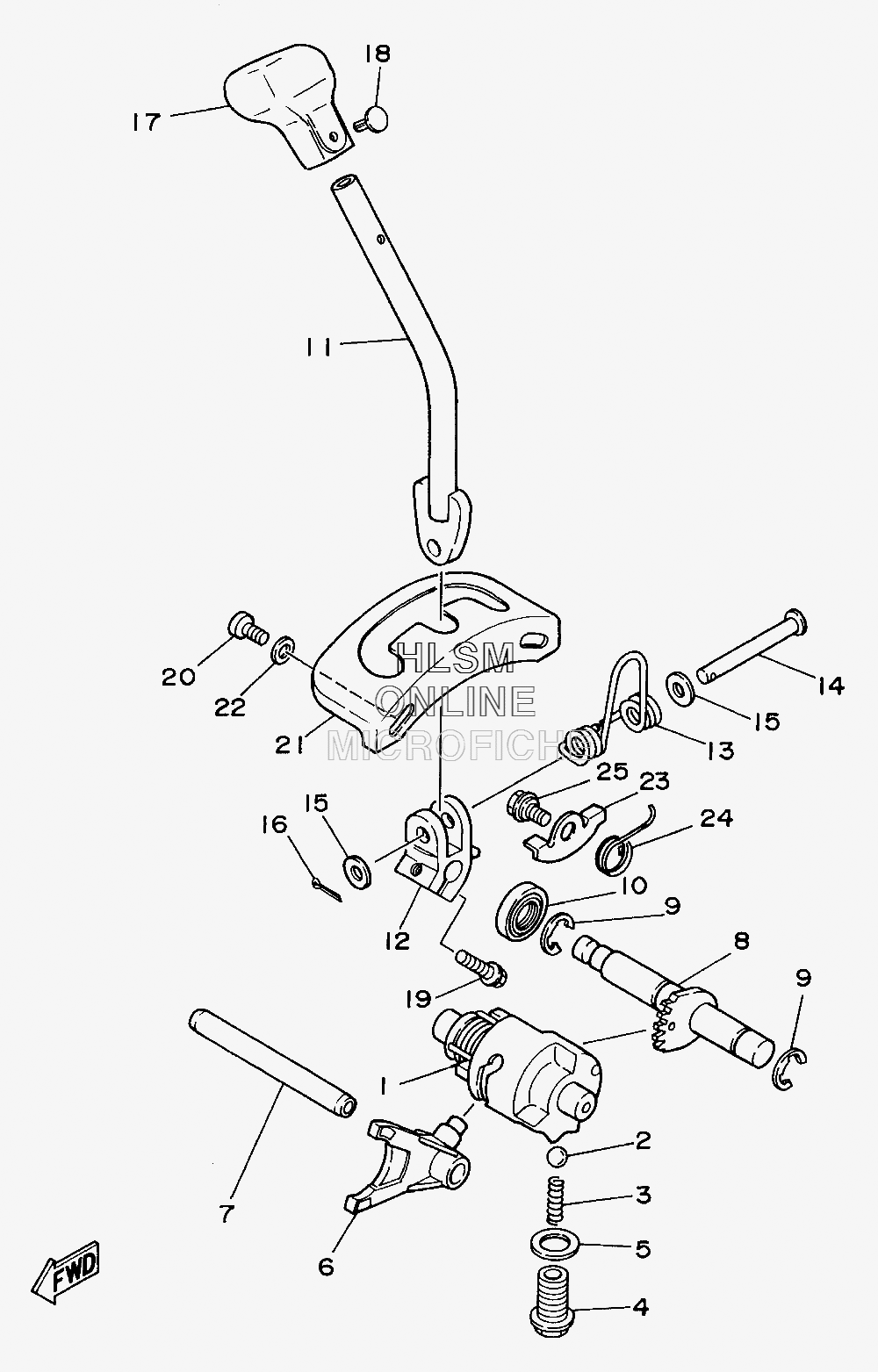

SHIFT CAM W/ FORK для Yamaha GRIZZLY 125 - 2012 года выпуска`
-
№АртикулНазвание
-
13FA-18540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
293503-08007-00 BALL 3/8BALL 3/8
-
390501-10353-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
490105-14003-00 BOLT, FLANGEBOLT, FLANGE
-
590430-14194-00 GASKETGASKET
-
64GB-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
71HX-18535-00-00 BAR, SHIFT FORK GUIDE 2BAR, SHIFT FORK GUIDE 2
-
83FA-18101-01-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
999001-12600-00 CIRCLIP, E-TYPECIRCLIP, E-TYPE
-
1093102-14209-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
113FA-18152-00-00 LEVER, SHIFT 4LEVER, SHIFT 4
-
123FA-18164-00-00 BOSS, SHIFTBOSS, SHIFT
-
1390508-29760-00 SPRING, TORSIONSPRING, TORSION
-
1491701-08058-00 PINPIN
-
1592902-08600-00 WASHER, PLATEWASHER, PLATE
-
1691401-25015-00 PIN, COTTERPIN, COTTER
-
173FA-18174-00-00 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
1890269-05055-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
1995822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2091312-06016-00 BOLTBOLT
-
213FA-18128-00-00 BRACKETBRACKET
-
2292902-06600-00 WASHER, PLATEWASHER, PLATE
-
233FA-18191-00-00 LEVERLEVER
-
2490508-12761-00 SPRING, TORSIONSPRING, TORSION
-
2590109-06189-00 BOLTBOLT
