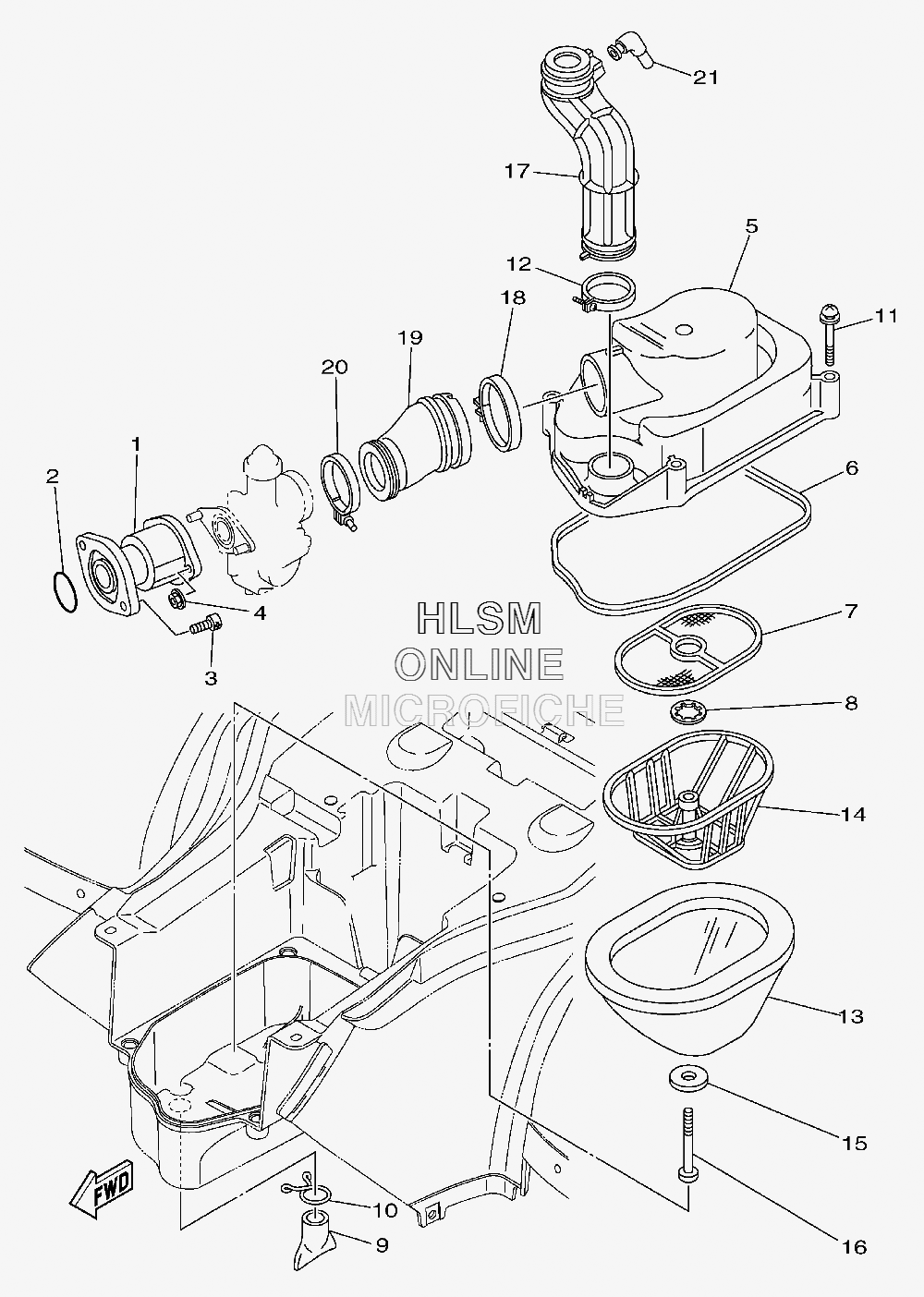

AIR CLEANER W/ INTAKE для Yamaha GRIZZLY 125 - 2012 года выпуска`
-
№АртикулНазвание
-
13FA-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
293210-30611-00 O-RINGO-RING
-
391312-06020-00 BOLTBOLT
-
495702-06500-00 NUT, FLANGENUT, FLANGE
-
53FA-14412-01-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
636F-14452-00-00 SEALSEAL
-
73FA-14472-00-00 PLATE, ELEMENTPLATE, ELEMENT
-
83FA-14424-00-00 CLIP, CAP FITTINGCLIP, CAP FITTING
-
959V-14457-00-00 SEALSEAL
-
1090467-220A1-00 CLIPCLIP
-
1190159-05045-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
1290450-45075-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
132XJ-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
142XJ-14458-00-00 GUIDEGUIDE
-
1590209-06096-00 WASHER, SPEC'L SHAPEWASHER, SPEC'L SHAPE
-
1698502-06060-00 SCREW, PAN HEADSCREW, PAN HEAD
-
173FA-14437-00-00 DUCTDUCT
-
1890460-58015-00 CLAMP, HOSECLAMP, HOSE
-
193FA-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
2090450-45075-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
212NL-14419-00-00 PIPEPIPE
