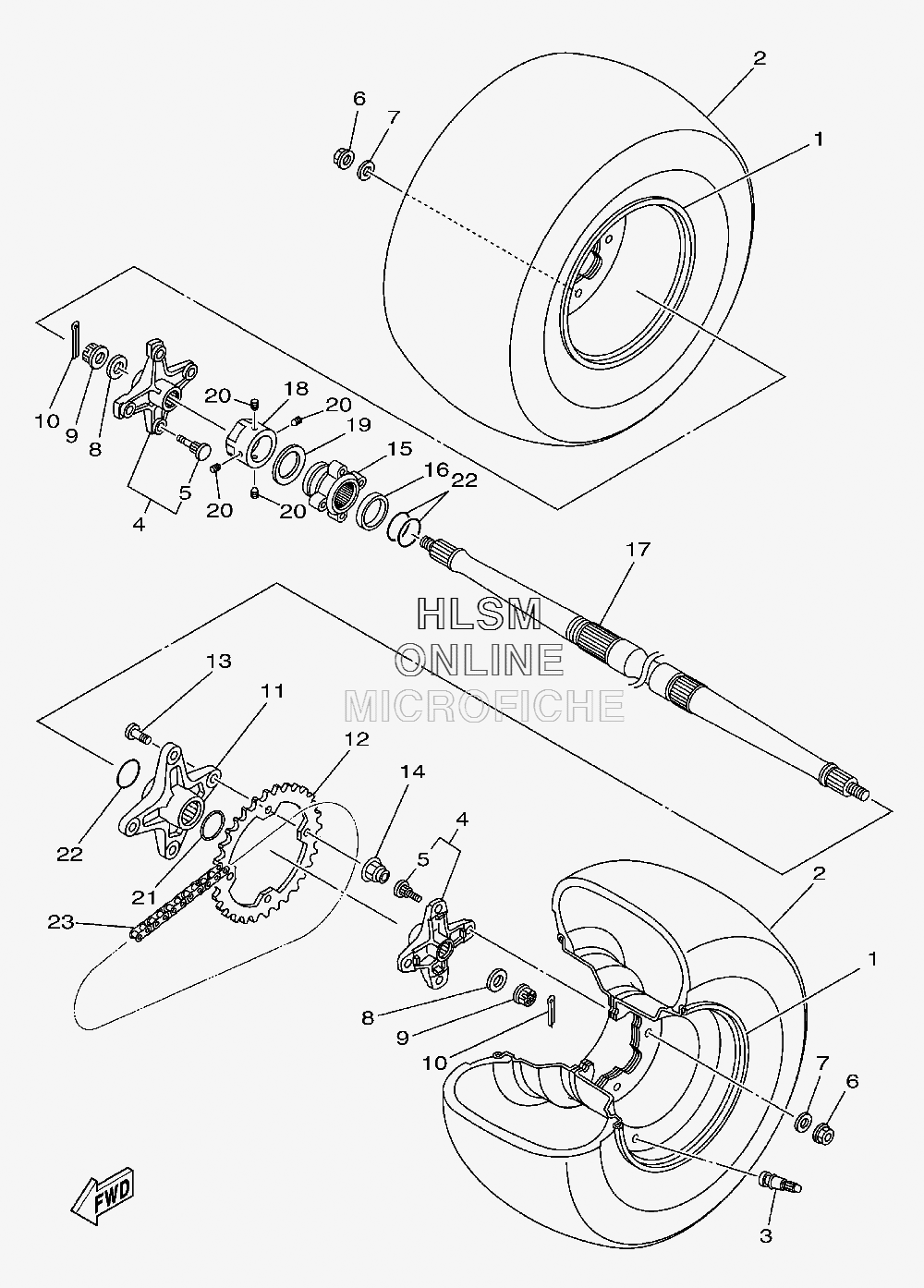

WHEEL - REAR W/ AXLE ASSY для Yamaha YFZ 450X SPECIAL EDITION - 2011 года выпуска`
-
№АртикулНазвание
-
11S3-25390-11-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
294110-09025-00 TIRE (AT20X10R9 KT356 TL(N))TIRE (AT20X10R9 KT356 TL(N))
-
393900-00022-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
41S3-25383-20-00 COLLAR, WHEELCOLLAR, WHEEL
-
590114-10013-00 BOLT, SERRATIONBOLT, SERRATION
-
695702-10500-00 NUT, FLANGENUT, FLANGE
-
792902-10200-00 WASHERWASHER
-
890201-16023-00 WASHER, PLATEWASHER, PLATE
-
990171-16002-00 NUT, CASTLENUT, CASTLE
-
1090252-03001-00 PIN, COTTERPIN, COTTER
-
1118P-25386-00-00 COLLAR, SPROCKET AXLECOLLAR, SPROCKET AXLE
-
125TG-25438-10-00 SPROCKET, DRIVEN (38T)SPROCKET, DRIVEN (38T)
-
1390109-10013-00 BOLTBOLT
-
1490185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1518P-25712-00-00 BRACKET, DISCBRACKET, DISC
-
1690387-40001-00 COLLARCOLLAR
-
1746D-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
1890179-38001-00 NUTNUT
-
1990208-39001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
2090113-06055-00 BOLT, SETBOLT, SET
-
2118P-25415-00-00 CIRCLIPCIRCLIP
-
2293210-37003-00 O-RINGO-RING
-
2394582-33098-00 CHAIN (DID520MXV 98LE)CHAIN (DID520MXV 98LE)
