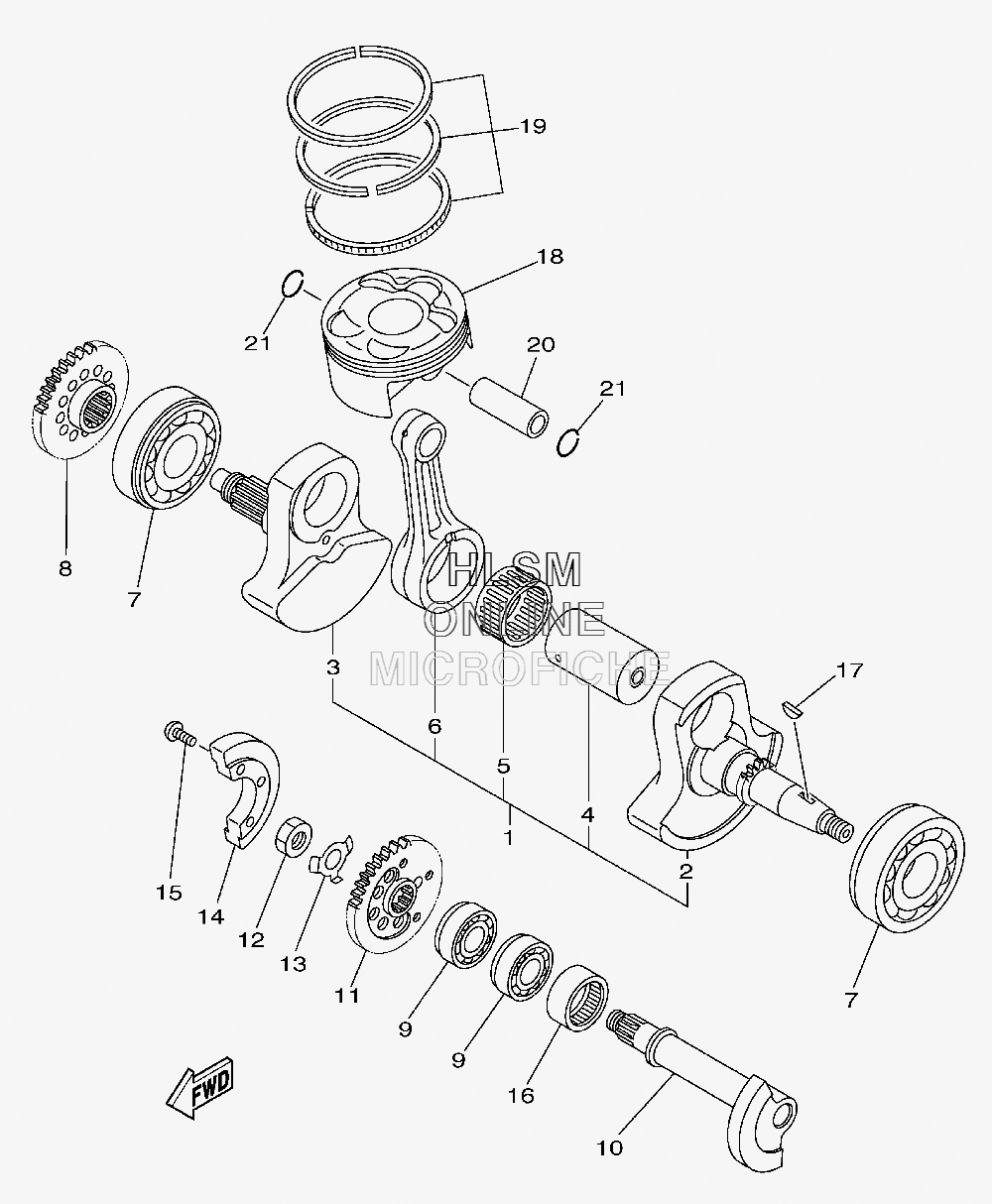

CRANKSHAFT - PISTON для Yamaha YFZ 450X SPECIAL EDITION - 2011 года выпуска`
-
№АртикулНазвание
-
118P-11400-01-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
218P-11412-00-00 CRANK 1CRANK 1
-
318P-11422-00-00 CRANK 2CRANK 2
-
418P-11681-01-00 PIN, CRANK 1PIN, CRANK 1
-
593310-73606-00 BEARINGBEARING
-
618P-11651-00-00 ROD, CONNECTINGROD, CONNECTING
-
793306-30644-00 BEARINGBEARING
-
818P-11536-00-00 GEAR, DRIVEGEAR, DRIVE
-
993306-20353-00 BEARINGBEARING
-
1018P-11455-00-00 SHAFT 1SHAFT 1
-
1118P-11531-00-00 GEAR, BALANCE WEIGHTGEAR, BALANCE WEIGHT
-
1290170-14171-00 NUTNUT
-
1390215-14287-00 WASHER, LOCKWASHER, LOCK
-
1418P-11454-00-00 WEIGHT 1WEIGHT 1
-
1590149-06069-00 SCREWSCREW
-
1693311-62574-00 BEARINGBEARING
-
1790280-03006-00 KEY, WOODRUFFKEY, WOODRUFF
-
185TG-11631-11-00 PISTON (STD)PISTON (STD)
-
195TG-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
205TG-11633-10-00 PIN, PISTONPIN, PISTON
-
2193450-22027-00 CIRCLIPCIRCLIP
