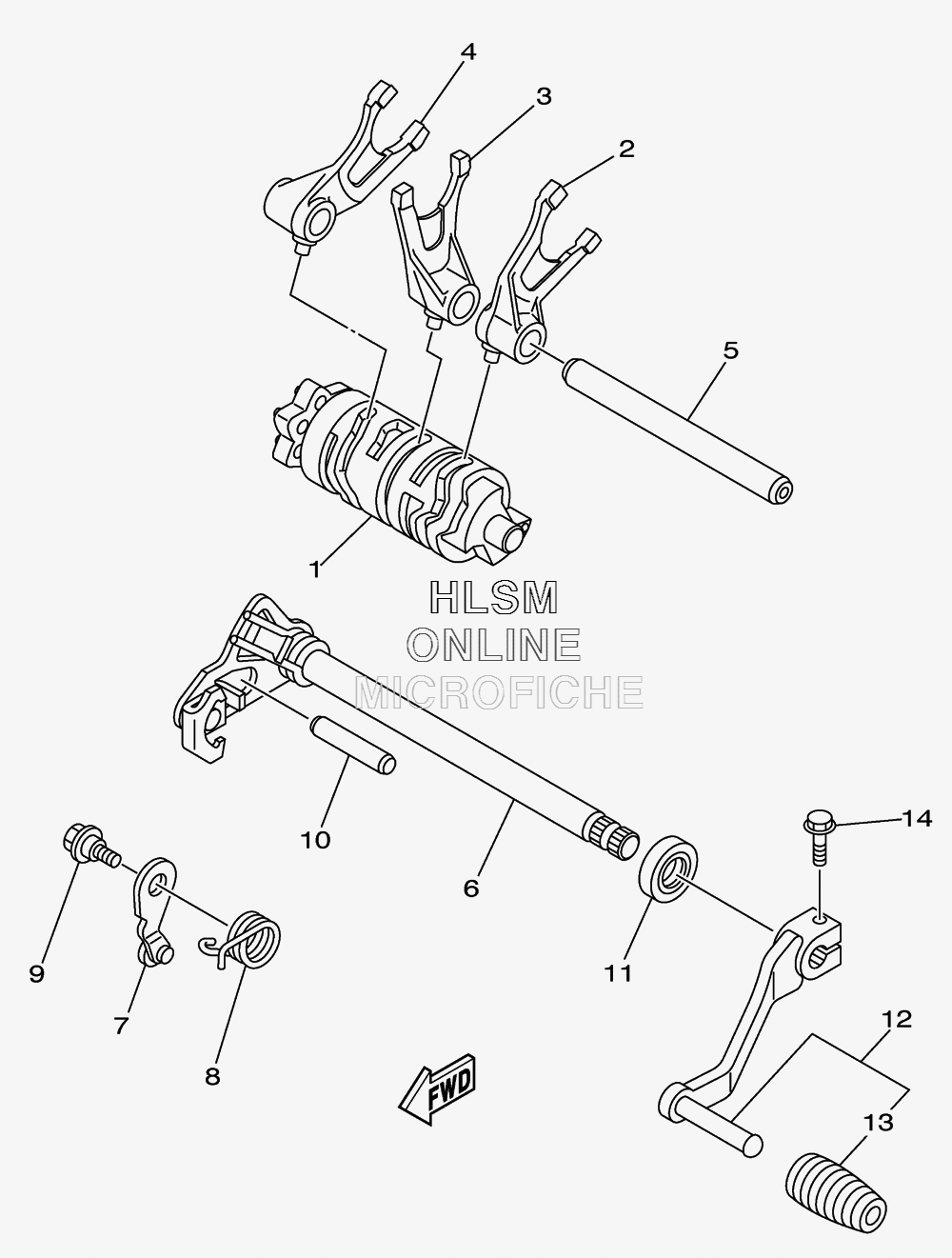

SHIFT CAM W/ FORK для Yamaha RAPTOR 250 - 2011 года выпуска`
-
№АртикулНазвание
-
11S4-18540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
24D3-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
34D3-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
44D3-18513-00-00 FORK, SHIFT 3FORK, SHIFT 3
-
54GY-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
64D3-18101-00-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
74TP-18140-00-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
890508-26020-00 SPRING, TORSIONSPRING, TORSION
-
990109-06189-00 BOLTBOLT
-
1093608-43228-00 PIN, DOWELPIN, DOWEL
-
1193102-14209-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
124D3-18110-10-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
135YT-18113-00-00 COVER, SHIFT PEDALCOVER, SHIFT PEDAL
-
1495812-06020-00 BOLT, FLANGEBOLT, FLANGE
