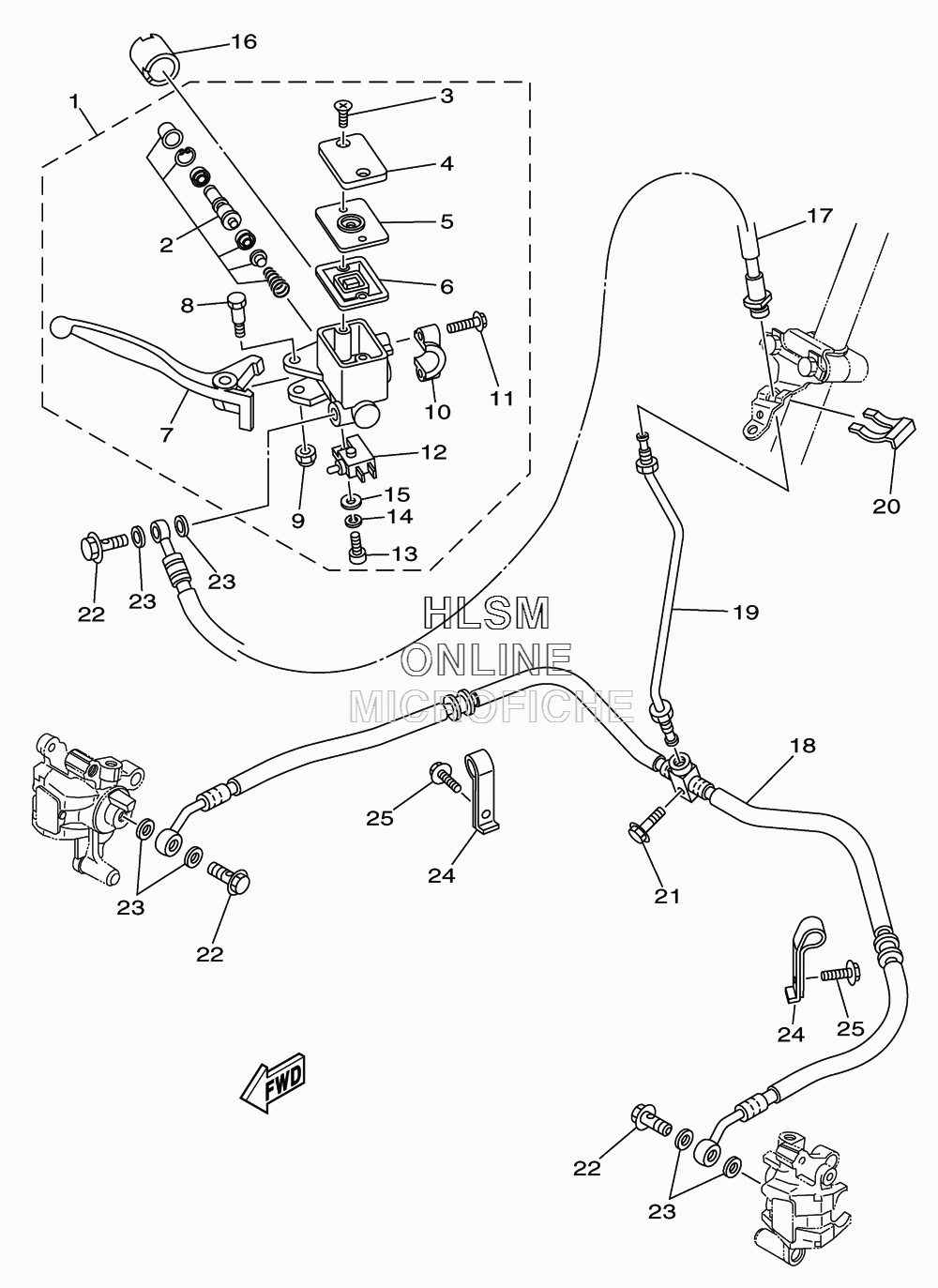

BRAKE - FRONT MASTER CYLINDER для Yamaha RAPTOR 250 - 2011 года выпуска`
-
№АртикулНазвание
-
14D3-2583T-00-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
25D3-W0041-00-00 CYLINDER KIT, MASTERCYLINDER KIT, MASTER
-
34NK-2589H-00-00 SCREWSCREW
-
45YU-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
53B4-2585B-00-00 PLATE, DIAPHRAGMPLATE, DIAPHRAGM
-
64TT-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
74D3-83922-00-00 LEVER 2LEVER 2
-
83B4-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
995604-06100-00 NUT, UNUT, U
-
105MV-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
115MV-25833-00-00 BOLT, FITTINGBOLT, FITTING
-
125D3-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1398502-04014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1492902-04100-00 WASHER, SPRINGWASHER, SPRING
-
1592902-04600-00 WASHER, PLATEWASHER, PLATE
-
161UY-26259-00-00 COLLARCOLLAR
-
174D3-25872-01-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
184D3-25873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
194D3-25871-00-00 PIPE, BRAKEPIPE, BRAKE
-
202GU-25866-00-00 CIRCLIPCIRCLIP
-
2195822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2290401-10015-00 BOLT, UNIONBOLT, UNION
-
2390201-10118-00 WASHER, PLATEWASHER, PLATE
-
244D3-25886-10-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2595802-06016-00 BOLT, FLANGEBOLT, FLANGE
