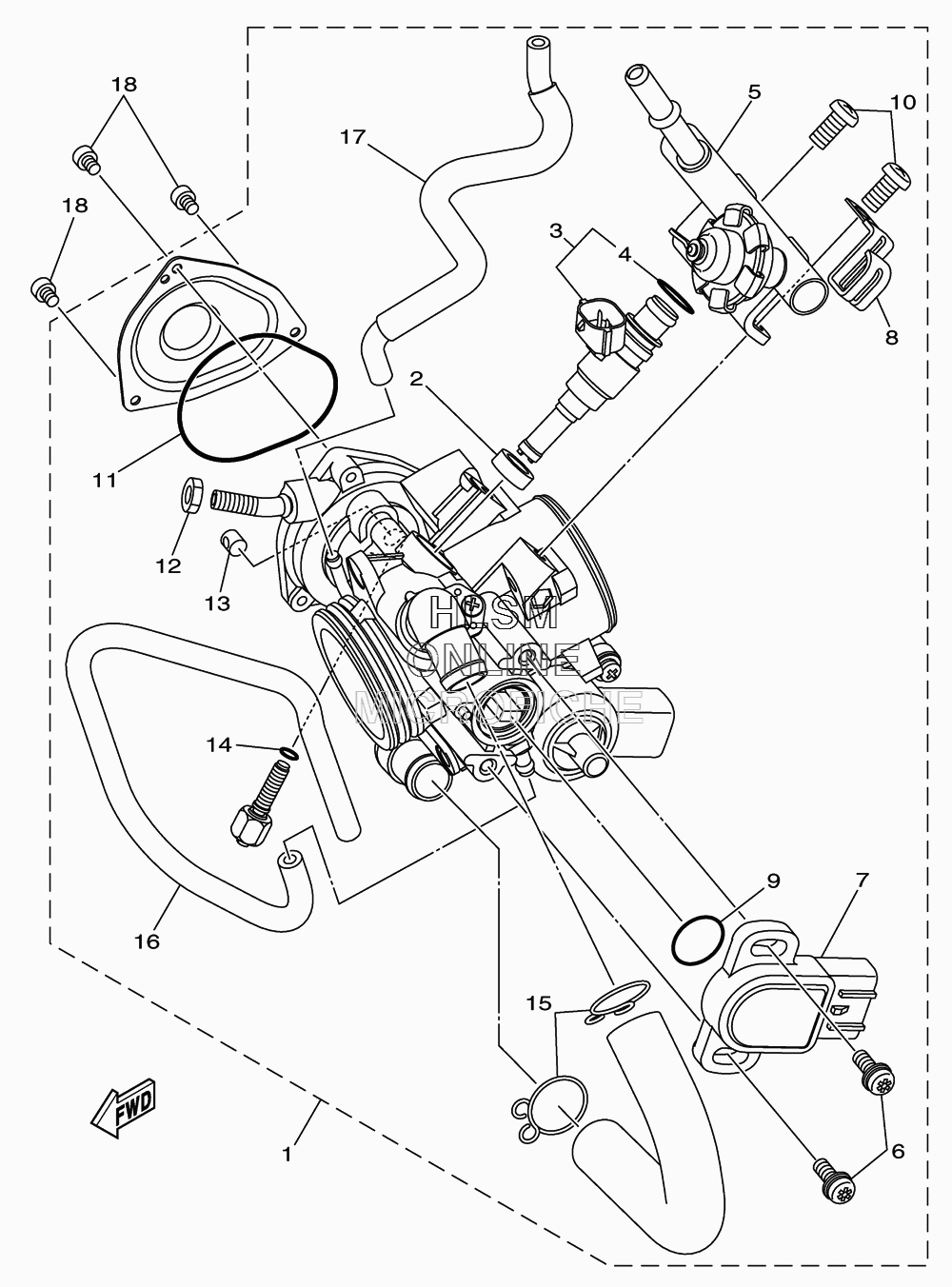

THROTTLE BODY ASSY. для Yamaha YFZ450R SPECIAL EDITION - 2010 года выпуска`
-
№АртикулНазвание
-
118P-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
28FP-13556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
33B4-13761-00-00 INJECTORINJECTOR
-
45PS-14147-00-00 O-RINGO-RING
-
518P-13160-00-00 DELIVERY PIPE ASSY 1DELIVERY PIPE ASSY 1
-
68CC-14216-10-00 SCREWSCREW
-
73B4-85885-00-00 THROTTLE SENSOR ASSYTHROTTLE SENSOR ASSY
-
85JW-14945-00-00 PLATEPLATE
-
95YP-14562-00-00 O-RINGO-RING
-
1098507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
115LP-14147-00-00 O-RINGO-RING
-
121S3-14161-00-00 NUT, CABLE ADJUSTINGNUT, CABLE ADJUSTING
-
131UY-14155-00-00 GUIDE, CABLEGUIDE, CABLE
-
142H0-14147-00-00 O-RINGO-RING
-
158FP-14137-00-00 CLIPCLIP
-
1618P-13543-00-00 HOSE, AIRHOSE, AIR
-
1718P-14348-00-00 PIPE 1PIPE 1
-
1891312-04006-00 BOLTBOLT
