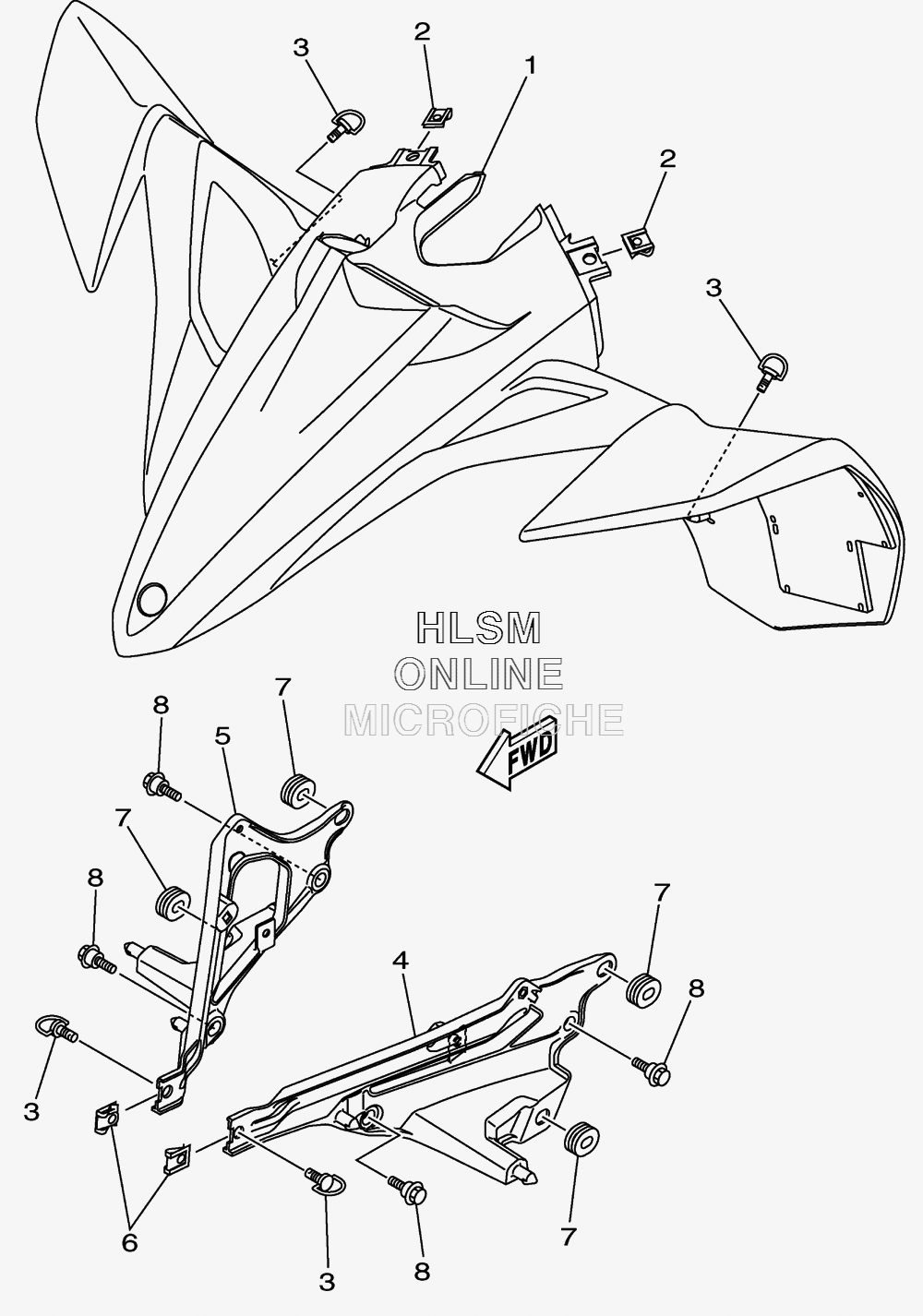

FENDER - FRONT для Yamaha YFZ450R SPECIAL EDITION - 2010 года выпуска
-
№АртикулНазвание
-
118P-W2151-30-00 FRONT FENDER COMP.FRONT FENDER COMP.
-
24XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
33FV-28386-00-00 HEAD (SPECIAL FASTENER)HEAD (SPECIAL FASTENER)
-
418P-21513-00-00 STAY, FENDER 1STAY, FENDER 1
-
518P-21514-00-00 STAY, FENDER 2STAY, FENDER 2
-
64XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
790480-01559-00 GROMMETGROMMET
-
890109-06199-00 BOLTBOLT
