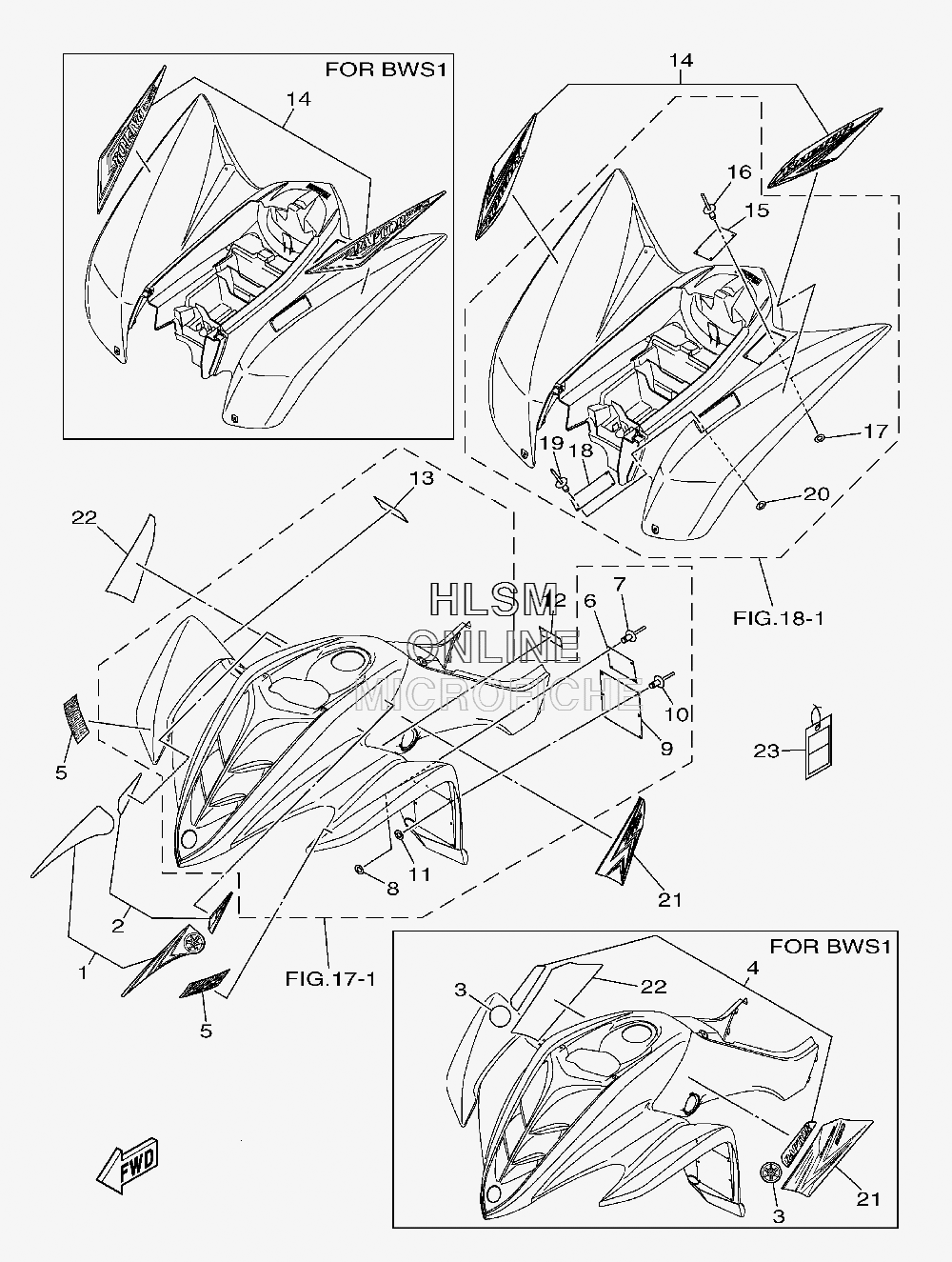

EMBLEMS для Yamaha RAPTOR 350 - 2010 года выпуска`
-
№АртикулНазвание
-
35FK-2175C-10-00 TUNING FORK MARK (FOR BWS1)TUNING FORK MARK (FOR BWS1)
-
41BS-2159A-10-00 GRAPHIC SET 1 (FOR BWS1)GRAPHIC SET 1 (FOR BWS1)
-
54ES-2153E-20-00 EMBLEM, YAMAHA (FOR BWS1)EMBLEM, YAMAHA (FOR BWS1)
-
64D3-2816L-00-00 LABEL, WARNING AGE ENGLISHLABEL, WARNING AGE ENGLISH
-
790267-32004-00 RIVET, BLINDRIVET, BLIND
-
890201-03008-00 WASHER, PLATEWASHER, PLATE
-
95FE-21568-01-00 LABEL, WARNING ENGLISHLABEL, WARNING ENGLISH
-
1090267-32004-00 RIVET, BLINDRIVET, BLIND
-
1190201-03008-00 WASHER, PLATEWASHER, PLATE
-
125YT-2151E-30-00 LABEL 2LABEL 2
-
1343P-2817J-00-00 PLATE, ANSI SVIA ENGLISHPLATE, ANSI SVIA ENGLISH
-
141BS-2165A-20-00 GRAPHIC SET,REAR FENDER (FOR BWS1)GRAPHIC SET,REAR FENDER (FOR BWS1)
-
155FE-2151H-01-00 LABEL 5LABEL 5
-
1690267-32004-00 RIVET, BLINDRIVET, BLIND
-
1790201-03008-00 WASHER, PLATEWASHER, PLATE
-
185YT-2816M-U0-00 LABEL, WARNING TIRE AND LOADLABEL, WARNING TIRE AND LOAD
-
1990267-32004-00 RIVET, BLINDRIVET, BLIND
-
2090201-03008-00 WASHER, PLATEWASHER, PLATE
-
211BS-2173E-20-00 GRAPHIC, 1 (FOR BWS1)GRAPHIC, 1 (FOR BWS1)
-
221BS-2173F-20-00 GRAPHIC, 2 (FOR BWS1)GRAPHIC, 2 (FOR BWS1)
-
235LP-2819R-10-00 TAG, WARNINGTAG, WARNING
