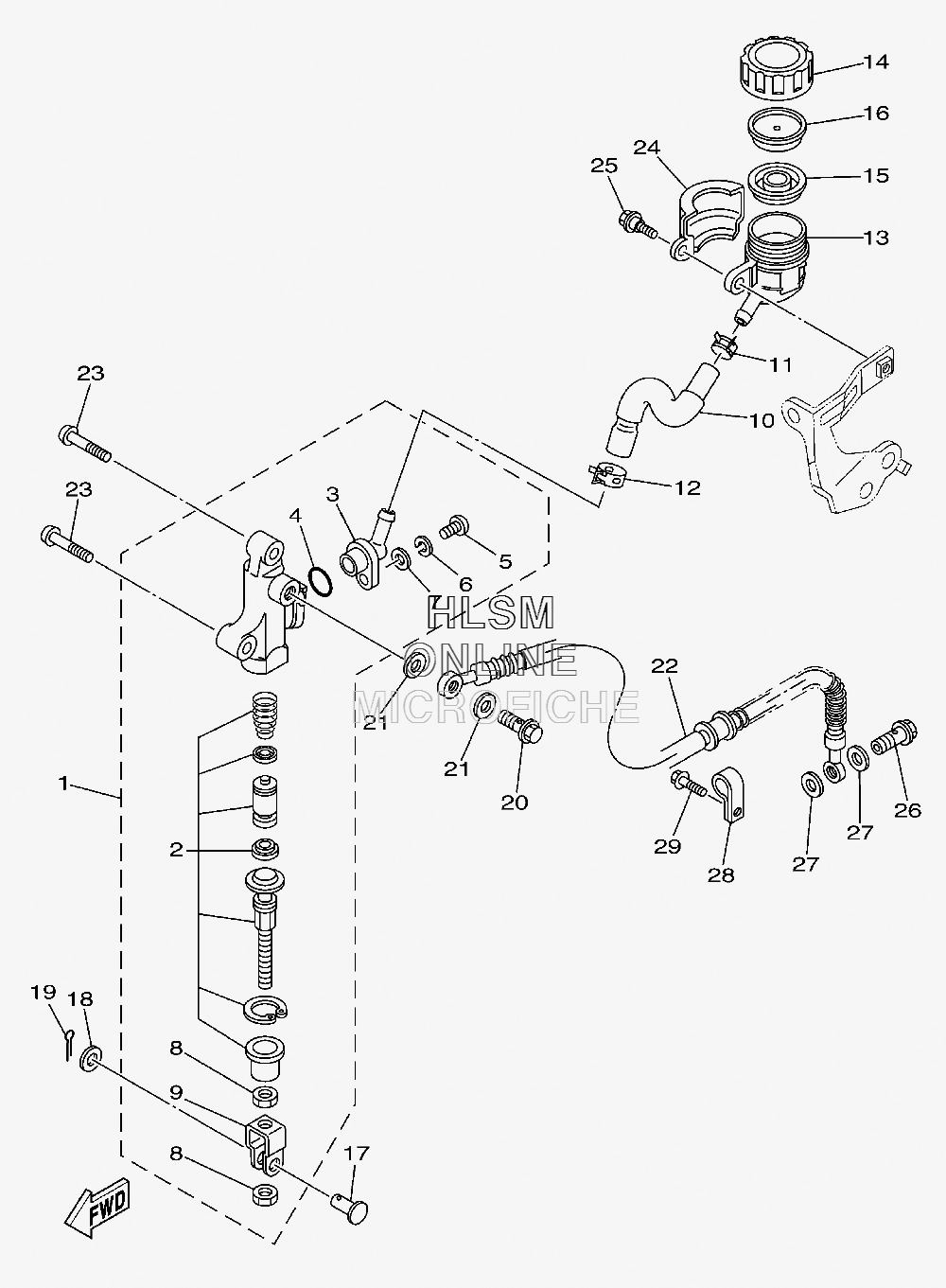

BRAKE - REAR MASTER CYLINDER для Yamaha RAPTOR 350 - 2010 года выпуска`
-
№АртикулНазвание
-
15YT-2583V-00-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
25FK-W0042-50-00 CYLINDER KIT, MASTERCYLINDER KIT, MASTER
-
347X-2582A-50-00 JOINTJOINT
-
493210-15620-00 O-RINGO-RING
-
598506-04012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
692906-04100-00 WASHER, SPRINGWASHER, SPRING
-
792906-04600-00 WASHER (JF2)WASHER (JF2)
-
84SS-27218-00-00 NUT,HEX SMALLNUT,HEX SMALL
-
92YK-27222-00-00 JOINTJOINT
-
105YT-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
1190467-11044-00 CLIPCLIP
-
1290467-140A6-00 CLIPCLIP
-
134EW-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
143XP-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
152VN-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
162VN-25855-00-00 BUSH,DIAPHRAGMBUSH,DIAPHRAGM
-
1790240-08005-00 PIN, CLEVISPIN, CLEVIS
-
1890201-08066-00 WASHER, PLATEWASHER, PLATE
-
1991401-16012-00 PIN, COTTERPIN, COTTER
-
2090401-10015-00 BOLT, UNIONBOLT, UNION
-
2190201-10118-00 WASHER, PLATEWASHER, PLATE
-
225YT-25874-10-00 HOSE, BRAKEHOSE, BRAKE
-
2392012-08030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
245YT-25888-00-00 COVER, RESERVOIR TANKCOVER, RESERVOIR TANK
-
2590109-06240-00 BOLTBOLT
-
2690401-10015-00 BOLT, UNIONBOLT, UNION
-
2790201-10118-00 WASHER, PLATEWASHER, PLATE
-
285YT-25876-10-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
2995802-06020-00 BOLT, FLANGEBOLT, FLANGE
