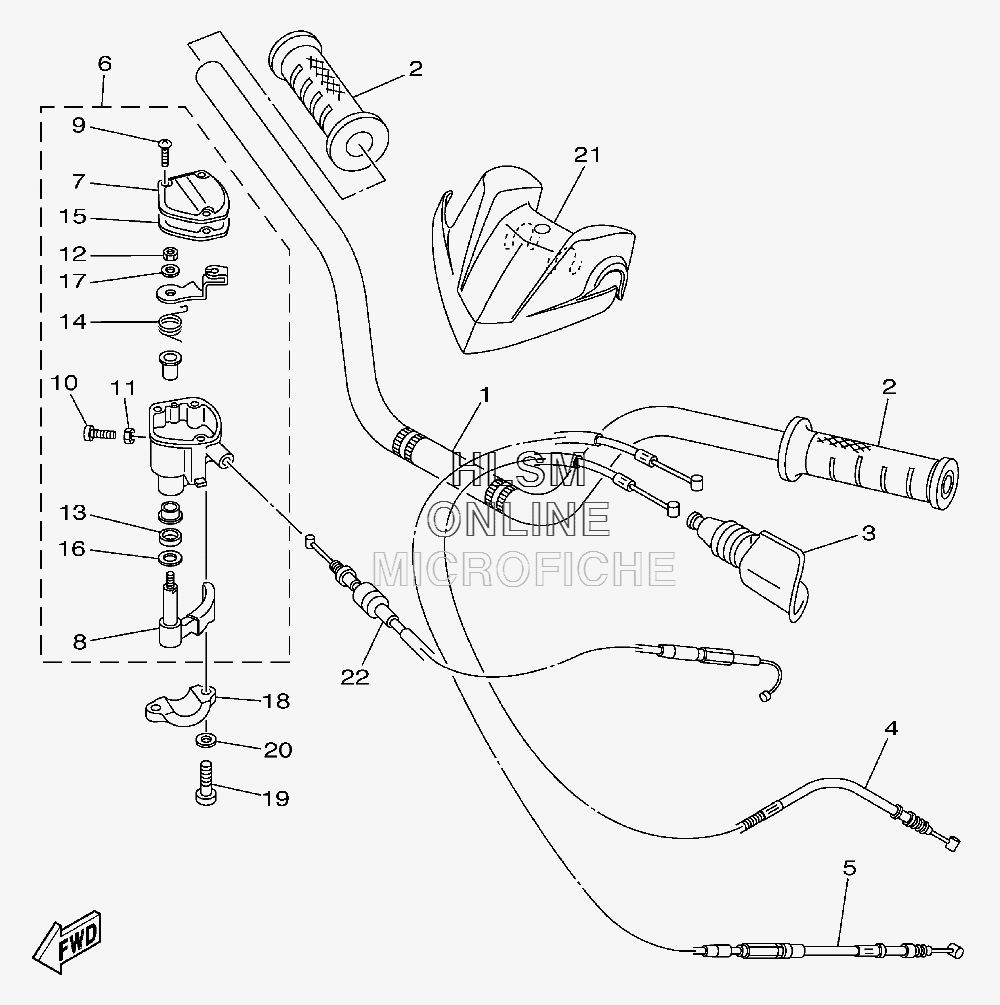

HANDLEBAR W/ CABLES для Yamaha RAPTOR 250 - 2010 года выпуска`
-
№АртикулНазвание
-
14D3-26111-00-00 HANDLEBARHANDLEBAR
-
25LP-26241-00-00 GRIPGRIP
-
331A-26372-00-00 COVER, HANDLE LEVER 1COVER, HANDLE LEVER 1
-
44D3-26335-00-00 CABLE, CLUTCHCABLE, CLUTCH
-
54D3-26341-00-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
64KB-26250-20-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
74KB-2628F-20-00 CAP, GEARCAP, GEAR
-
81NV-2625G-01-00 LEVER, THROTTLELEVER, THROTTLE
-
94KB-2632G-00-00 SCREWSCREW
-
104KB-26256-00-00 SCREW, GRIP ENDSCREW, GRIP END
-
1195607-05100-00 NUT, UNUT, U
-
124KB-26258-00-00 NUT, LOCKNUT, LOCK
-
1393104-09025-00 OIL SEALOIL SEAL
-
141NV-26304-00-00 SPRINGSPRING
-
154KB-2628G-00-00 GASKETGASKET
-
161NV-26129-00-00 WASHERWASHER
-
171NV-26398-00-00 WASHER, SPECIALWASHER, SPECIAL
-
181S3-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
1998502-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2092902-05600-00 WASHERWASHER
-
214D3-26124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
224D3-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
