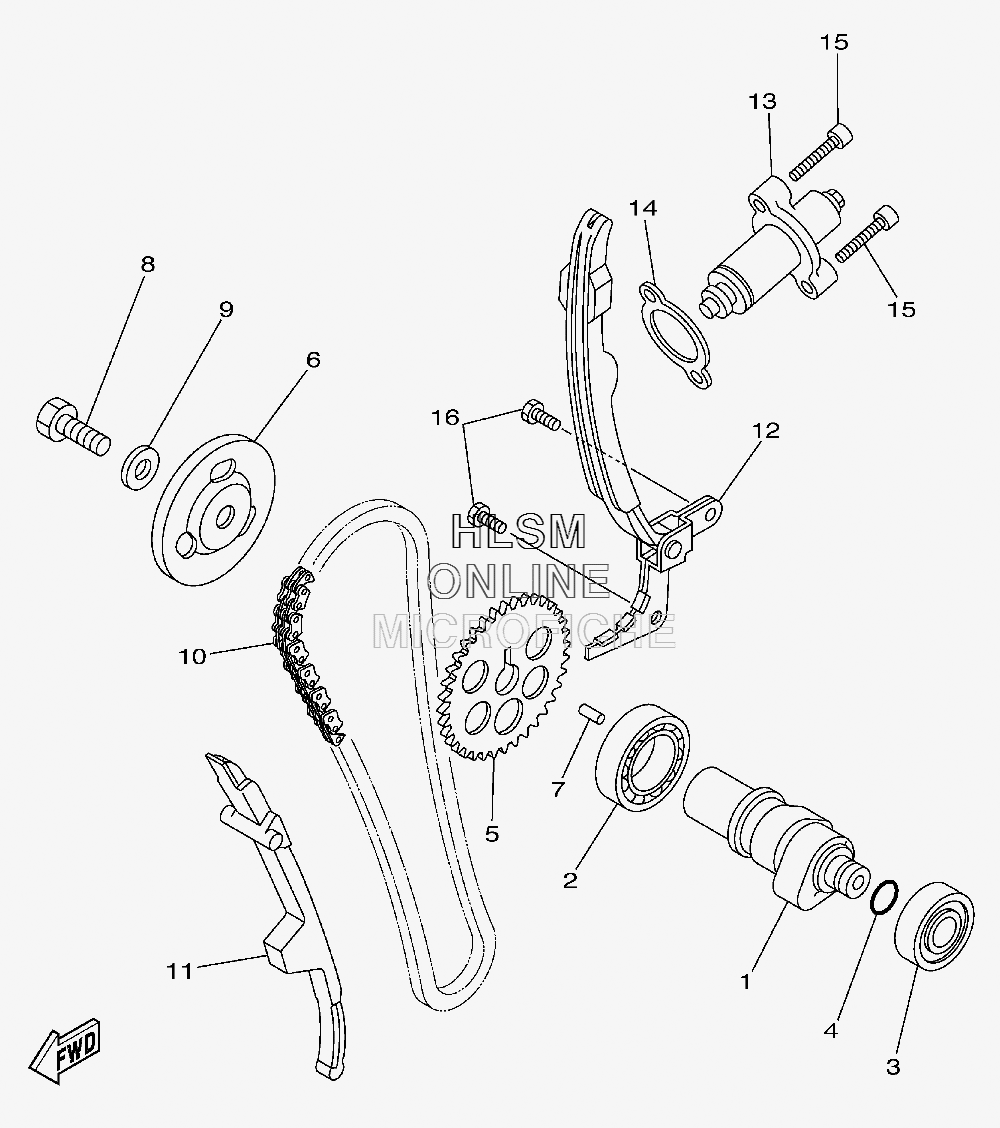

CAMSHAFT W/ CHAIN для Yamaha RAPTOR 250 - 2010 года выпуска`
-
№АртикулНазвание
-
11S4-12171-00-00 CAMSHAFT 1CAMSHAFT 1
-
293306-00518-00 BEARINGBEARING
-
393306-20204-00 BEARINGBEARING
-
493210-11453-00 O-RINGO-RING
-
55XT-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
64KB-11145-00-00 PLATE, BREATHER 2PLATE, BREATHER 2
-
793604-10011-00 PIN, DOWELPIN, DOWEL
-
890101-10016-00 BOLTBOLT
-
990201-10591-00 WASHER, PLATEWASHER, PLATE
-
1094582-19104-00 CHAIN (DID SCR-0404 SV 104LE)CHAIN (DID SCR-0404 SV 104LE)
-
115BP-12231-00-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
125XT-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
135XT-12210-00-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
144FM-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1591312-06025-00 BOLT (4MY)BOLT (4MY)
-
1690101-06043-00 BOLTBOLT
