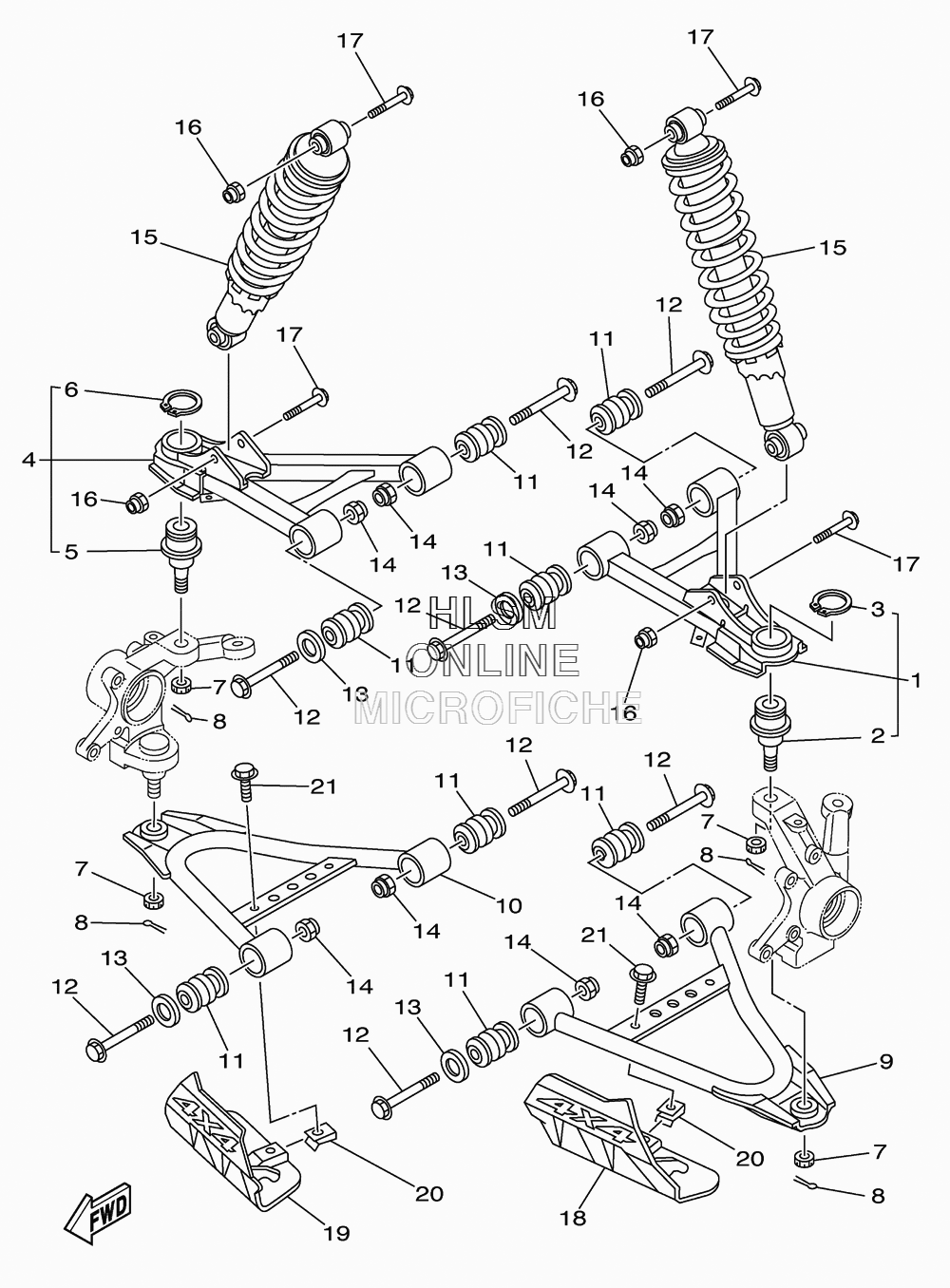

SUSPENSION - FRONT WHEEL для Yamaha GRIZZLY 450 4WD - 2010 года выпуска`
-
№АртикулНазвание
-
15ND-F3540-12-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
237S-23549-00-00 BALL JOINT 1BALL JOINT 1
-
399009-32400-00 CIRCLIP,S-TYPECIRCLIP,S-TYPE
-
45ND-F3550-12-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
537S-23549-00-00 BALL JOINT 1BALL JOINT 1
-
699009-32400-00 CIRCLIP,S-TYPECIRCLIP,S-TYPE
-
790171-12001-00 NUT, CASTLENUT, CASTLE
-
891402-25020-00 PIN, COTTERPIN, COTTER
-
91D9-F357A-00-00 ARM,FR. LOWER LEFT HANDARM,FR. LOWER LEFT HAND
-
101D9-F358A-00-00 ARM,FR. LOWER. RIGHT HANDARM,FR. LOWER. RIGHT HAND
-
112HR-23526-00-00 BUSHBUSH
-
1290105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
135KM-22149-10-00 WASHERWASHER
-
1490185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1517S-F3350-00-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
1690185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1790105-10841-00 BOLT, FLANGEBOLT, FLANGE
-
1817S-F3123-00-00 COVER, UNDER 1COVER, UNDER 1
-
1917S-F3133-00-00 COVER, LOWER 2COVER, LOWER 2
-
2090183-06053-00 NUT, SPRING (4ES)NUT, SPRING (4ES)
-
2195802-06012-00 BOLT, FLANGEBOLT, FLANGE
