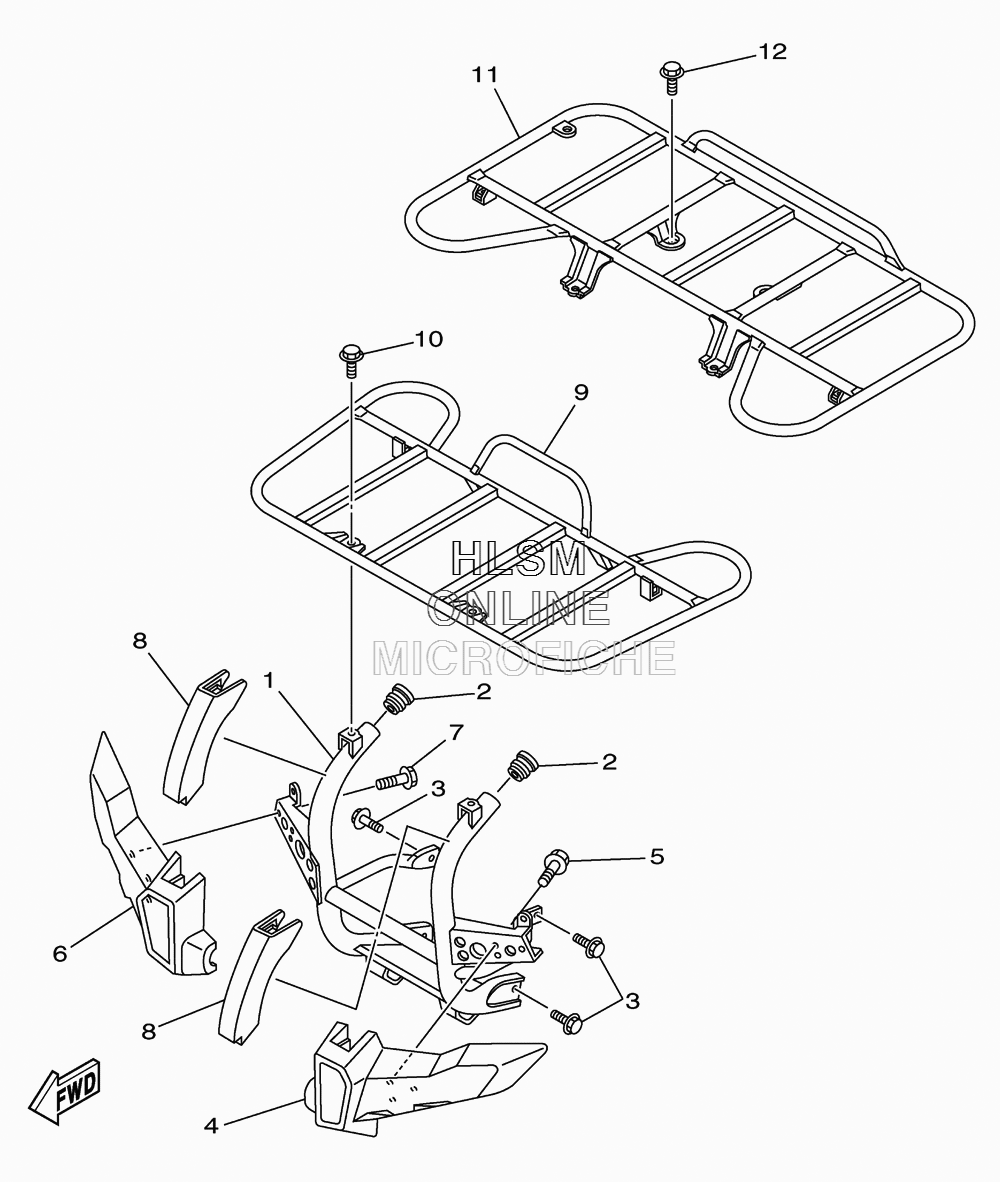

RACK AND BUMPER для Yamaha GRIZZLY 450 4WD - 2010 года выпуска`
-
№АртикулНазвание
-
137S-F845N-00-00 BAR, CARRY FRONTBAR, CARRY FRONT
-
290338-29800-00 PLUGPLUG
-
395812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
437S-F8415-00-00 DAMPER 1DAMPER 1
-
595812-06008-00 BOLT, FLANGEBOLT, FLANGE
-
637S-F8416-00-00 DAMPER 2DAMPER 2
-
795812-06008-00 BOLT, FLANGEBOLT, FLANGE
-
837S-F842N-00-00 COVER 2COVER 2
-
95ND-F4841-01-00 CARRIER, FRONTCARRIER, FRONT
-
1095812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
115ND-F4842-00-00 CARRIER, REARCARRIER, REAR
-
1295812-08012-00 BOLT, FLANGEBOLT, FLANGE
