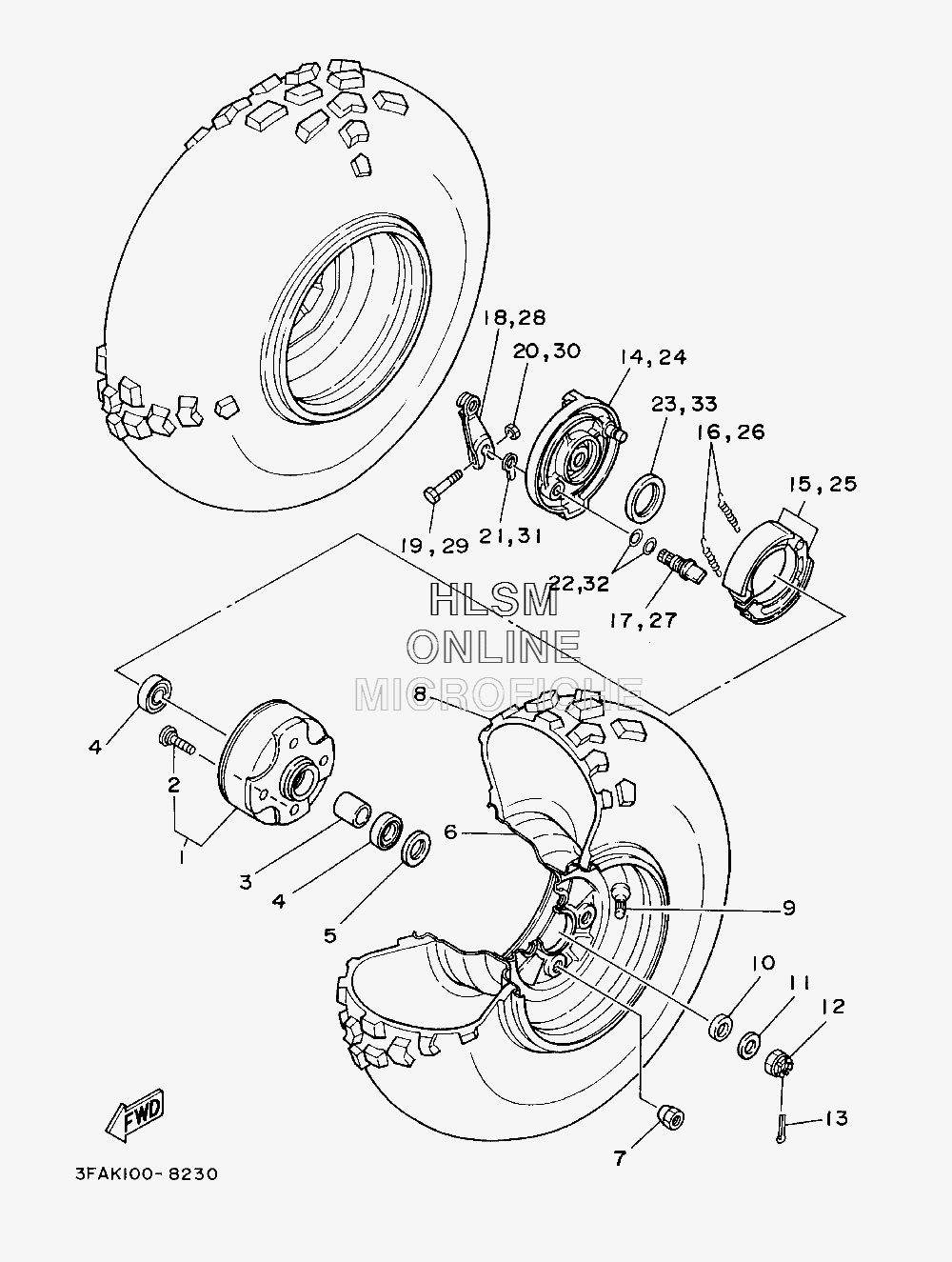

WHEEL - FRONT W/ BRAKE ASSY для Yamaha GRIZZLY 125 - 2010 года выпуска`
-
№АртикулНазвание
-
11C5-25111-00-00 HUB, FRONTHUB, FRONT
-
290114-10014-00 BOLT, SERRATIONBOLT, SERRATION
-
33FA-25117-00-00 SPACER, BEARINGSPACER, BEARING
-
493306-00308-00 BEARINGBEARING
-
593102-23275-00 OIL SEALOIL SEAL
-
63FA-25180-00-98 WHEEL COMP.WHEEL COMP.
-
790179-10022-00 NUTNUT
-
894107-08008-00 TIRE (AT20X7-8KT536A T/L N)TIRE (AT20X7-8KT536A T/L N)
-
993900-00030-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
1090387-175R2-00 COLLARCOLLAR
-
1190201-14586-00 WASHER, PLATEWASHER, PLATE
-
1290171-14002-00 NUT, CASTLENUT, CASTLE
-
1391401-30025-00 PIN, COTTERPIN, COTTER
-
143FA-25121-00-00 PLATE, BRAKE SHOE (LEFT)PLATE, BRAKE SHOE (LEFT)
-
154BE-W2536-00-00 BRAKE SHOE SETBRAKE SHOE SET
-
1690506-15260-00 SPRING, TENSIONSPRING, TENSION
-
175G3-25351-02-00 CAMSHAFTCAMSHAFT
-
183FA-25155-00-00 LEVER, CAMSHAFT 1 (LEFT)LEVER, CAMSHAFT 1 (LEFT)
-
1990101-06046-00 BOLTBOLT
-
2095302-06600-00 NUTNUT
-
2152H-2513A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
2293210-12327-00 O-RINGO-RING
-
2393102-40367-00 OIL SEALOIL SEAL
-
243FA-25169-00-00 PLATE, BRAKE SHOE 2 (RIGHT)PLATE, BRAKE SHOE 2 (RIGHT)
-
254BE-W2536-00-00 BRAKE SHOE SETBRAKE SHOE SET
-
2690506-15260-00 SPRING, TENSIONSPRING, TENSION
-
275G3-25351-02-00 CAMSHAFTCAMSHAFT
-
283FA-25156-00-00 LEVER, CAMSHAFT 2 (RIGHT)LEVER, CAMSHAFT 2 (RIGHT)
-
2990101-06046-00 BOLTBOLT
-
3095302-06600-00 NUTNUT
-
3152H-2513A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
3293210-12327-00 O-RINGO-RING
-
3393102-40367-00 OIL SEALOIL SEAL
