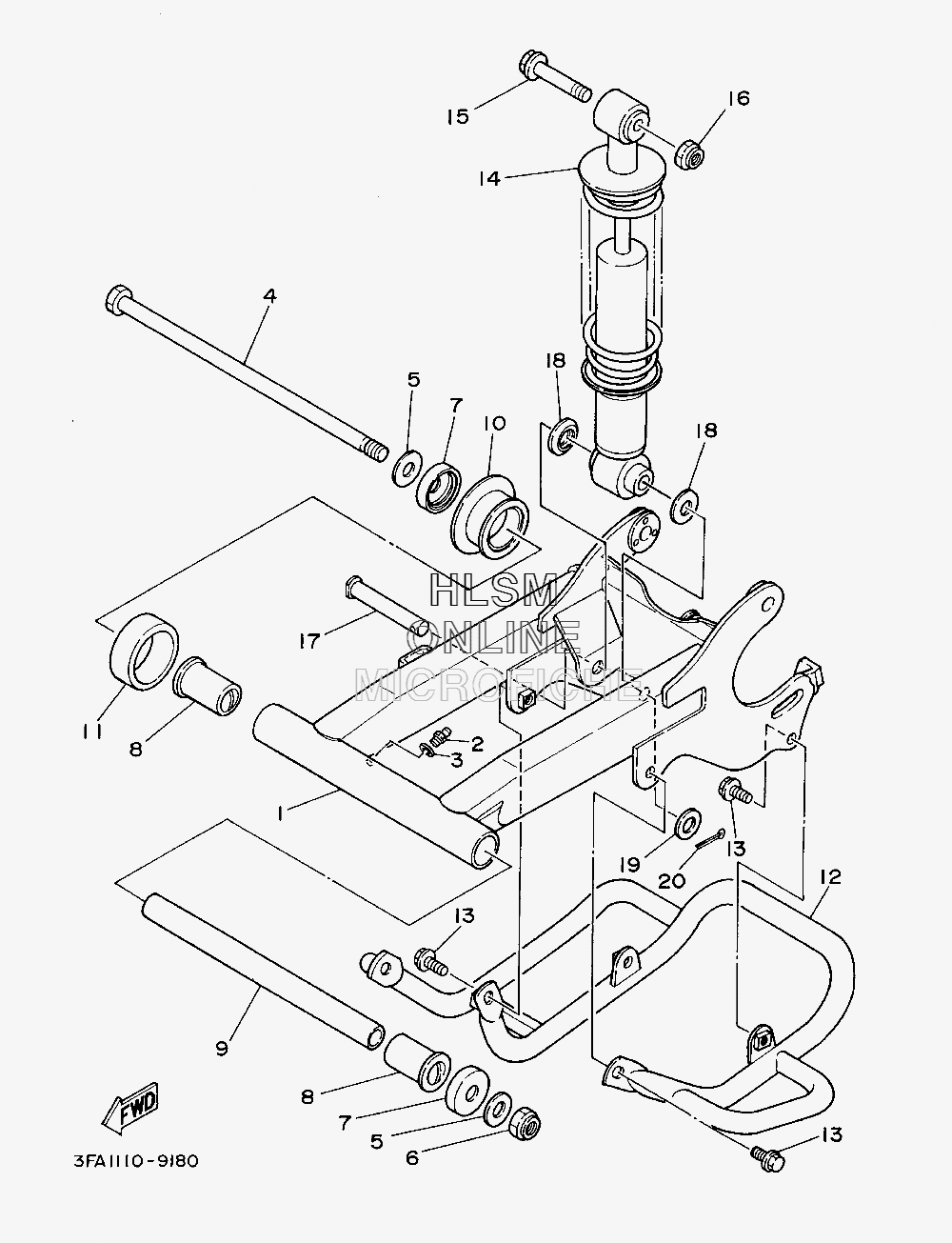

SUSPENSION - SWING ARM W/ REAR SHOCKS для Yamaha GRIZZLY 125 - 2010 года выпуска`
-
№АртикулНазвание
-
13FA-22110-00-33 REAR ARM COMP. (YAMAHA BLACK)REAR ARM COMP. (YAMAHA BLACK)
-
293700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
392902-06200-00 WASHERWASHER
-
42JX-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
590201-12045-00 WASHER, PLATEWASHER, PLATE
-
690185-12007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
7401-22128-01-00 COVER, THRUST 1COVER, THRUST 1
-
890386-18028-00 BUSHBUSH
-
93FA-22126-00-00 COLLAR, DISTANCECOLLAR, DISTANCE
-
102A6-22151-00-00 SEAL, GUARDSEAL, GUARD
-
112A6-22152-00-00 SEAL, GUARDSEAL, GUARD
-
123FA-2219X-00-00 COVERCOVER
-
1395822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
143FA-22210-00-33 SHOCK ABSORBER ASSY, REAR (YAMAHA BLACK)SHOCK ABSORBER ASSY, REAR (YAMAHA BLACK)
-
1590105-10131-00 BOLT, FLANGEBOLT, FLANGE
-
1690185-10022-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1790240-12092-00 PIN, CLEVISPIN, CLEVIS
-
181W1-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
1990201-12047-00 WASHER, PLATEWASHER, PLATE
-
2091401-30025-00 PIN, COTTERPIN, COTTER
