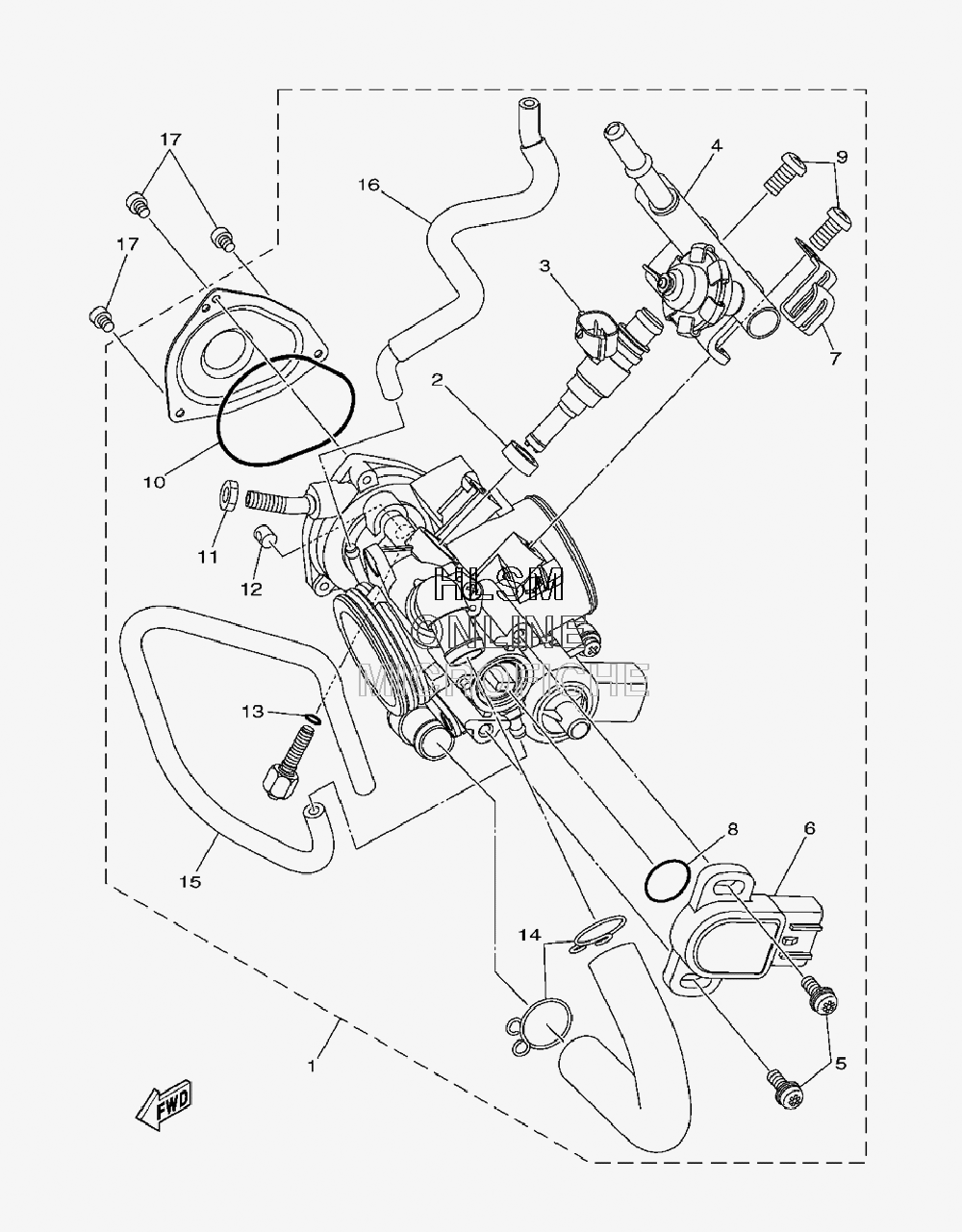

THROTTLE BODY ASSY. для Yamaha YFZ450R - 2009 года выпуска`
-
№АртикулНазвание
-
118P-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
28FP-13556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
33B4-13761-00-00 INJECTORINJECTOR
-
418P-13160-00-00 DELIVERY PIPE ASSY 1DELIVERY PIPE ASSY 1
-
58CC-14216-10-00 SCREWSCREW
-
63B4-85885-00-00 THROTTLE SENSOR ASSYTHROTTLE SENSOR ASSY
-
75JW-14945-00-00 PLATEPLATE
-
85YP-14562-00-00 O-RINGO-RING
-
998507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
105LP-14147-00-00 O-RINGO-RING
-
111S3-14161-00-00 NUT, CABLE ADJUSTINGNUT, CABLE ADJUSTING
-
121UY-14155-00-00 GUIDE, CABLEGUIDE, CABLE
-
132H0-14147-00-00 O-RINGO-RING
-
148FP-14137-00-00 CLIPCLIP
-
1518P-13543-00-00 HOSE, AIRHOSE, AIR
-
1618P-14348-00-00 PIPE 1PIPE 1
-
1791312-04006-00 BOLTBOLT
