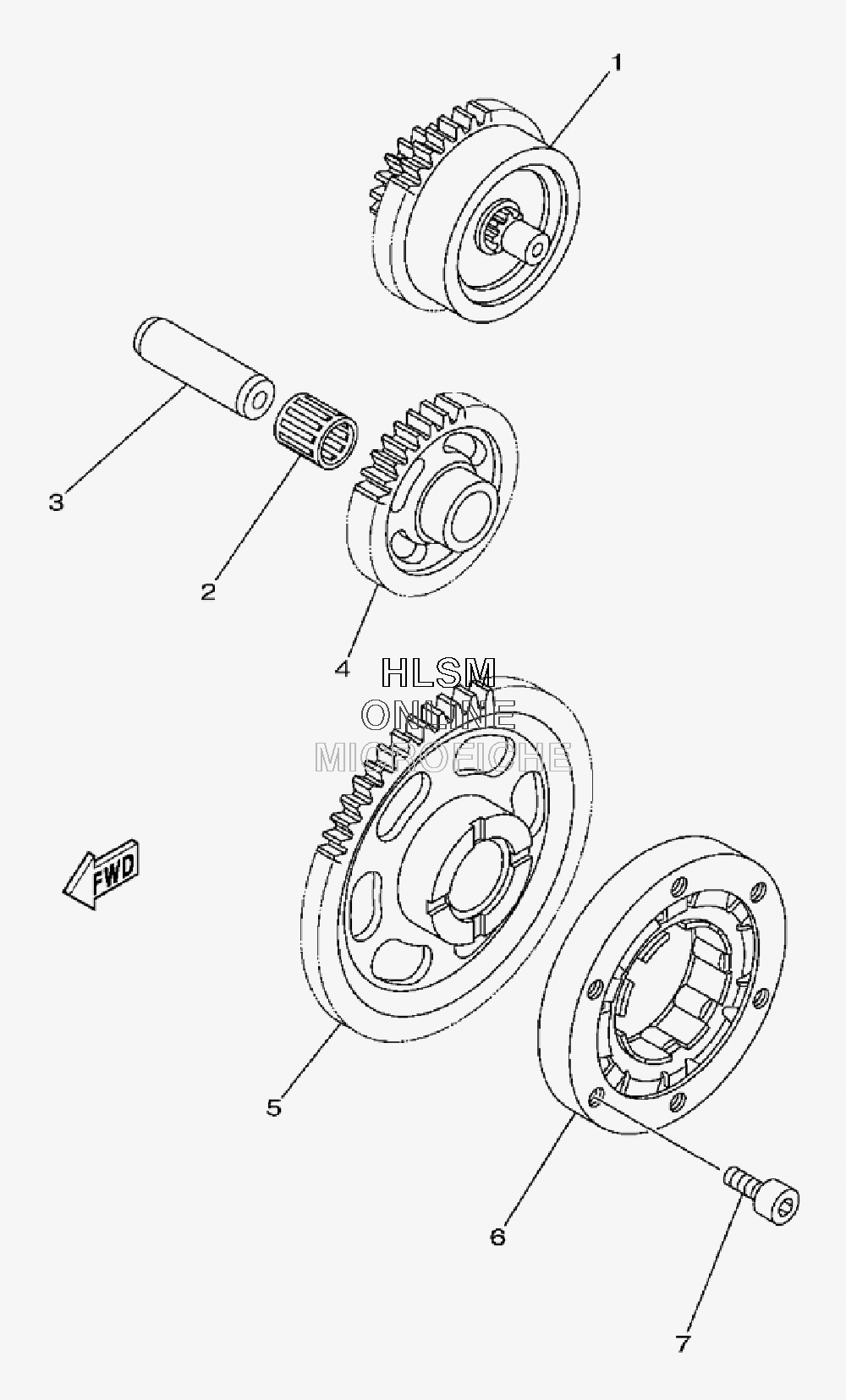

STARTER - RECOIL для Yamaha YFZ450R - 2009 года выпуска
-
№АртикулНазвание
-
118P-15560-00-00 DAMPER ASSYDAMPER ASSY
-
293310-11268-00 BEARING, CYL.#10BEARING, CYL.#10
-
318P-15521-00-00 SHAFT 1SHAFT 1
-
418P-15517-00-00 GEAR, IDLER 2GEAR, IDLER 2
-
518P-15515-00-00 GEAR 3GEAR 3
-
65TJ-15590-00-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
790110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
