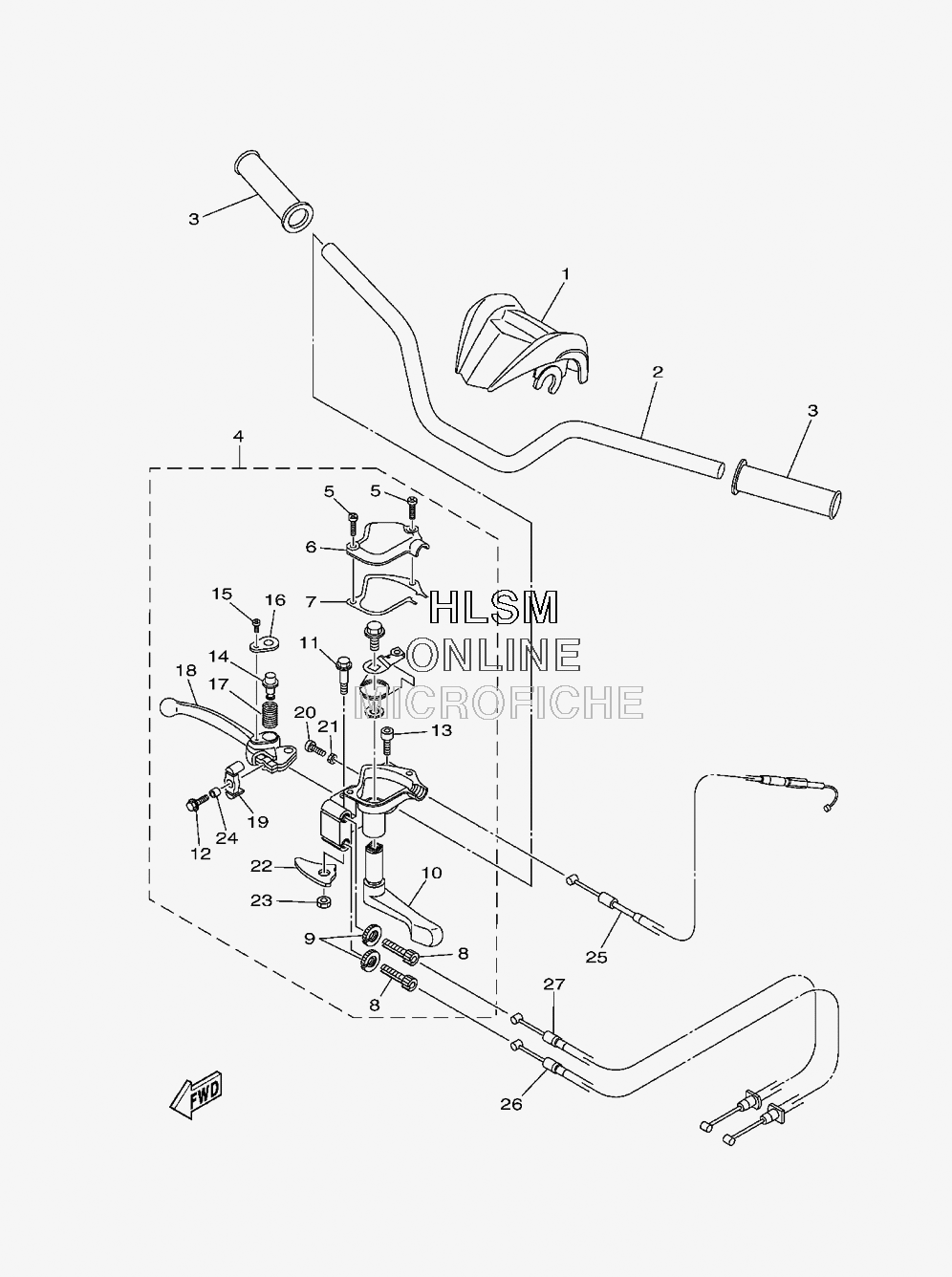

HANDLEBAR W/ CABLES для Yamaha RAPTOR 90 - 2009 года выпуска`
-
№АртикулНазвание
-
143D-F6124-00-00 PROTECTOR, HANDLEBAR FOR DPBSEPROTECTOR, HANDLEBAR FOR DPBSE
-
143D-F6124-10-00 PROTECTOR, HANDLEBAR FOR YBPROTECTOR, HANDLEBAR FOR YB
-
243D-F6111-00-00 HANDLEBARHANDLEBAR
-
343D-F6241-00-00 GRIPGRIP
-
443D-F6250-00-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
543D-H1145-00-00 SCREW 1SCREW 1
-
643D-F628F-00-00 CAP, GEARCAP, GEAR
-
743D-F628G-00-00 GASKETGASKET
-
843D-F1739-00-00 BOLTBOLT
-
943D-F1968-00-00 NUTNUT
-
1043D-F625G-00-01 LEVER, THROTTLELEVER, THROTTLE
-
1143D-F3346-00-00 BOLT 1BOLT 1
-
1243D-F6382-00-00 BOLT, AJUSTINGBOLT, AJUSTING
-
1343D-F6332-00-00 BOLTBOLT
-
1443D-H3967-00-00 PIN, LOCK 1PIN, LOCK 1
-
1543D-H1146-00-00 SCREW 2SCREW 2
-
1643D-F6133-00-00 CAPCAP
-
1743D-F4333-00-00 SPRINGSPRING
-
1843D-H3922-00-00 LEVER 2LEVER 2
-
1943D-F6347-00-00 JOINT, CABLEJOINT, CABLE
-
2043D-F6337-00-00 BOLT, ADJUSTINGBOLT, ADJUSTING
-
2143D-F3357-00-00 NUTNUT
-
2243D-F631G-00-00 PLATEPLATE
-
2343D-F3778-00-00 NUTNUT
-
2443D-F7213-00-00 COLLARCOLLAR
-
2543D-F6311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
2643D-F6340-00-00 CABLE, BRAKECABLE, BRAKE
-
2743D-F6350-00-00 CABLE, BRAKECABLE, BRAKE
