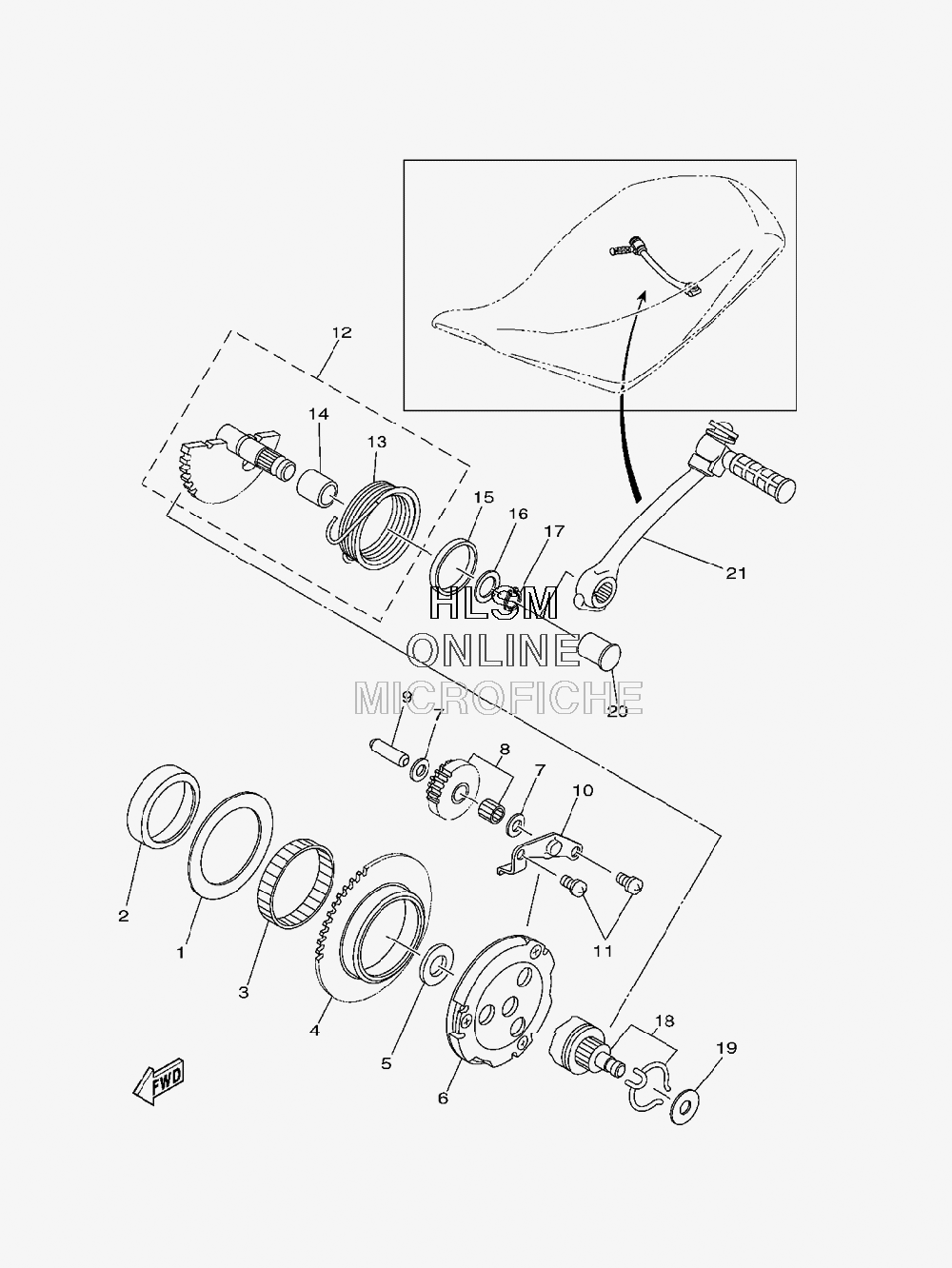

STARTER - RECOIL для Yamaha RAPTOR 90 - 2009 года выпуска`
-
№АртикулНазвание
-
143D-E1558-00-00 WASHER 2WASHER 2
-
243D-E5538-00-00 BOSS, GEAR 2BOSS, GEAR 2
-
343D-E5596-00-00 BEARINGBEARING
-
443D-E5524-00-00 WHEEL, STARTERWHEEL, STARTER
-
543D-E3995-00-00 WASHERWASHER
-
643D-E5570-00-00 STARTER CLUTCH ASSYSTARTER CLUTCH ASSY
-
743D-E2289-00-00 WASHERWASHER
-
843D-E5640-00-00 KICK GEAR ASSYKICK GEAR ASSY
-
943D-E3342-00-00 SHAFT, IDLE GEARSHAFT, IDLE GEAR
-
1043D-E5532-00-00 PLATE, IDLE GEARPLATE, IDLE GEAR
-
1143D-E1834-00-00 SCREWSCREW
-
1243D-E5600-00-00 KICK SHAFT UNIT ASSYKICK SHAFT UNIT ASSY
-
1343D-E5665-00-00 SPRING, KICKSPRING, KICK
-
1443D-E5677-00-00 BOSS, KICK AXLEBOSS, KICK AXLE
-
1543D-E5666-00-00 SPACERSPACER
-
1643D-E2456-00-00 WASHERWASHER
-
1743D-E5597-00-00 CIRCLIP 2CIRCLIP 2
-
1843D-E5650-00-00 IDLE GEAR ASSYIDLE GEAR ASSY
-
1943D-E2664-00-00 WASHERWASHER
-
2043D-E6773-00-00 CAPCAP
-
2143D-E5620-00-00 KICK CRANK ASSYKICK CRANK ASSY
