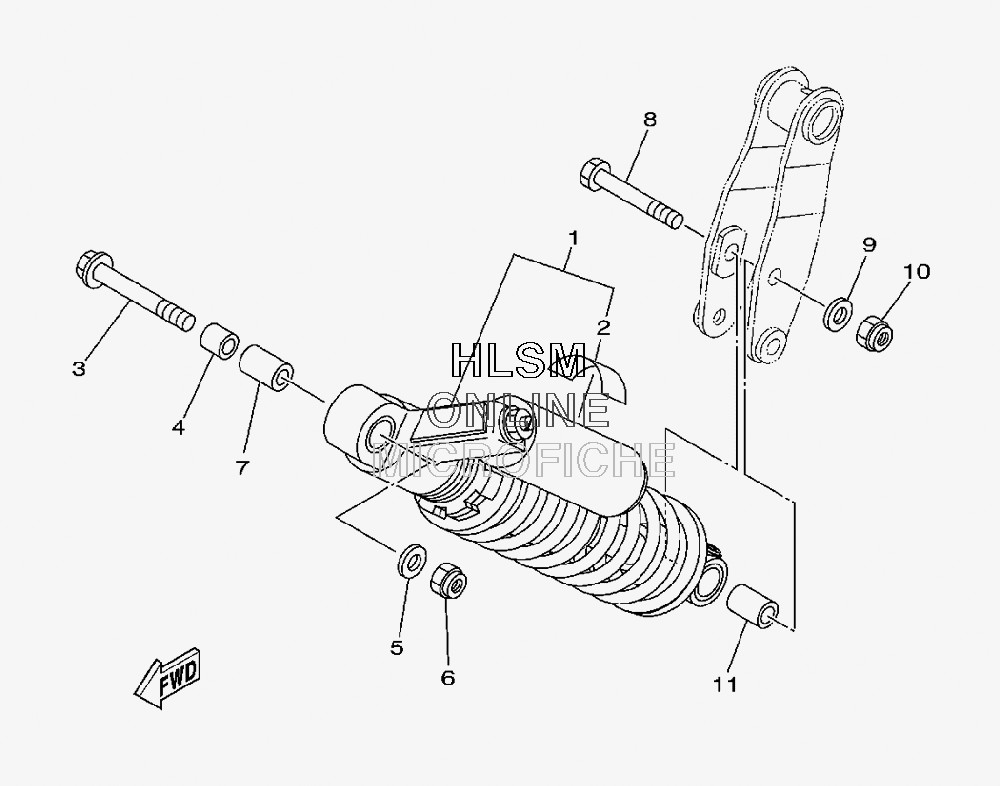

SUSPENSION - REAR SHOCK ABSORBER для Yamaha RAPTOR 700R - 2009 года выпуска`
-
№АртикулНазвание
-
11S3-22210-F0-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
24AA-22259-80-00 LABEL, WARNINGLABEL, WARNING
-
390105-12038-00 BOLT, FLANGEBOLT, FLANGE
-
490387-12028-00 COLLARCOLLAR
-
590201-12032-00 WASHER, PLATEWASHER, PLATE
-
690185-12007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
790387-12020-00 COLLARCOLLAR
-
890109-10019-00 BOLTBOLT
-
990201-10036-00 WASHER, PLATEWASHER, PLATE
-
1090185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1190387-127W0-00 COLLARCOLLAR
