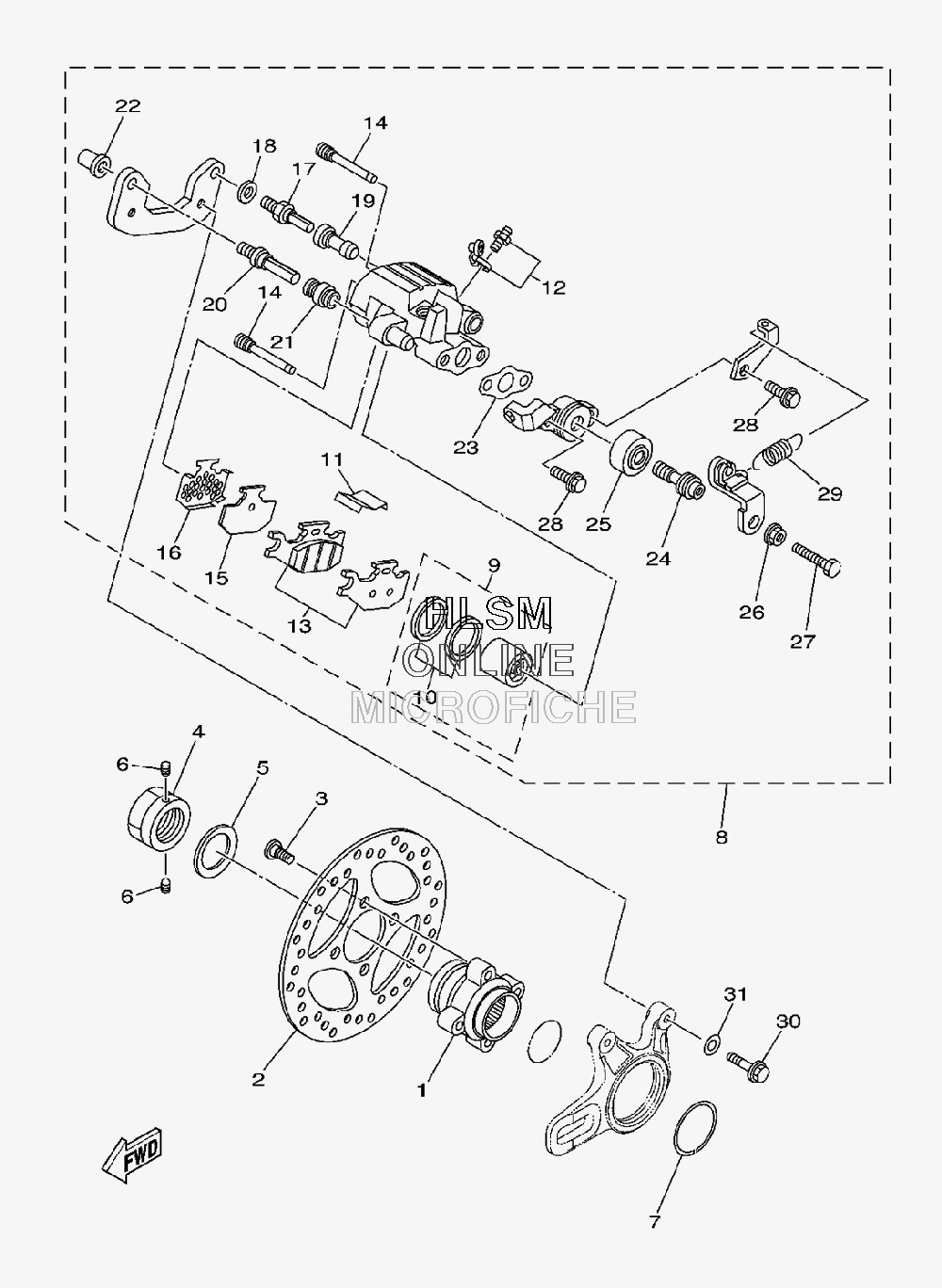

BRAKE - REAR CALIPER для Yamaha RAPTOR 700R - 2009 года выпуска`
-
№АртикулНазвание
-
11S3-25712-00-00 BRACKET, DISCBRACKET, DISC
-
21S3-2582W-10-00 DISC, REAR BRAKE 2DISC, REAR BRAKE 2
-
390109-08076-00 BOLTBOLT
-
490179-36003-00 NUTNUT
-
590208-37001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
690113-06055-00 BOLT, SETBOLT, SET
-
71S3-25415-00-00 CIRCLIPCIRCLIP
-
81S3-2580V-11-00 CALIPER ASSY, REAR 1CALIPER ASSY, REAR 1
-
95UG-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
103GD-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
114GY-25919-50-00 SUPPORT, PADSUPPORT, PAD
-
121UY-W0048-50-00 BLEED SCREW KITBLEED SCREW KIT
-
131S3-W0046-01-00 BRAKE PAD KIT 2BRAKE PAD KIT 2
-
145GH-25924-00-00 PIN, PADPIN, PAD
-
155UG-25827-00-00 SHIM, CALIPERSHIM, CALIPER
-
165GH-25828-00-00 SHIM, CALIPERSHIM, CALIPER
-
171UY-25926-51-00 BOLTBOLT
-
181UY-25938-51-00 WASHER, SPRINGWASHER, SPRING
-
191UY-25937-51-00 BOOT 2BOOT 2
-
203JD-25926-00-00 BOLTBOLT
-
213JD-25917-00-00 BOOT, CALIPERBOOT, CALIPER
-
223JD-25961-00-00 NUTNUT
-
235UG-25898-00-00 GASKETGASKET
-
241S3-25978-00-00 SHAFT LSHAFT L
-
251UY-25974-51-00 BOOTBOOT
-
261S3-25973-00-00 NUTNUT
-
271S3-25972-00-00 ADJUSTBOLTADJUSTBOLT
-
285UG-25833-00-00 BOLT, FITTINGBOLT, FITTING
-
295TG-25977-50-00 SPRING, RETURNSPRING, RETURN
-
3090105-08104-00 BOLT, FLANGEBOLT, FLANGE
-
3190201-08060-00 WASHER, PLATEWASHER, PLATE
