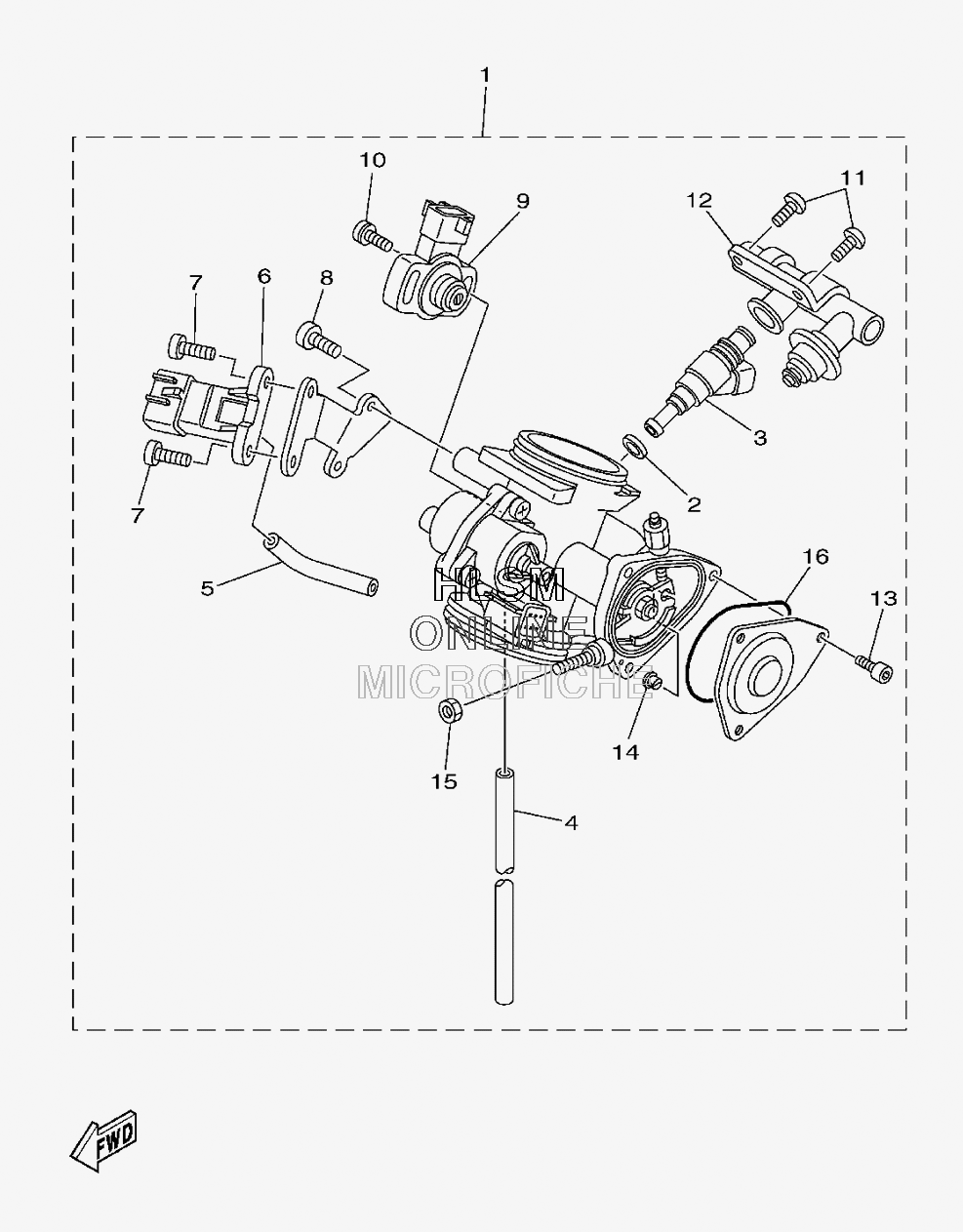

THROTTLE BODY ASSY. для Yamaha GRIZZLY 700 4X4 FI - 2009 года выпуска`
-
№АртикулНазвание
-
143P-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
28FP-13556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
33B4-13761-00-00 INJECTORINJECTOR
-
428P-13543-00-00 HOSE, AIRHOSE, AIR
-
55JW-14348-00-00 PIPE 1PIPE 1
-
61C7-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
792507-06010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
898507-05010-00 SCREW,PAN HEAD(3SX)SCREW,PAN HEAD(3SX)
-
93B4-85885-00-00 THROTTLE SENSOR ASSYTHROTTLE SENSOR ASSY
-
108CC-14216-10-00 SCREWSCREW
-
1198507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
123B4-13160-00-00 DELIVERY PIPE ASSY 1DELIVERY PIPE ASSY 1
-
1391312-04006-00 BOLTBOLT
-
141UY-14155-00-00 GUIDE, CABLEGUIDE, CABLE
-
151S3-14161-00-00 NUT, CABLE ADJUSTINGNUT, CABLE ADJUSTING
-
165LP-14147-00-00 O-RINGO-RING
