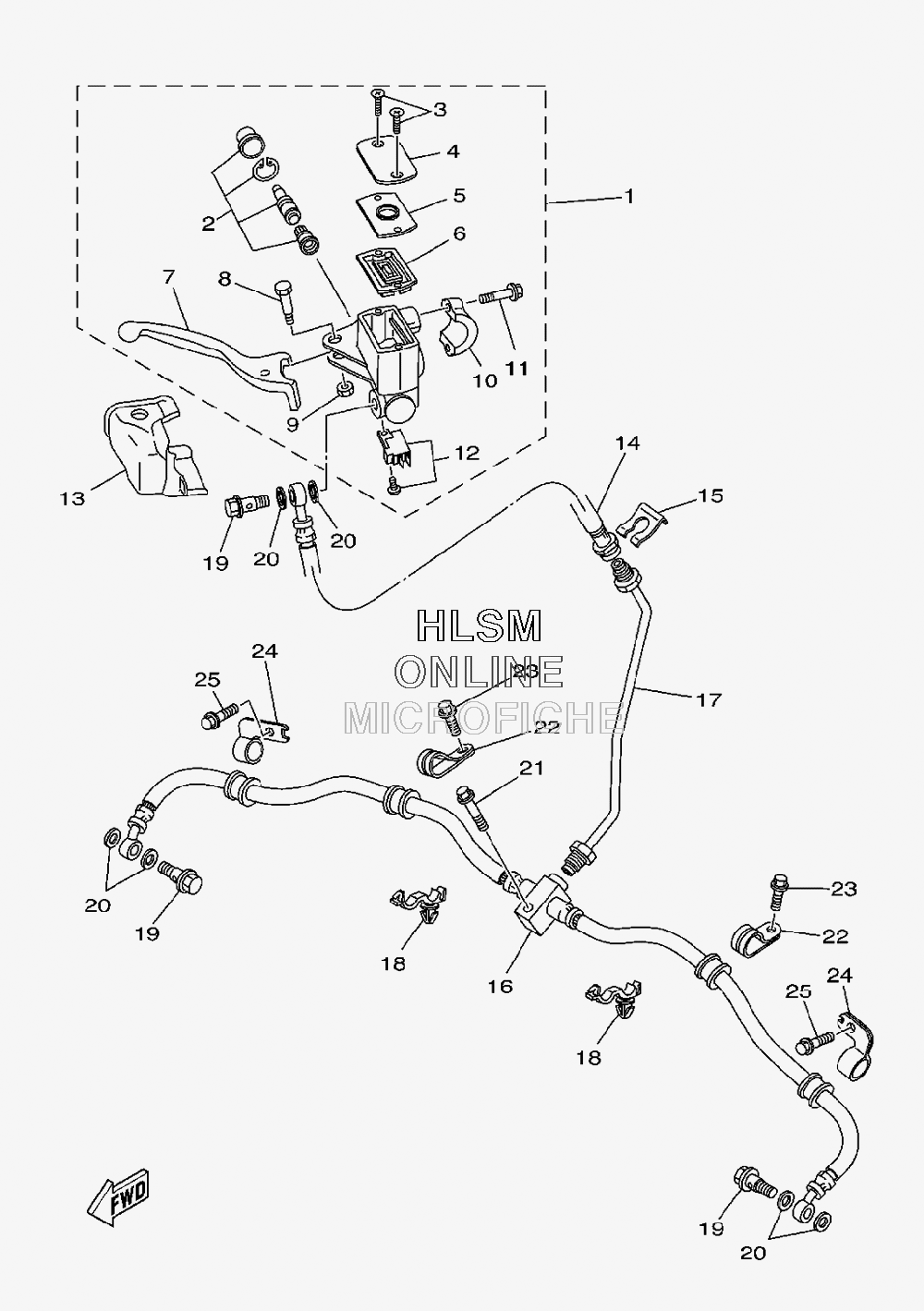

BRAKE - FRONT MASTER CYLINDER для Yamaha GRIZZLY 700 4X4 FI - 2009 года выпуска`
-
№АртикулНазвание
-
13B4-2583T-00-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
25D3-W0041-00-00 CYLINDER KIT, MASTERCYLINDER KIT, MASTER
-
398706-04012-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
43GM-25852-22-00 CAP, RESERVOIRCAP, RESERVOIR
-
53B4-2585B-00-00 PLATE, DIAPHRAGMPLATE, DIAPHRAGM
-
64TT-25854-00-00 GASKET, DIAPHRAGMGASKET, DIAPHRAGM
-
73B4-83922-00-00 LEVER 2LEVER 2
-
83B4-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
995604-06100-00 NUT, UNUT, U
-
1056A-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
115EB-26332-00-00 BOLTBOLT
-
124HM-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
133B4-2637A-01-00 COVER, HANDLE LEVER 2COVER, HANDLE LEVER 2
-
143B4-25872-10-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
152GU-25866-00-00 CIRCLIPCIRCLIP
-
163B4-25873-10-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
173B4-25871-10-00 PIPE, BRAKEPIPE, BRAKE
-
1890464-20010-00 CLAMPCLAMP
-
1990401-10015-00 BOLT, UNIONBOLT, UNION
-
2090201-10118-00 WASHER, PLATEWASHER, PLATE
-
2195822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
223B4-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2395802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
243B4-25876-10-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
2595802-06012-00 BOLT, FLANGEBOLT, FLANGE
