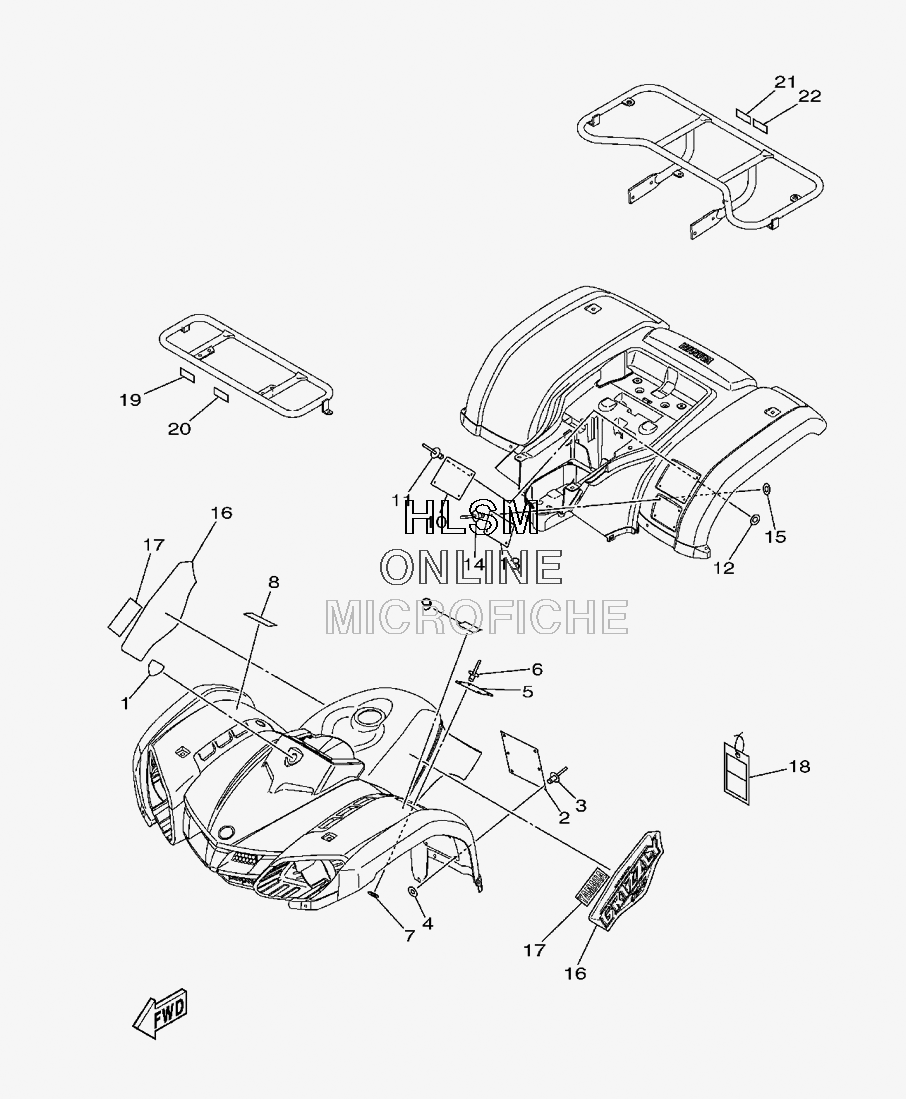

DECALS для Yamaha GRIZZLY 125 - 2009 года выпуска`
-
№АртикулНазвание
-
13B4-26232-01-00 EMBLEM 3DEMBLEM 3D
-
25FE-21568-01-00 LABEL, WARNING (ENGLISH)LABEL, WARNING (ENGLISH)
-
390267-32004-00 RIVET, BLINDRIVET, BLIND
-
490201-03008-00 WASHER, PLATEWASHER, PLATE
-
54D3-2816L-00-00 LABEL, WARNING AGE (ENGLISH)LABEL, WARNING AGE (ENGLISH)
-
690267-32004-00 RIVET, BLINDRIVET, BLIND
-
790201-03008-00 WASHER, PLATEWASHER, PLATE
-
85YT-2151E-30-00 LABEL 2LABEL 2
-
94D3-2817J-00-00 PLATE, ANSI SVIA (ENGLISH)PLATE, ANSI SVIA (ENGLISH)
-
101C5-2816M-U0-00 LABEL, WARNING TIRE AND LOADLABEL, WARNING TIRE AND LOAD
-
1190267-32004-00 RIVET, BLINDRIVET, BLIND
-
1290201-03008-00 WASHER, PLATEWASHER, PLATE
-
135FE-2151H-01-00 LABEL 5 (ENGLISH)LABEL 5 (ENGLISH)
-
1490267-32004-00 RIVET, BLINDRIVET, BLIND
-
1590201-03008-00 WASHER, PLATEWASHER, PLATE
-
161C5-2173E-E0-00 GRAPHIC 1GRAPHIC 1
-
174ES-2153E-30-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
185KM-2819R-10-00 TAG, WARNINGTAG, WARNING
-
193MX-24875-A0-00 LABEL 1 (ENGLISH)LABEL 1 (ENGLISH)
-
203LD-24877-U0-00 LABEL, CAUTIONLABEL, CAUTION
-
213MX-24875-A0-00 LABEL 1 (ENGLISH)LABEL 1 (ENGLISH)
-
221C5-24877-U0-00 LABEL, CAUTIONLABEL, CAUTION
