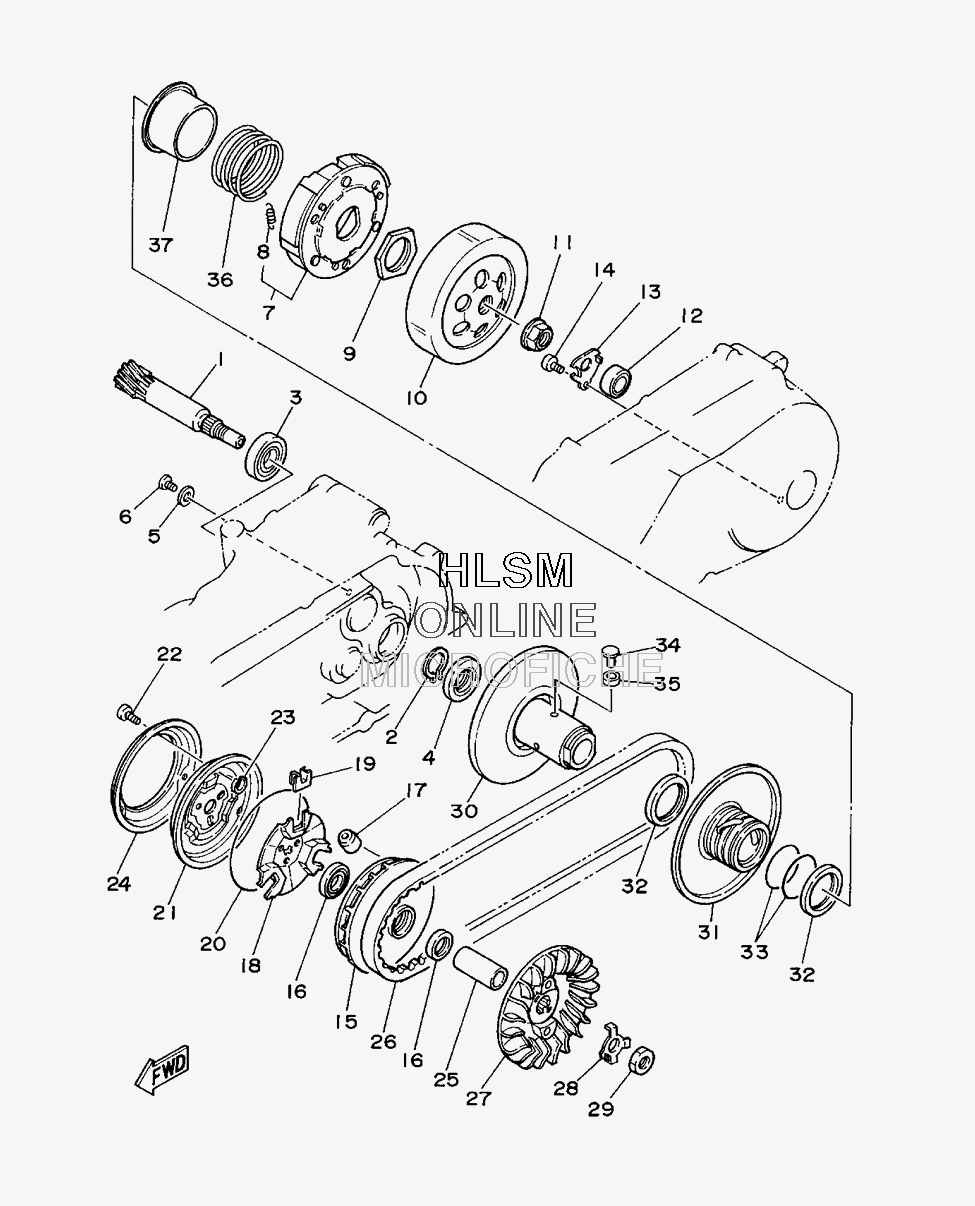

CLUTCH для Yamaha GRIZZLY 125 - 2009 года выпуска`
-
№АртикулНазвание
-
13FA-16111-00-00 GEAR, PRIMARY DRIVE (14T)GEAR, PRIMARY DRIVE (14T)
-
299009-22400-00 CIRCLIPCIRCLIP
-
393306-00433-00 BEARINGBEARING
-
493102-22335-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
590201-06412-00 WASHER, PLATEWASHER, PLATE
-
698502-06010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
73FA-16620-00-00 CLUTCH CARRIER ASSYCLUTCH CARRIER ASSY
-
814T-16626-00-00 SPRING, CLUTCH WEIGHT 1SPRING, CLUTCH WEIGHT 1
-
990170-36279-00 NUTNUT
-
101C5-16611-01-00 CLUTCH HOUSING COMP.CLUTCH HOUSING COMP.
-
1190179-14469-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1293399-99918-00 BEARING, SPECIALBEARING, SPECIAL
-
1350M-15381-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1498502-06010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
153FA-17620-01-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
1693101-21170-00 OIL SEALOIL SEAL
-
1750M-17632-00-00 WEIGHTWEIGHT
-
1850W-17623-00-00 CAMCAM
-
194CW-17653-00-00 SLIDERSLIDER
-
2093210-97690-00 O-RINGO-RING
-
2150M-17630-00-00 PRIMARY SHEAVE CAP COMP.PRIMARY SHEAVE CAP COMP.
-
2298980-04012-00 SCREW, BINDSCREW, BIND
-
2390214-04038-00 WASHER, CLAWWASHER, CLAW
-
2450M-1763E-01-00 PLATEPLATE
-
2590387-161V0-00 COLLARCOLLAR
-
263FA-17641-00-00 V-BELTV-BELT
-
273FA-17611-01-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
2890215-14236-00 WASHER, LOCKWASHER, LOCK
-
2990170-12011-00 NUTNUT
-
303FA-17660-02-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
313FA-17670-00-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
3293104-41119-00 OIL SEALOIL SEAL
-
3393210-43713-00 O-RINGO-RING
-
3450W-17664-00-00 PIN, GUIDEPIN, GUIDE
-
3550W-17674-00-00 COLLAR, GUIDECOLLAR, GUIDE
-
3690501-505F1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
373FA-17684-00-00 SEAT, SECONDARY SPRINGSEAT, SECONDARY SPRING
