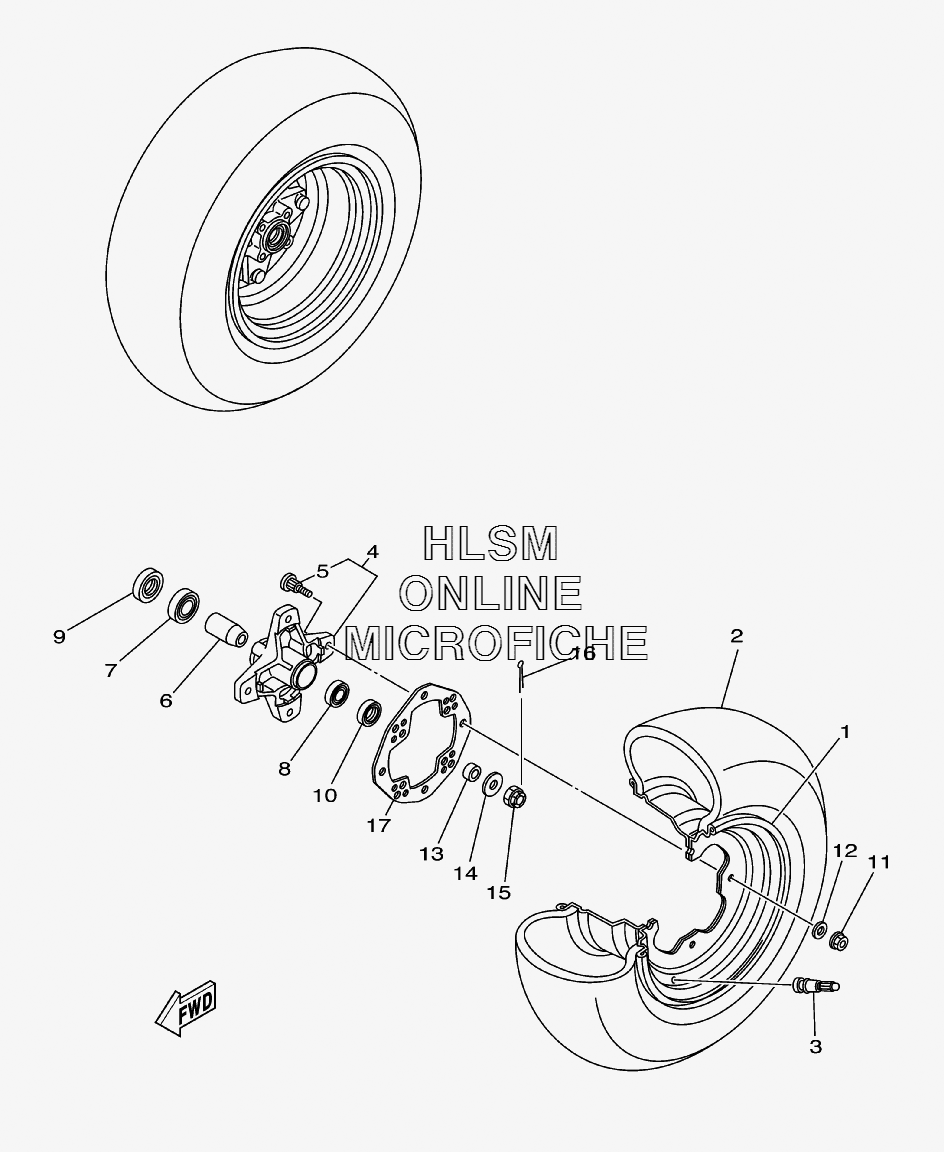

WHEEL - FRONT W/ AXLE ASSY для Yamaha RAPTOR 350 - 2008 года выпуска`
-
№АртикулНазвание
-
15LP-25180-20-00 WHEEL COMP.WHEEL COMP.
-
294107-10020-00 TIRE (AT21X7-10 KT851B T/L) DUNLOPTIRE (AT21X7-10 KT851B T/L) DUNLOP
-
393900-00022-00 VALVE, RIMVALVE, RIM
-
43GD-25111-20-00 HUB, FRONTHUB, FRONT
-
590114-10006-00 BOLT, SERRATIONBOLT, SERRATION
-
61UY-25117-00-00 SPACER, BEARINGSPACER, BEARING
-
793306-00446-00 BEARINGBEARING
-
893306-20231-00 BEARINGBEARING
-
993105-26026-00 OIL SEAL, SDD-TYPEOIL SEAL, SDD-TYPE
-
1093102-22216-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
1195702-10500-00 NUT, WITH WASHERNUT, WITH WASHER
-
1292902-10200-00 WASHERWASHER
-
1390387-150R1-00 COLLARCOLLAR
-
1490201-14586-00 WASHER, PLATEWASHER, PLATE
-
1590171-14002-00 NUT, CASTLENUT, CASTLE
-
1691401-30025-00 PIN, SPLITPIN, SPLIT
-
171S3-25127-00-00 COVER, PLATECOVER, PLATE
