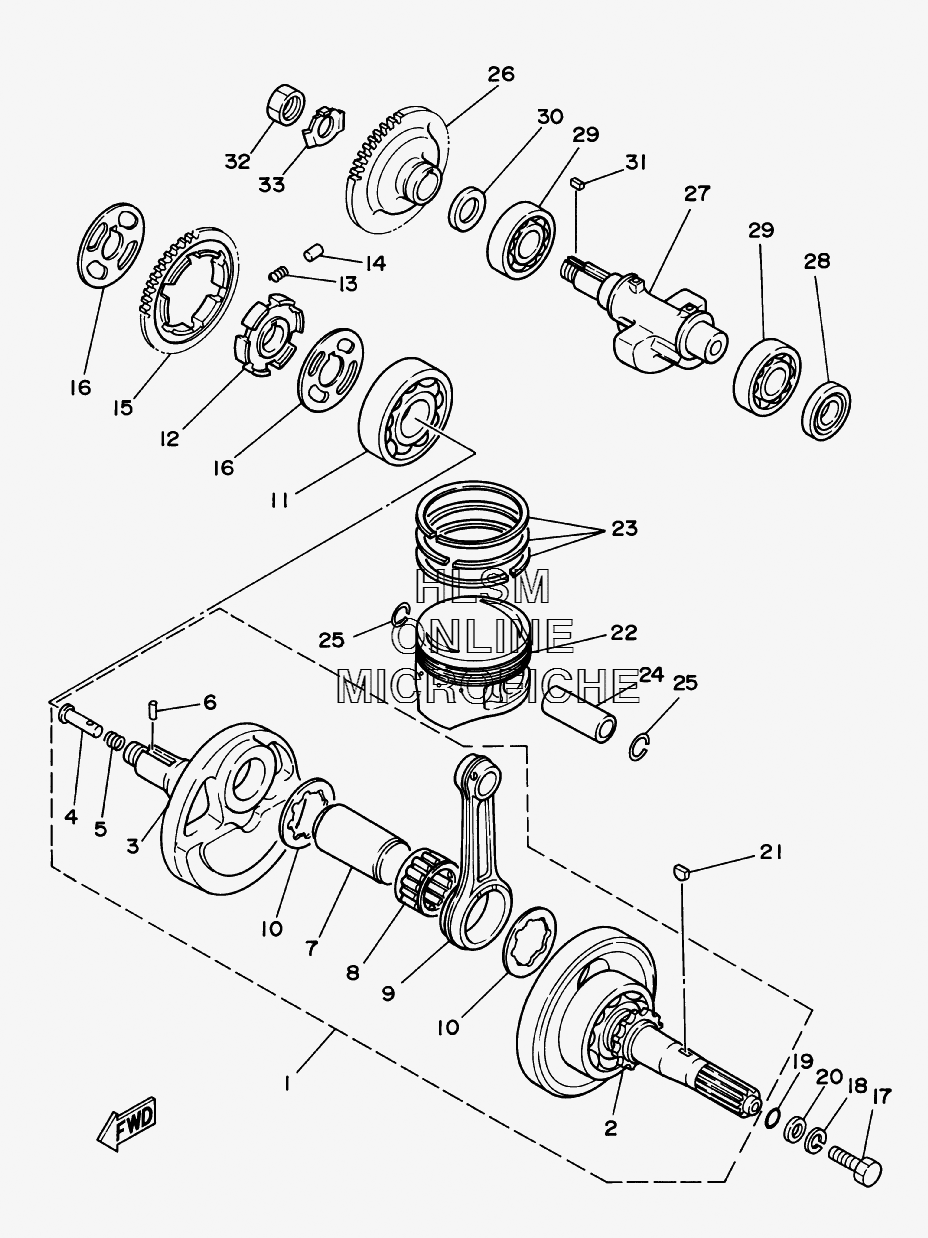

CRANKSHAFT - PISTON для Yamaha RAPTOR 350 - 2008 года выпуска`
-
№АртикулНазвание
-
11UY-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
21UY-W1141-00-00 ...CRANK SUB ASSY 1...CRANK SUB ASSY 1
-
31UY-11422-00-00 ...CRANK 2...CRANK 2
-
490240-07105-00 ...PIN, CLEVIS...PIN, CLEVIS
-
590501-07629-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
693602-13177-00 ...PIN, DOWEL...PIN, DOWEL
-
730X-11681-00-00 ...PIN, CRANK 1...PIN, CRANK 1
-
893310-633T5-00 ...BEARING, CYLINDRICAL...BEARING, CYLINDRICAL
-
91UY-11651-00-00 ...ROD, CONNECTING...ROD, CONNECTING
-
1090209-33253-00 ...WASHER, SPEC'L SHAPE...WASHER, SPEC'L SHAPE
-
1193306-30622-00 BEARINGBEARING
-
1230X-11496-00-00 BOSS, BUFFERBOSS, BUFFER
-
1390501-22721-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1493605-10090-00 PIN, DOWELPIN, DOWEL
-
153Y1-11531-02-00 GEAR, BALANCE WEIGHTGEAR, BALANCE WEIGHT
-
1630X-11565-00-00 WASHER, BEARING COVERWASHER, BEARING COVER
-
1790101-10017-00 BOLTBOLT
-
1892902-10100-00 WASHER, SPRINGWASHER, SPRING
-
1993210-16290-00 O-RINGO-RING
-
2090201-10058-00 WASHER, PLATEWASHER, PLATE
-
2190280-05048-00 KEY, WOODRUFFKEY, WOODRUFF
-
225UH-11631-00-C0 PISTON (STD)PISTON (STD)
-
225UH-11636-00-00 PISTON (0.50MM O/S) (OPT)PISTON (0.50MM O/S) (OPT)
-
225UH-11638-00-00 PISTON (1.00MM O/S) (OPT)PISTON (1.00MM O/S) (OPT)
-
234GB-11610-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
234GB-11610-20-00 PISTON RING SET (0.50MM O/S) (OPT)PISTON RING SET (0.50MM O/S) (OPT)
-
234GB-11610-40-00 PISTON RING SET (1.00MM O/S) (OPT)PISTON RING SET (1.00MM O/S) (OPT)
-
2455V-11633-00-00 PIN, PISTONPIN, PISTON
-
2593450-19095-00 CIRCLIP, INNERCIRCLIP, INNER
-
261UY-11536-01-00 GEAR, DRIVEGEAR, DRIVE
-
271UY-11454-00-00 WEIGHT 1WEIGHT 1
-
2893101-25106-00 OIL SEAL, S-TYPEOIL SEAL, S-TYPE
-
2993306-20532-00 BEARINGBEARING
-
3090201-207G6-00 WASHER, PLATEWASHER, PLATE
-
3190282-05034-00 KEY, STRAIGHTKEY, STRAIGHT
-
3290170-16326-00 NUTNUT
-
3390215-16270-00 WASHER, LOCKWASHER, LOCK
