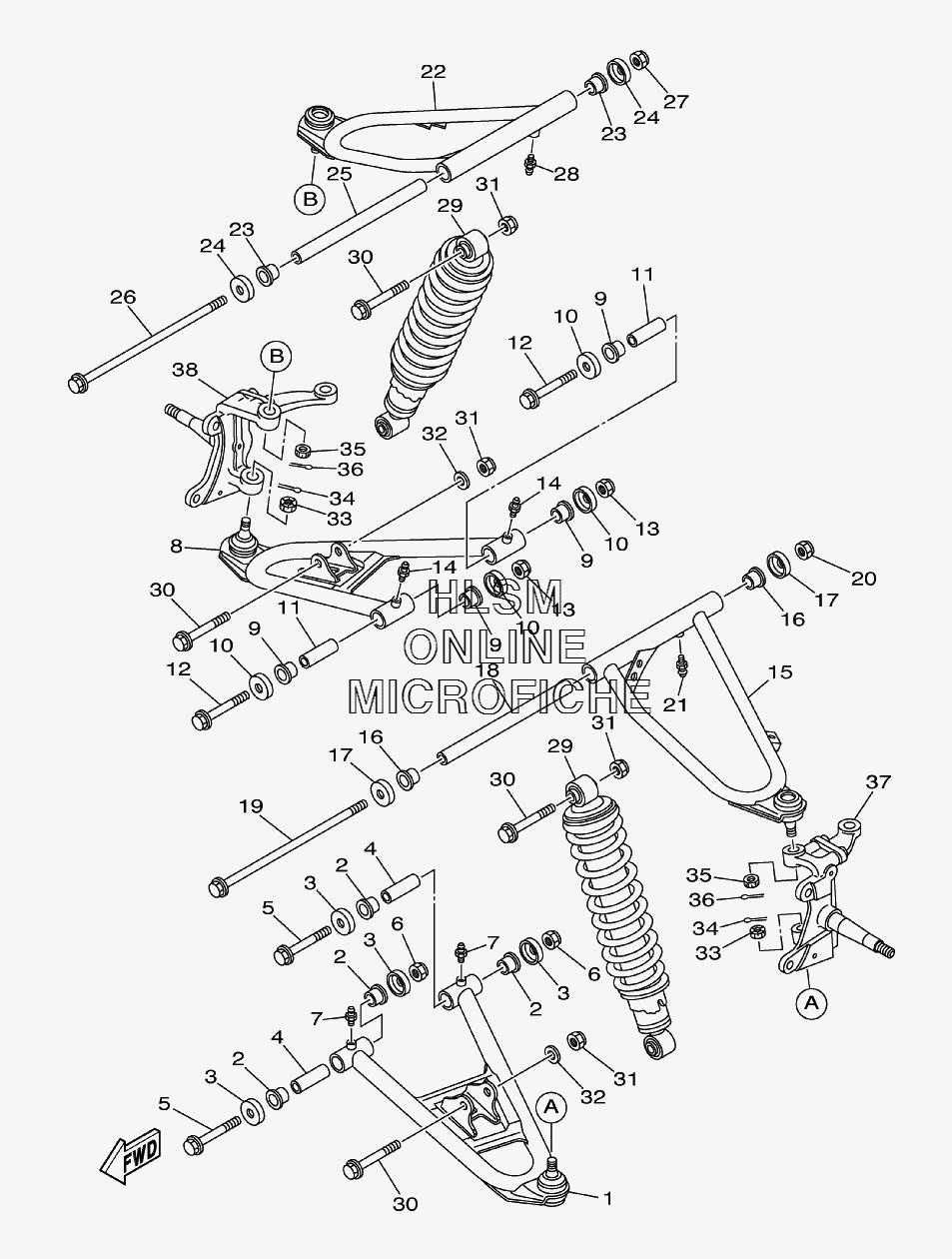

SUSPENSION - FRONT WHEEL для Yamaha RAPTOR 250 SPECIAL EDITION - 2008 года выпуска`
-
№АртикулНазвание
-
14D3-23570-00-P1 FRONT LOWER ARM COMP. (LEFT) (ORANGE METALLIC)FRONT LOWER ARM COMP. (LEFT) (ORANGE METALLIC)
-
290381-15088-00 BUSH, SOLIDBUSH, SOLID
-
35YT-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
490387-101R3-00 COLLARCOLLAR
-
590105-10241-00 BOLT, FLANGEBOLT, FLANGE
-
690185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
793700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
84D3-23580-00-P1 FRONT LOWER ARM COMP. (RIGHT) (ORANGE METALLIC)FRONT LOWER ARM COMP. (RIGHT) (ORANGE METALLIC)
-
990381-15088-00 BUSH, SOLIDBUSH, SOLID
-
105YT-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
1190387-101R3-00 COLLARCOLLAR
-
1290105-10241-00 BOLT, FLANGEBOLT, FLANGE
-
1390185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1493700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
154D3-23540-00-P1 FRONT UPPER ARM COMP. (LEFT) (ORANGE METALLIC)FRONT UPPER ARM COMP. (LEFT) (ORANGE METALLIC)
-
1690381-15088-00 BUSH, SOLIDBUSH, SOLID
-
175YT-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
1890387-100Y6-00 COLLARCOLLAR
-
19109-22141-01-00 SHAFT, PIVOTSHAFT, PIVOT
-
2090185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2193700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
224D3-23550-00-P1 FRONT UPPER ARM COMP. (RIGHT) (ORANGE METALLIC)FRONT UPPER ARM COMP. (RIGHT) (ORANGE METALLIC)
-
2390381-15088-00 BUSH, SOLIDBUSH, SOLID
-
245YT-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
2590387-100Y6-00 COLLARCOLLAR
-
26109-22141-01-00 SHAFT, PIVOTSHAFT, PIVOT
-
2790185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2893700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
294D3-23350-00-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
3090105-10131-00 BOLT, FLANGEBOLT, FLANGE
-
3190185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3290201-10035-00 WASHER, PLATEWASHER, PLATE
-
3390171-10001-00 NUT, CASTLENUT, CASTLE
-
3491401-20020-00 PIN, COTTERPIN, COTTER
-
3590171-10001-00 NUT, CASTLENUT, CASTLE
-
3691401-20020-00 PIN, COTTERPIN, COTTER
-
373GD-23501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
383GD-23502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
