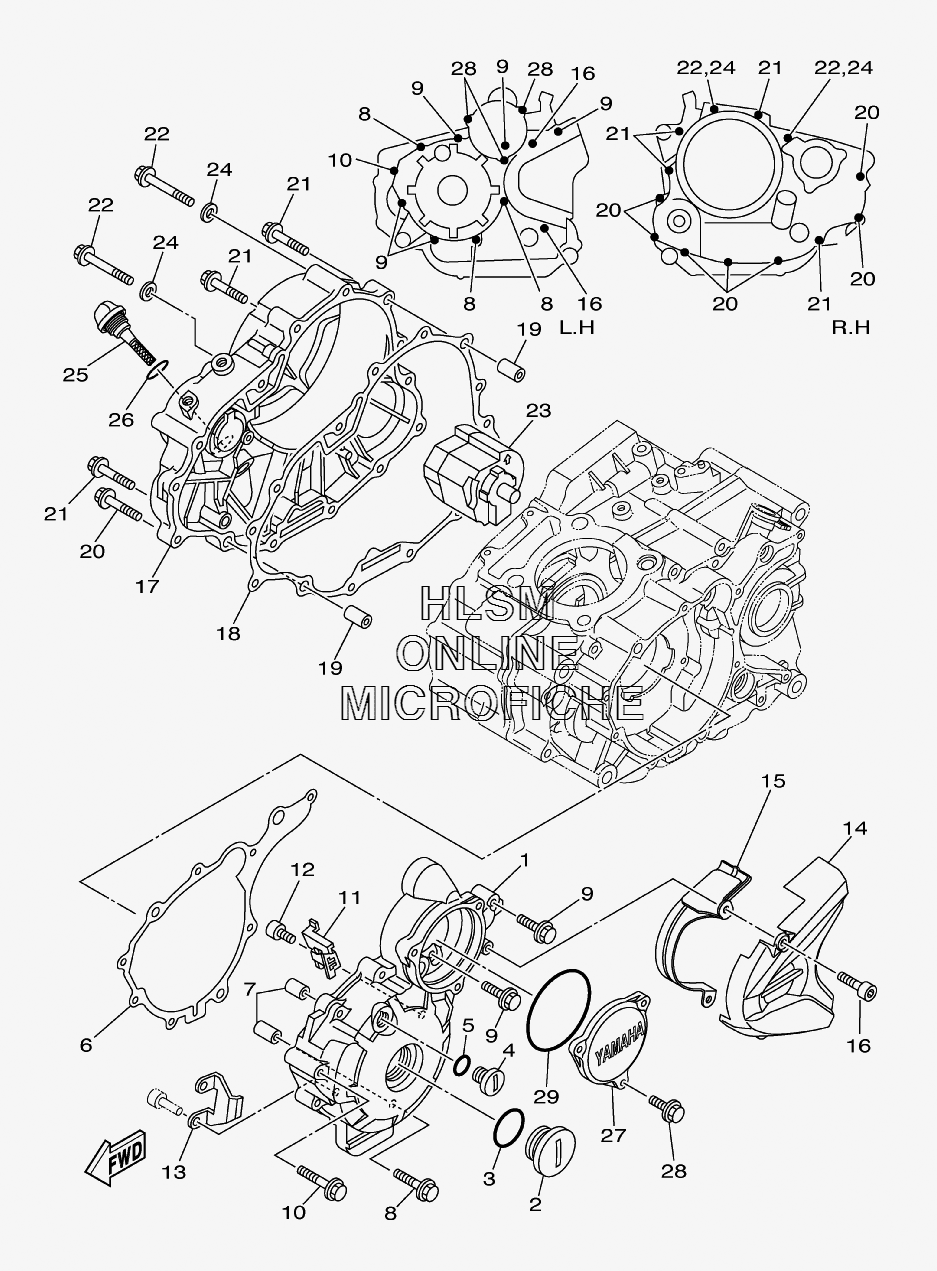

CRANKCASE COVER для Yamaha RAPTOR 250 SPECIAL EDITION - 2008 года выпуска`
-
№АртикулНазвание
-
14D3-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
290340-32005-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
393210-32172-00 O-RINGO-RING
-
490340-14014-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
593210-14369-00 O-RINGO-RING
-
64D3-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
799530-10114-00 PIN, DOWELPIN, DOWEL
-
895022-06040-00 BOLT, FLANGEBOLT, FLANGE
-
995022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1095022-06045-00 BOLT, FLANGEBOLT, FLANGE
-
1190465-16011-00 CLAMPCLAMP
-
1290110-05032-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
135XT-15113-00-00 PLATEPLATE
-
144D3-15418-00-00 COVER, CHAIN CASECOVER, CHAIN CASE
-
154D3-15493-00-00 PROTECTORPROTECTOR
-
1691312-06016-00 BOLTBOLT
-
174D3-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
184D3-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
1999530-10114-00 PIN, DOWELPIN, DOWEL
-
2095022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2195022-06040-00 BOLT, FLANGEBOLT, FLANGE
-
2295022-06050-00 BOLT, FLANGEBOLT, FLANGE
-
234D3-15328-00-00 SPACER, DAMPERSPACER, DAMPER
-
2490430-06014-00 GASKETGASKET
-
254D3-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
2693210-19123-00 O-RINGO-RING
-
274D3-15415-00-00 COVER, GENERATORCOVER, GENERATOR
-
2895022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2993210-74M68-00 O-RINGO-RING
