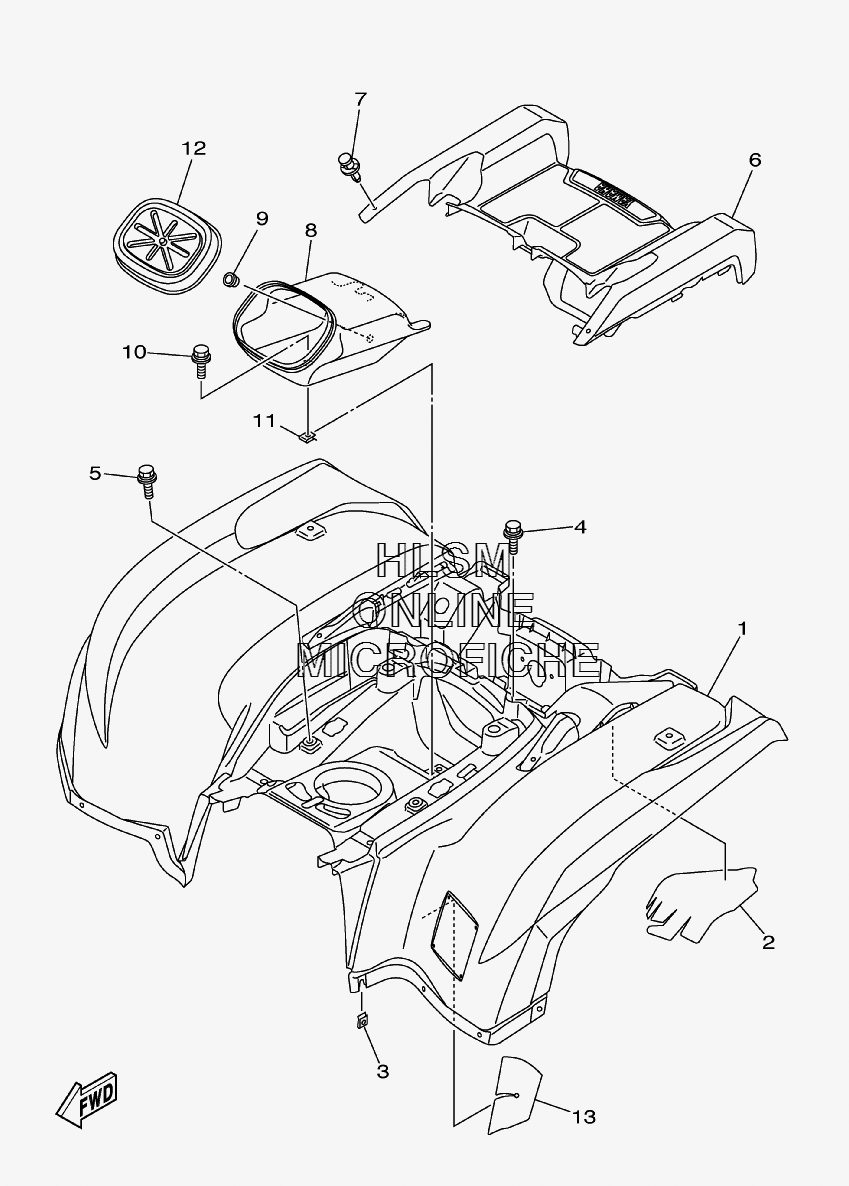

FENDER - REAR для Yamaha GRIZZLY 700 HUNTER - 2008 года выпуска`
-
№АртикулНазвание
-
13B4-W2161-D0-00 REAR FENDER COMP.REAR FENDER COMP.
-
23B4-21652-00-00 PROTECTORPROTECTOR
-
390183-06053-00 NUT, SPRINGNUT, SPRING
-
490119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
590119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
63B4-21651-00-00 COVER, REAR FENDERCOVER, REAR FENDER
-
790269-07010-00 RIVETRIVET
-
83B4-2160E-00-00 BOXBOX
-
990338-09130-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
1090119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1190183-06053-00 NUT, SPRINGNUT, SPRING
-
123B4-2160F-00-00 LIDLID
-
133B4-21669-00-00 SEALSEAL
