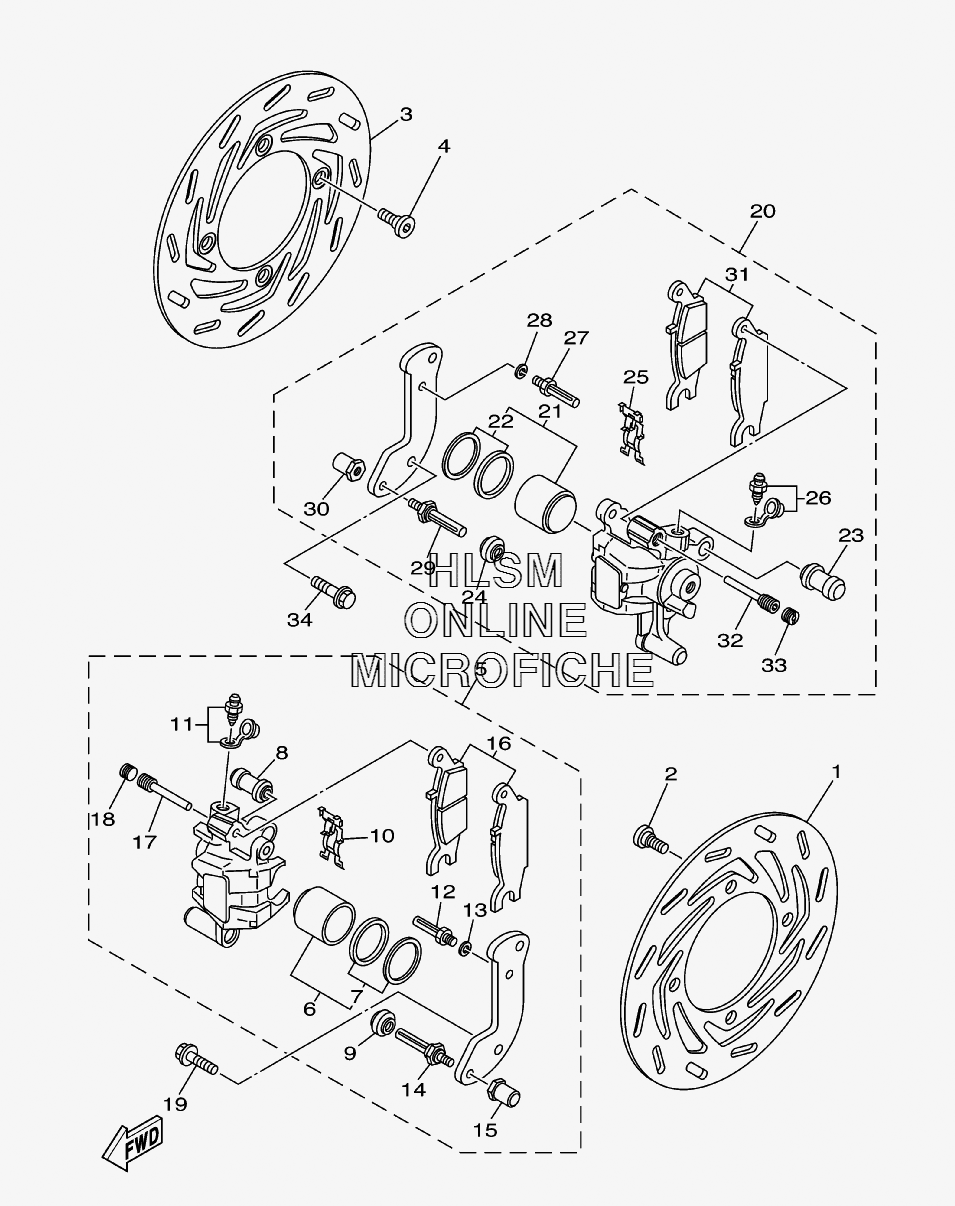

BRAKE - FRONT CALIPER для Yamaha GRIZZLY 700 HUNTER - 2008 года выпуска`
-
№АртикулНазвание
-
13B4-2582T-01-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
290109-08101-00 BOLTBOLT
-
33B4-2582T-01-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
490109-08101-00 BOLTBOLT
-
53B4-2580T-01-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
63B4-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
73B4-W0047-00-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
81UY-25937-51-00 ...BOOT 2...BOOT 2
-
93JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
105DH-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
111UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
121UY-25926-51-00 ...BOLT...BOLT
-
131UY-25938-51-00 ...WASHER, SPRING...WASHER, SPRING
-
143JD-25926-00-00 ...BOLT...BOLT
-
153JD-25961-00-00 ...NUT...NUT
-
163B4-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
175DH-25933-00-00 ...PIN, PAD...PIN, PAD
-
188CR-25926-00-00 ...BOLT...BOLT
-
1990105-08161-00 BOLT, FLANGEBOLT, FLANGE
-
203B4-2580U-01-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
213B4-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
223B4-W0047-00-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
231UY-25937-51-00 ...BOOT 2...BOOT 2
-
243JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
255DH-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
261UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
271UY-25926-51-00 ...BOLT...BOLT
-
281UY-25938-51-00 ...WASHER, SPRING...WASHER, SPRING
-
293JD-25926-00-00 ...BOLT...BOLT
-
303JD-25961-00-00 ...NUT...NUT
-
313B4-W0045-10-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
325DH-25933-00-00 ...PIN, PAD...PIN, PAD
-
338CR-25926-00-00 ...BOLT...BOLT
-
3490105-08161-00 BOLT, FLANGEBOLT, FLANGE
