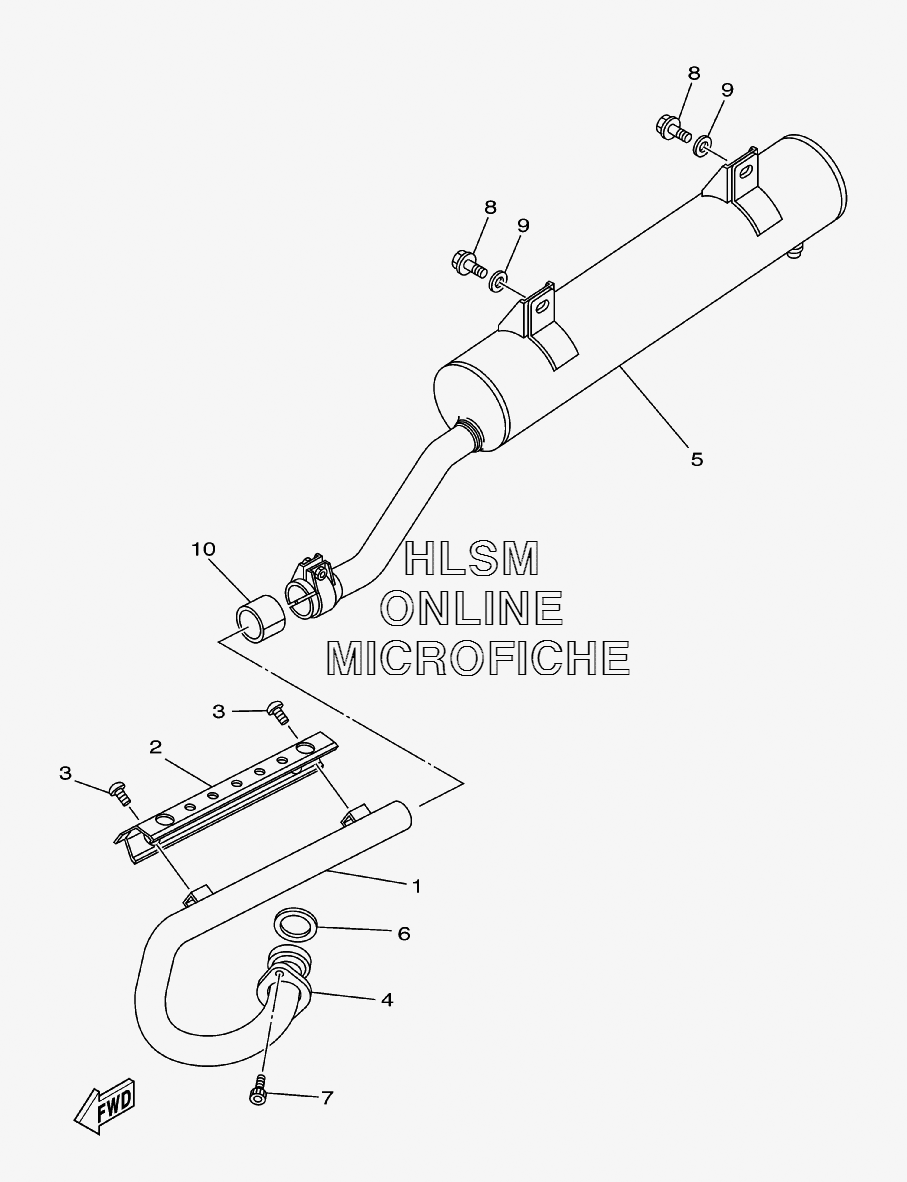

EXHAUST для Yamaha BIG BEAR 250 - 2008 года выпуска`
-
№АртикулНазвание
-
14XE-E4611-10-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
24XE-E4628-00-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
34XE-E4767-00-00 SCREWSCREW
-
44XE-E4612-10-00 NUT, RINGNUT, RING
-
54XE-E4710-20-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
64BE-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
791312-06020-00 BOLTBOLT
-
890105-10845-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
990201-10035-00 WASHER, PLATEWASHER, PLATE
-
103YF-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
