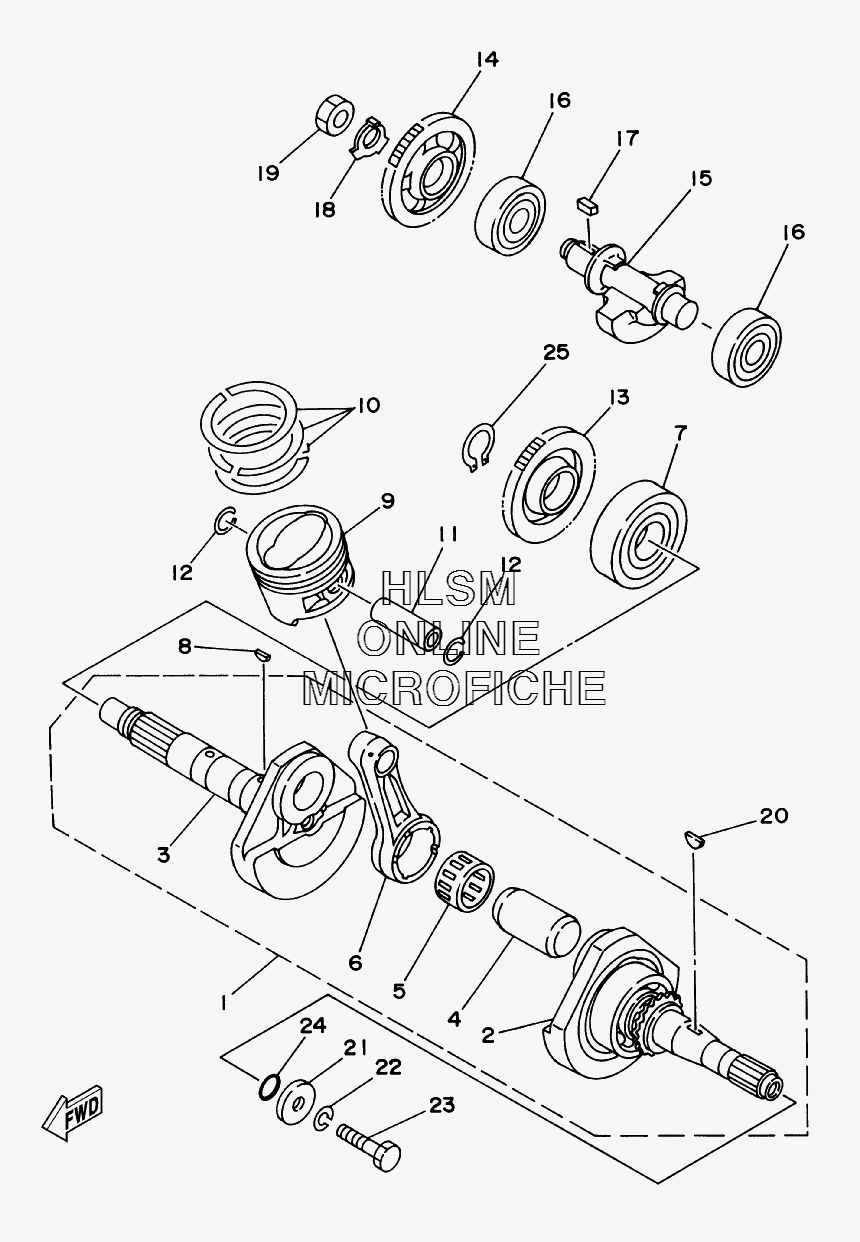

CRANKSHAFT - PISTON для Yamaha BIG BEAR 250 - 2008 года выпуска`
-
№АртикулНазвание
-
15XG-E1400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
25XG-WE141-00-00 ...CRANK SUB ASSY 1...CRANK SUB ASSY 1
-
35XG-E1422-00-00 ...CRANK 2...CRANK 2
-
43UR-E1681-00-00 ...PIN, CRANK 1...PIN, CRANK 1
-
593310-530J3-00 ...BEARING, CYL.#10...BEARING, CYL.#10
-
65XG-E1651-00-00 ...ROD, CONNECTING...ROD, CONNECTING
-
793306-30611-00 BEARINGBEARING
-
890280-03017-00 KEY, WOODRUFFKEY, WOODRUFF
-
94BD-11631-00-Y0 PISTON (STD)PISTON (STD)
-
94BD-11638-00-00 PISTON (1.00MM O/S) (OPT)PISTON (1.00MM O/S) (OPT)
-
94BD-11636-00-00 PISTON (0.50MM O/S) (OPT)PISTON (0.50MM O/S) (OPT)
-
105XG-E1603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
105XG-E1605-00-00 PISTON RING SET (0.50MM O/S) (OPT)PISTON RING SET (0.50MM O/S) (OPT)
-
105XG-E1607-00-00 PISTON RING SET (1.00MM O/S) (OPT)PISTON RING SET (1.00MM O/S) (OPT)
-
115XG-E1633-00-00 PIN, PISTONPIN, PISTON
-
1293450-17044-00 CIRCLIP, INNERCIRCLIP, INNER
-
135XG-E1536-00-00 GEAR, DRIVEGEAR, DRIVE
-
145XG-E1531-00-00 GEAR, BALANCE WEIGHTGEAR, BALANCE WEIGHT
-
155XG-E1454-00-00 WEIGHT 1WEIGHT 1
-
1693306-30427-00 BEARINGBEARING
-
1790282-05013-00 KEY, STRAIGHTKEY, STRAIGHT
-
1890215-14810-00 WASHER, LOCKWASHER, LOCK
-
1990170-14839-00 NUTNUT
-
2090280-05048-00 KEY, WOODRUFFKEY, WOODRUFF
-
2190201-107F8-00 WASHER, PLATEWASHER, PLATE
-
2292907-10100-00 WASHER, SPRINGWASHER, SPRING
-
2390101-10568-00 BOLTBOLT
-
2493210-16800-00 O-RINGO-RING
-
2599009-26400-00 CIRCLIPCIRCLIP
