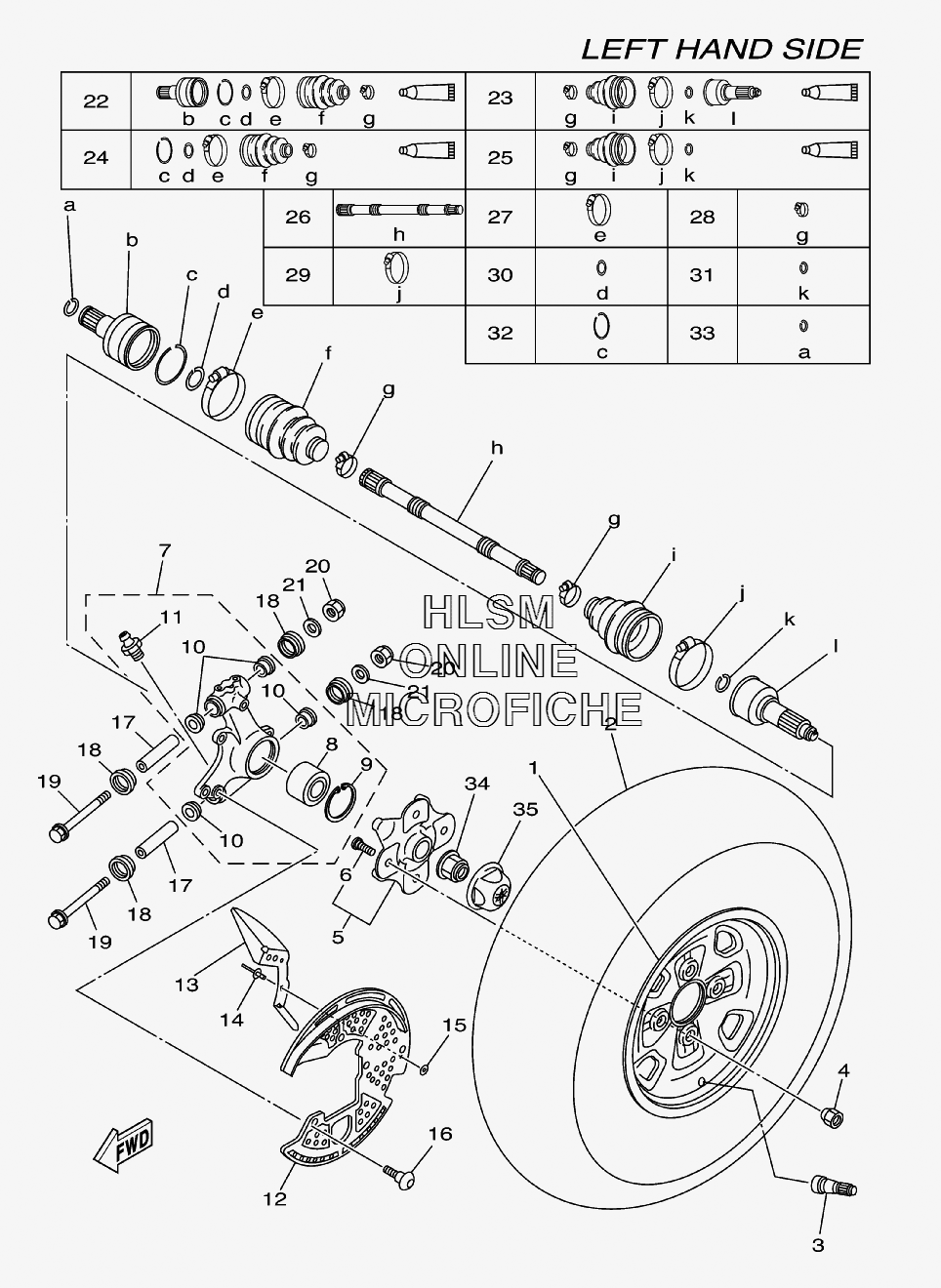

WHEEL - REAR LEFT SIDE W/ AXLE ASSY для Yamaha GRIZZLY 700 OUTDOORSMAN EDITION - 2007 года выпуска`
-
№АртикулНазвание
-
13B4-25390-10-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
294110-12012-00 TIRE (AT25X10-12** KT425T/L N) DUNLOPTIRE (AT25X10-12** KT425T/L N) DUNLOP
-
393900-00030-00 VALVE, RIMVALVE, RIM
-
490179-10007-00 NUTNUT
-
53B4-25111-00-00 HUB, FRONTHUB, FRONT
-
690114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
73B4-2530F-00-00 REAR KNUCKLE ASSYREAR KNUCKLE ASSY
-
893305-00602-00 ...BEARING...BEARING
-
999009-55500-00 ...CIRCLIP...CIRCLIP
-
1090381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
1193700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
123B4-2514A-00-00 RING, WHEEL 1 (LEFT)RING, WHEEL 1 (LEFT)
-
133B4-2539F-00-00 PLATE 1PLATE 1
-
1490267-47187-00 RIVET, BLINDRIVET, BLIND
-
1590201-04325-00 WASHER, PLATEWASHER, PLATE
-
1690154-06014-00 SCREW, BINDINGSCREW, BINDING
-
175KM-23448-00-00 SPACERSPACER
-
182NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
1990105-10480-00 BOLT, W/BASEDBOLT, W/BASED
-
2090185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2190201-101J1-00 WASHER, PLATEWASHER, PLATE
-
223B4-2530V-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
233B4-2510F-00-00 BALL JOINT SETBALL JOINT SET
-
243B4-2510H-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
253B4-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
263B4-2518E-10-00 SHAFTSHAFT
-
273B4-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
283B4-2512G-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
293B4-2511G-00-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
303B4-2512J-00-00 SNAP RINGSNAP RING
-
313B4-2512H-00-00 CIRCLIPCIRCLIP
-
323B4-2536E-00-00 CLIP, SPRINGCLIP, SPRING
-
333B4-25182-00-00 CIRCLIPCIRCLIP
-
3490179-20006-00 NUTNUT
-
353B4-2512A-00-00 CAP, WHEELCAP, WHEEL
