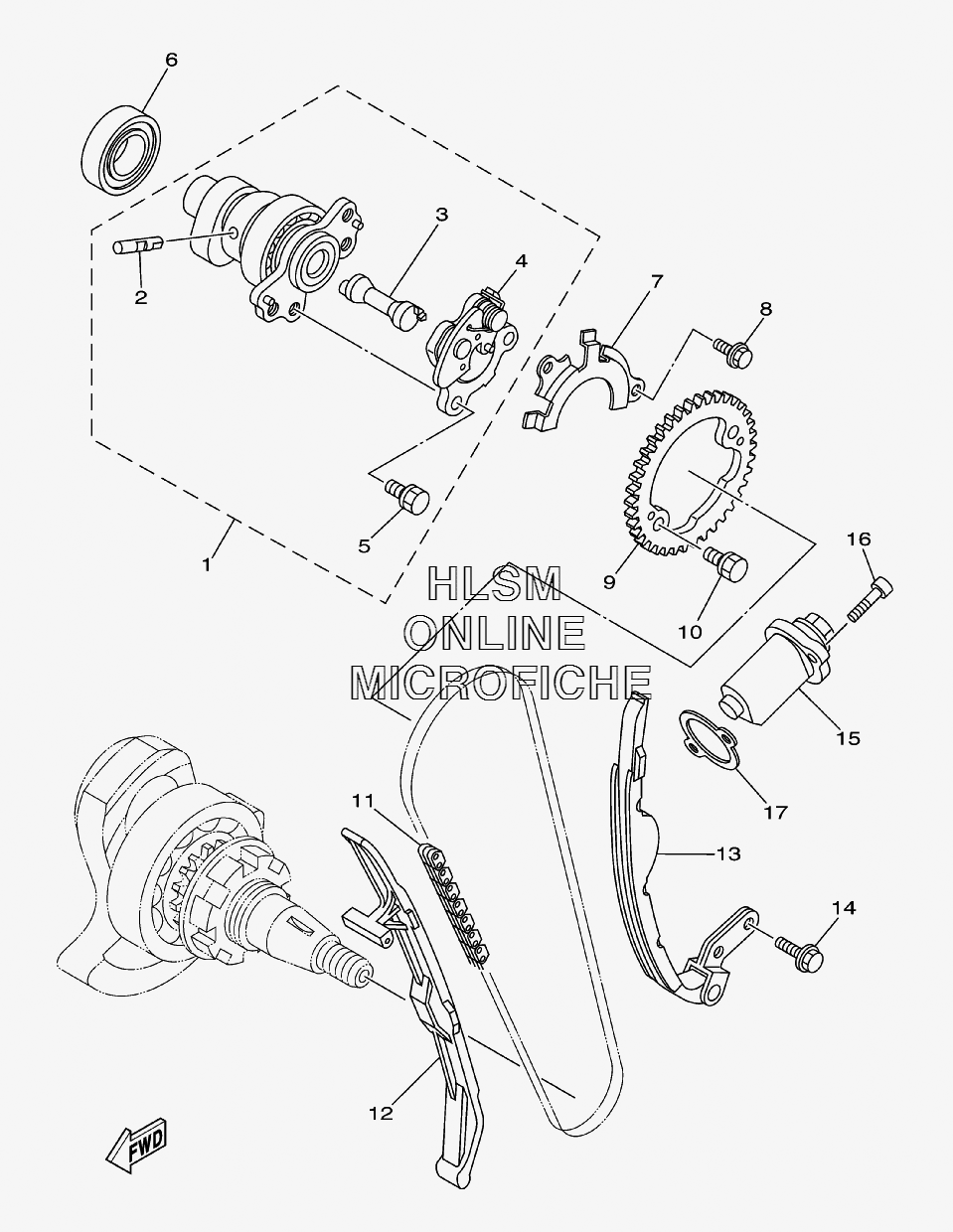

CAMSHAFT W/ CHAIN для Yamaha GRIZZLY 700 OUTDOORSMAN EDITION - 2007 года выпуска`
-
№АртикулНазвание
-
13B4-12170-00-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
25VK-12284-00-00 ...PIN, DECOMPRESSION LEVER...PIN, DECOMPRESSION LEVER
-
31S3-12290-00-00 ...LEVER, DECOMPRESSION SPRING...LEVER, DECOMPRESSION SPRING
-
41S3-12280-00-00 ...DECOMPRESSION ASSY...DECOMPRESSION ASSY
-
590105-07004-00 ...BOLT, FLANGE...BOLT, FLANGE
-
693306-07209-00 BEARINGBEARING
-
75VK-1111F-00-00 PLATEPLATE
-
890105-06078-00 BOLT, FLANGEBOLT, FLANGE
-
91S3-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
1090105-07004-00 BOLT, FLANGEBOLT, FLANGE
-
1194591-57126-00 CHAIN (98XRH2010-126M)CHAIN (98XRH2010-126M)
-
123B4-12231-01-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
133B4-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
1490105-06082-00 BOLT, FLANGEBOLT, FLANGE
-
153TB-12210-00-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
1691312-06025-00 BOLTBOLT
-
174DW-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
