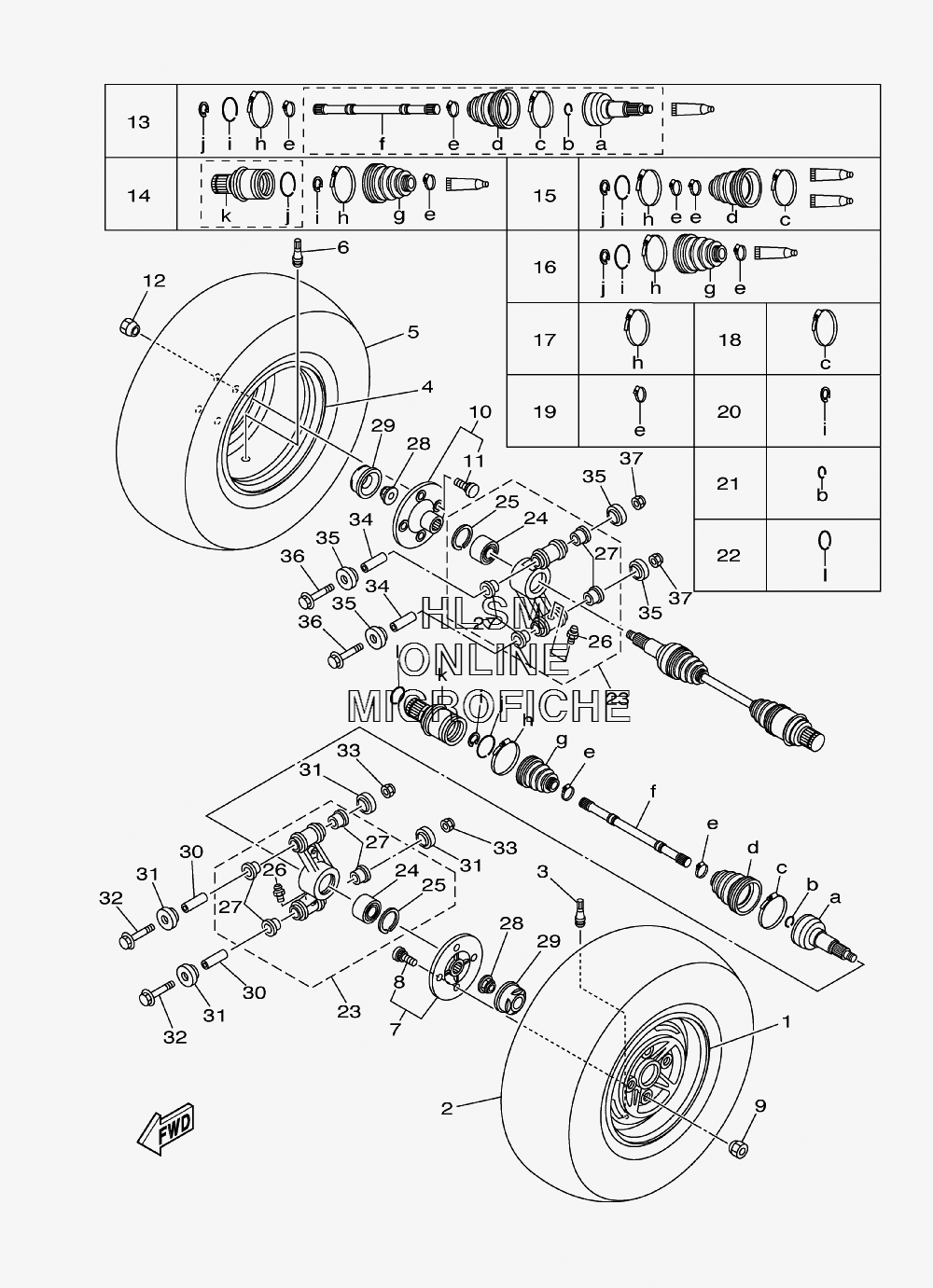

WHEEL - REAR W/ AXLE ASSY для Yamaha GRIZZLY 350 IRS HUNTER - 2007 года выпуска`
-
№АртикулНазвание
-
11D9-F5390-10-00 REAR RIM (BLACK) 12REAR RIM (BLACK) 12
-
294110-12809-00 TIRE (AT25 X 10-12 M980) CHENG SHINTIRE (AT25 X 10-12 M980) CHENG SHIN
-
393900-00813-00 VALVE, RIMVALVE, RIM
-
41D9-F5390-10-00 REAR RIM (BLACK) 12REAR RIM (BLACK) 12
-
594110-12809-00 TIRE (AT25 X 10-12 M980) CHENG SHINTIRE (AT25 X 10-12 M980) CHENG SHIN
-
693900-00813-00 VALVE, RIMVALVE, RIM
-
71D9-F532E-00-00 HUB SUB-ASSYHUB SUB-ASSY
-
890114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
990179-10540-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
101D9-F532E-00-00 HUB SUB-ASSYHUB SUB-ASSY
-
1190114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
1290179-10540-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
134S2-2530U-00-00 BALL JOINT SETBALL JOINT SET
-
144S1-2530V-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
154S1-2530X-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
164S1-2530Y-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
174KB-2511H-00-00 BOOT BAND (DOUBLE OFFSETJOINT)BOOT BAND (DOUBLE OFFSETJOINT)
-
183HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
193HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
202HR-2512J-00-00 SNAP RINGSNAP RING
-
214KB-2512H-00-00 CIRCLIPCIRCLIP
-
225KM-2536E-10-00 CLIP, SPRINGCLIP, SPRING
-
231D9-F532F-01-00 REAR KNUCKLE ASSY., 2REAR KNUCKLE ASSY., 2
-
2493305-00602-00 ...BEARING...BEARING
-
2599009-55500-00 ...CIRCLIP...CIRCLIP
-
2693700-06009-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
2790381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
2890179-20006-00 NUTNUT
-
292P5-F512A-00-00 CAP, WHEELCAP, WHEEL
-
305KM-23448-00-00 SPACERSPACER
-
312NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
3290105-10480-00 BOLT, FLANGEBOLT, FLANGE
-
3390185-10844-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
345KM-23448-00-00 SPACERSPACER
-
352NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
3690105-10480-00 BOLT, FLANGEBOLT, FLANGE
-
3790185-10844-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
