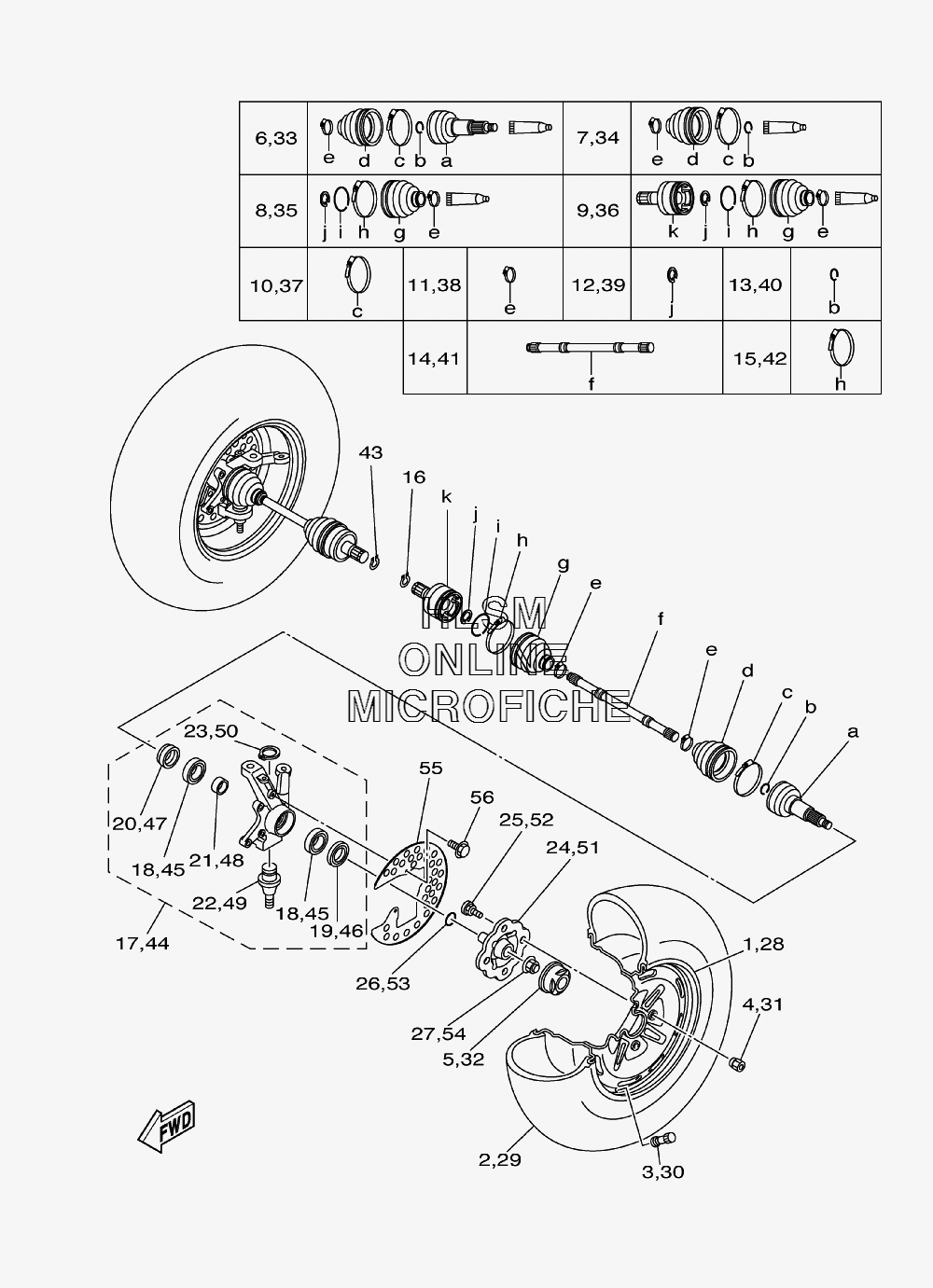

WHEEL - FRONT W/ AXLE ASSY для Yamaha GRIZZLY 350 IRS HUNTER - 2007 года выпуска`
-
№АртикулНазвание
-
11D9-F5180-10-00 FRONT RIM (BLACK)FRONT RIM (BLACK)
-
294108-12812-00 TIRE (AT25 X 8-12 M979) CHENG SHINTIRE (AT25 X 8-12 M979) CHENG SHIN
-
393900-00813-00 VALVE, RIMVALVE, RIM
-
490179-10540-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
52P5-F512A-00-00 CAP, WHEELCAP, WHEEL
-
64S1-2510F-00-00 BALL JOINT SETBALL JOINT SET
-
74S1-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
84S1-2510H-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
94S1-2530V-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
103HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
113HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
122HR-2512J-00-00 SNAP RINGSNAP RING
-
134KB-2512H-00-00 CIRCLIPCIRCLIP
-
144S1-2511E-00-00 SHAFT (LH)SHAFT (LH)
-
154S1-2511G-00-00 BOOT BANDBOOT BAND
-
1693450-22119-00 CIRCLIP, INNERCIRCLIP, INNER
-
175ND-F3501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1893306-006Y2-00 ...BEARING...BEARING
-
1993106-38046-00 ...OIL SEAL...OIL SEAL
-
2093106-38047-00 ...OIL SEAL...OIL SEAL
-
2190560-30325-00 ...SPACER...SPACER
-
225FU-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
2393410-32826-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
245ND-F5111-20-00 HUB, FRONTHUB, FRONT
-
2590114-10010-00 BOLT, SERRATIONBOLT, SERRATION
-
2693210-27666-00 O-RINGO-RING
-
2790179-20006-00 NUTNUT
-
281D9-F5180-10-00 FRONT RIM (BLACK)FRONT RIM (BLACK)
-
2994108-12812-00 TIRE (AT25 X 8-12 M979) CHENG SHINTIRE (AT25 X 8-12 M979) CHENG SHIN
-
3093900-00813-00 VALVE, RIMVALVE, RIM
-
3190179-10540-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
322P5-F512A-00-00 CAP, WHEELCAP, WHEEL
-
334S1-2510F-00-00 BALL JOINT SETBALL JOINT SET
-
344S1-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
354S1-2510H-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
364S1-2530V-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
373HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
383HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
392HR-2512J-00-00 SNAP RINGSNAP RING
-
404KB-2512H-00-00 CIRCLIPCIRCLIP
-
414S2-2511E-00-00 SHAFT (RH)SHAFT (RH)
-
424S1-2511G-00-00 BOOT BANDBOOT BAND
-
4393450-22119-00 CIRCLIP, INNERCIRCLIP, INNER
-
445ND-F3502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
4593306-006Y2-00 ...BEARING...BEARING
-
4693106-38046-00 ...OIL SEAL...OIL SEAL
-
4793106-38047-00 ...OIL SEAL...OIL SEAL
-
4890560-30325-00 ...SPACER...SPACER
-
495FU-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
5093410-32826-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
515ND-F5111-20-00 HUB, FRONTHUB, FRONT
-
5290114-10010-00 BOLT, SERRATIONBOLT, SERRATION
-
5393210-27666-00 O-RINGO-RING
-
5490179-20006-00 NUTNUT
-
555ND-F514A-00-00 RING, WHEEL 1 (LEFT)RING, WHEEL 1 (LEFT)
-
569582P-06012-00 BOLT, FLANGEBOLT, FLANGE
