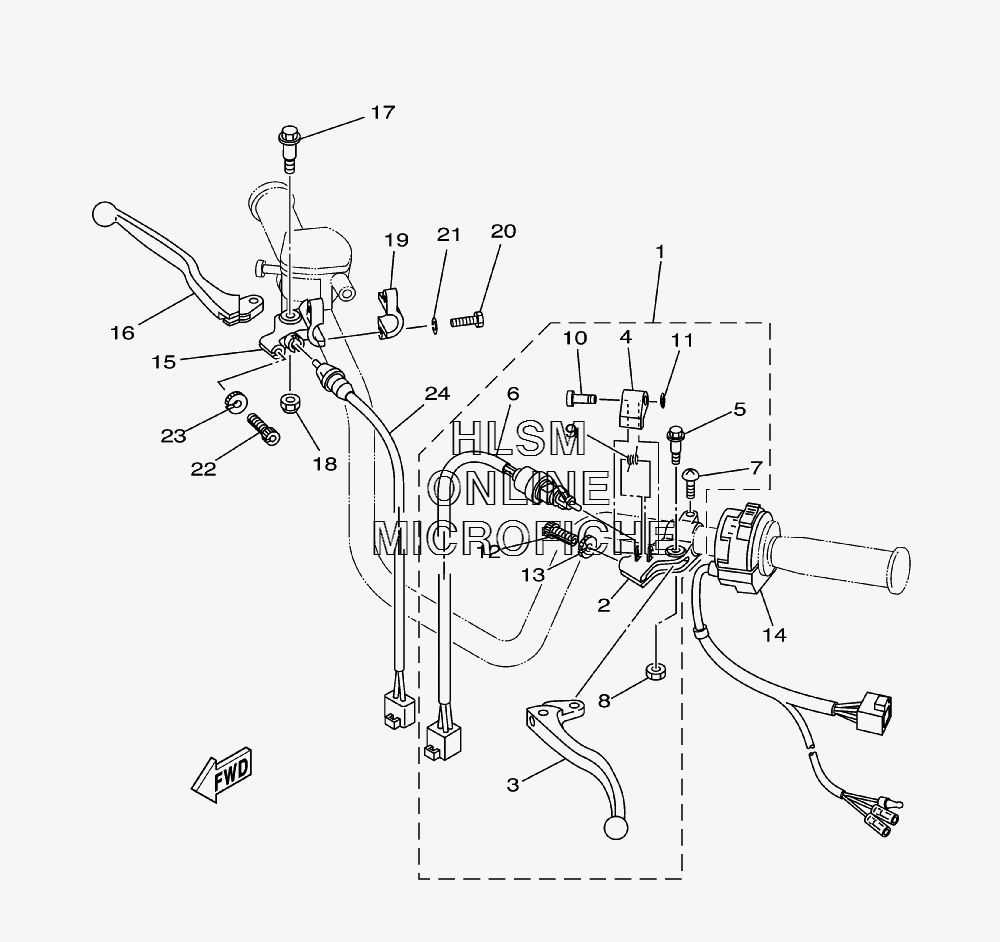

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha GRIZZLY 125 HUNTER - 2007 года выпуска`
-
№АртикулНазвание
-
13FA-82910-23-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
23FA-82911-01-00 ...HOLDER, LEVER 1...HOLDER, LEVER 1
-
32HT-83912-00-00 ...LEVER 1...LEVER 1
-
43FA-83965-00-00 ...LEVER, LOCK...LEVER, LOCK
-
590109-06799-00 ...BOLT...BOLT
-
63FA-83980-03-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
798507-06020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
895607-06100-00 ...NUT, U...NUT, U
-
93FA-83966-00-00 ...SPRING, RETURN...SPRING, RETURN
-
103FA-83967-00-00 ...PIN, LOCK 1...PIN, LOCK 1
-
113FA-26466-00-00 ...RING, SNAP...RING, SNAP
-
1290123-08046-00 ...BOLT...BOLT
-
1390179-08148-00 ...NUT, SPEC'L SHAPE...NUT, SPEC'L SHAPE
-
144KB-83973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
153JN-82921-00-00 HOLDER, LEVER 2HOLDER, LEVER 2
-
1659V-83922-00-00 LEVER RLEVER R
-
1790109-06799-00 BOLTBOLT
-
1895607-06100-00 NUT, UNUT, U
-
192XJ-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
2097027-06025-00 BOLTBOLT
-
2192907-06100-00 WASHER, SPRINGWASHER, SPRING
-
2290123-08046-00 BOLTBOLT
-
2390179-08148-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
243FA-83980-10-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
