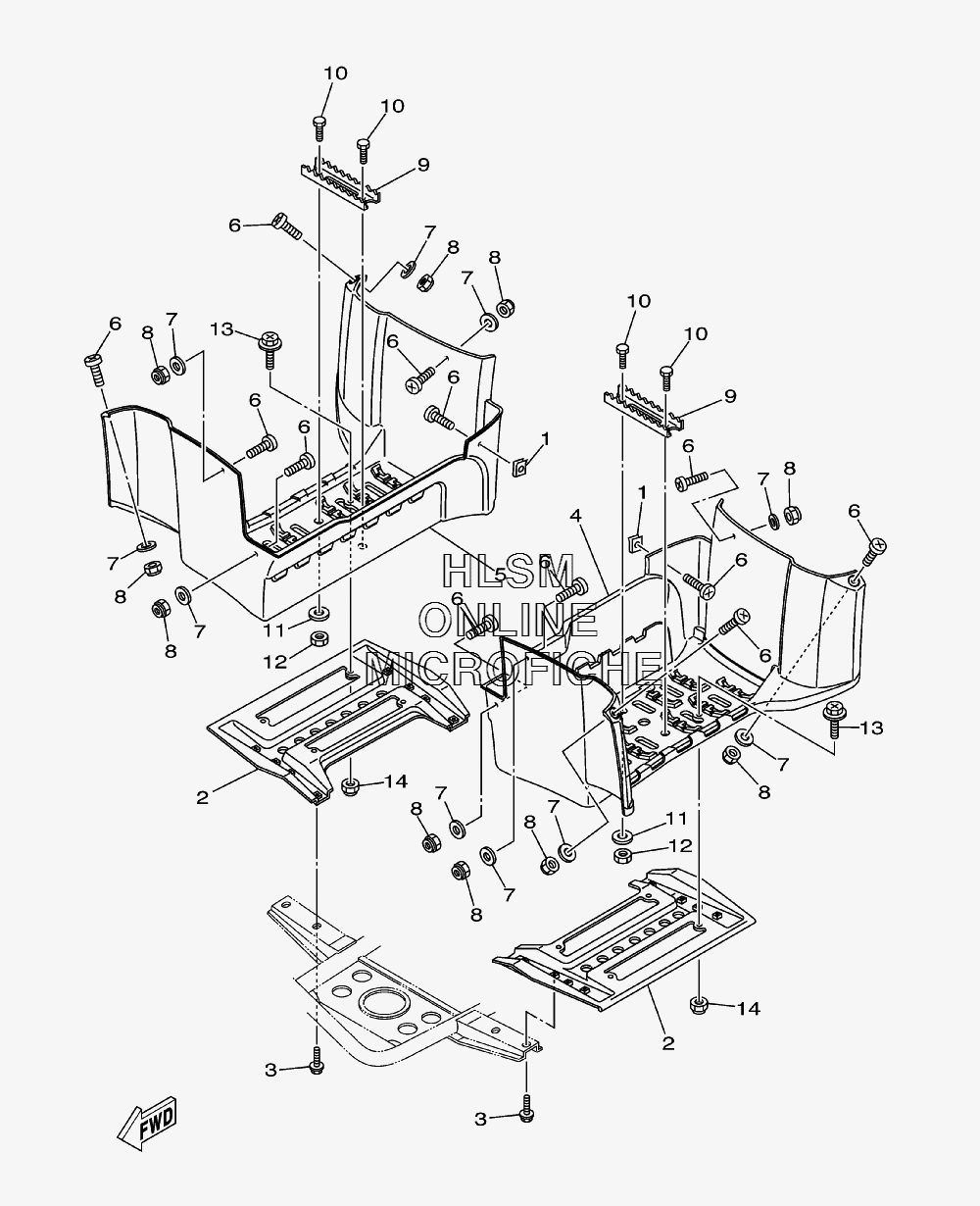

FOOTREST W/ BRAKE PEDAL для Yamaha GRIZZLY 125 HUNTER - 2007 года выпуска`
-
№АртикулНазвание
-
190183-06053-00 NUT, SPRINGNUT, SPRING
-
23FA-27411-10-00 FOOTREST 1FOOTREST 1
-
395817-08014-00 BOLT, FLANGEBOLT, FLANGE
-
41C5-27453-00-00 COVER 1COVER 1
-
51C5-27463-00-00 COVER 2COVER 2
-
698907-06020-00 SCREW, BINDSCREW, BIND
-
790201-062A8-00 WASHER, PLATEWASHER, PLATE
-
895707-06300-00 NUT, NYLONNUT, NYLON
-
95GH-2741A-00-00 ARM 1ARM 1
-
1090109-063F5-00 BOLTBOLT
-
1190201-06071-00 WASHER, PLATEWASHER, PLATE
-
1295317-06600-00 NUTNUT
-
1390119-05020-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1495707-05300-00 NUT, FLANGENUT, FLANGE
