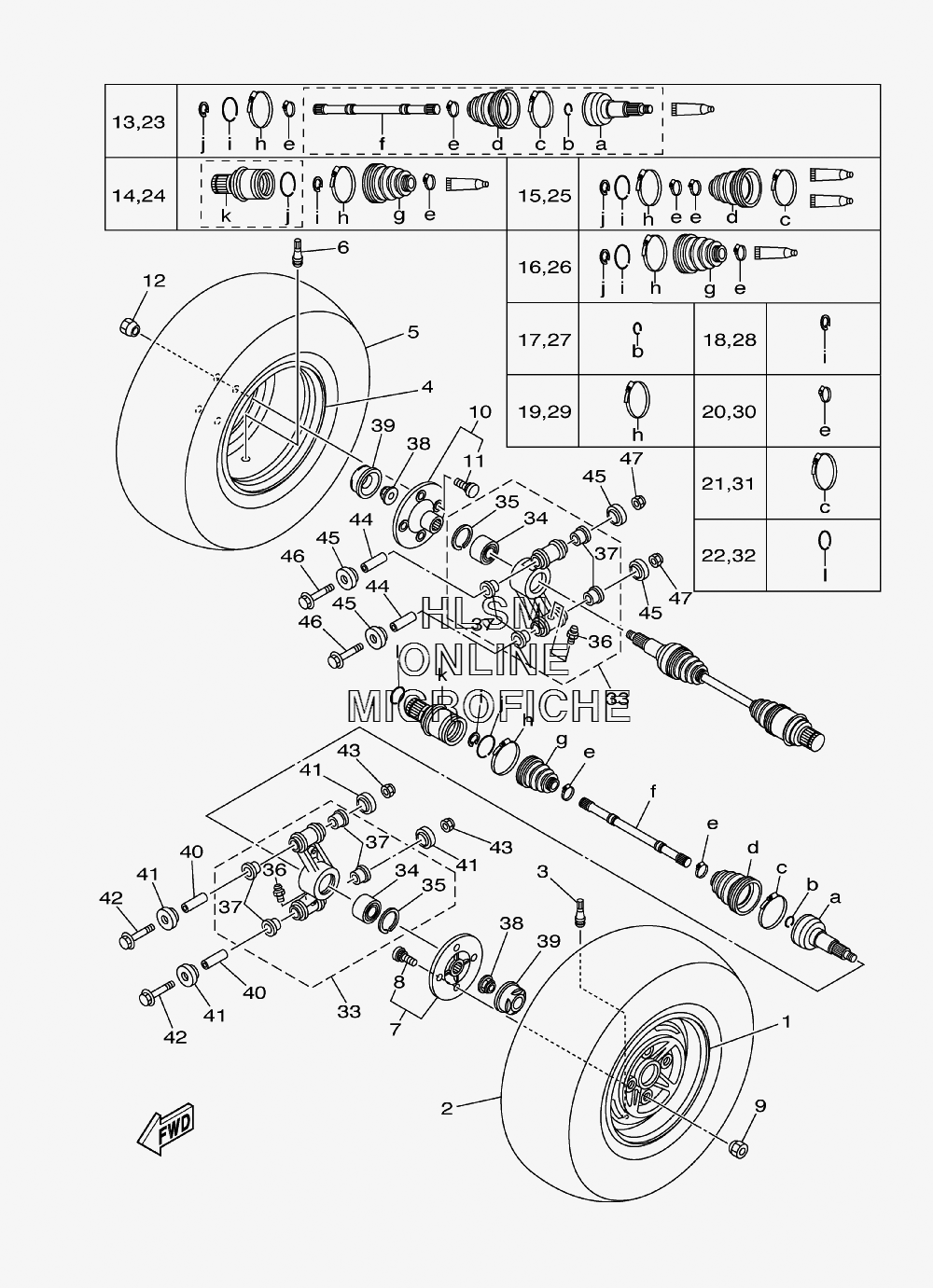

WHEEL - REAR W/ AXLE ASSY для Yamaha BIG BEAR 400-IRS - 2007 года выпуска`
-
№АртикулНазвание
-
11D9-F5390-10-00 REAR RIM (BLACK) 12REAR RIM (BLACK) 12
-
294110-12806-00 TIRE (REAR) AT25 X 10) CARLISLETIRE (REAR) AT25 X 10) CARLISLE
-
393900-00810-00 VALVE, RIMVALVE, RIM
-
41D9-F5390-10-00 REAR RIM (BLACK) 12REAR RIM (BLACK) 12
-
594110-12806-00 TIRE (REAR) AT25 X 10) CARLISLETIRE (REAR) AT25 X 10) CARLISLE
-
693900-00810-00 VALVE, RIMVALVE, RIM
-
71D9-F532E-00-00 HUB SUB-ASSYHUB SUB-ASSY
-
890114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
990179-10540-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
101D9-F532E-00-00 HUB SUB-ASSYHUB SUB-ASSY
-
1190114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
1290179-10540-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
134S1-2530U-00-00 BALL JOINT SET (LH)BALL JOINT SET (LH)
-
144S1-2530V-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
154S1-2530X-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
164S1-2530Y-00-00 BOOT SET(DOUBLE OFFSET JOINT)BOOT SET(DOUBLE OFFSET JOINT)
-
174KB-2512H-00-00 CIRCLIPCIRCLIP
-
182HR-2512J-00-00 SNAP RINGSNAP RING
-
194KB-2511H-00-00 BOOT BAND(DOUBLE OFFSETJOINT)BOOT BAND(DOUBLE OFFSETJOINT)
-
203HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
213HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
225KM-2536E-10-00 CLIP, SPRINGCLIP, SPRING
-
234S1-2530T-00-00 BALL JOINT SET (RH)BALL JOINT SET (RH)
-
244S1-2530V-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
254S1-2530X-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
264S1-2530Y-00-00 BOOT SET(DOUBLE OFFSET JOINT)BOOT SET(DOUBLE OFFSET JOINT)
-
274KB-2512H-00-00 CIRCLIPCIRCLIP
-
282HR-2512J-00-00 SNAP RINGSNAP RING
-
294KB-2511H-00-00 BOOT BAND(DOUBLE OFFSETJOINT)BOOT BAND(DOUBLE OFFSETJOINT)
-
303HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
313HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
325KM-2536E-10-00 CLIP, SPRINGCLIP, SPRING
-
331D9-F532F-01-00 REAR KNUCKLE ASSY.,2REAR KNUCKLE ASSY.,2
-
3493305-00602-00 ...BEARING...BEARING
-
3599009-55500-00 ...CIRCLIP...CIRCLIP
-
3693700-06009-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
3790381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
3890179-20006-00 NUTNUT
-
392P5-F512A-00-00 CAP, WHEELCAP, WHEEL
-
405KM-23448-00-00 SPACERSPACER
-
412NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
4290105-10480-00 BOLT, FLANGEBOLT, FLANGE
-
4390185-10844-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
445KM-23448-00-00 SPACERSPACER
-
452NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
4690105-10480-00 BOLT, FLANGEBOLT, FLANGE
-
4790185-10844-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
