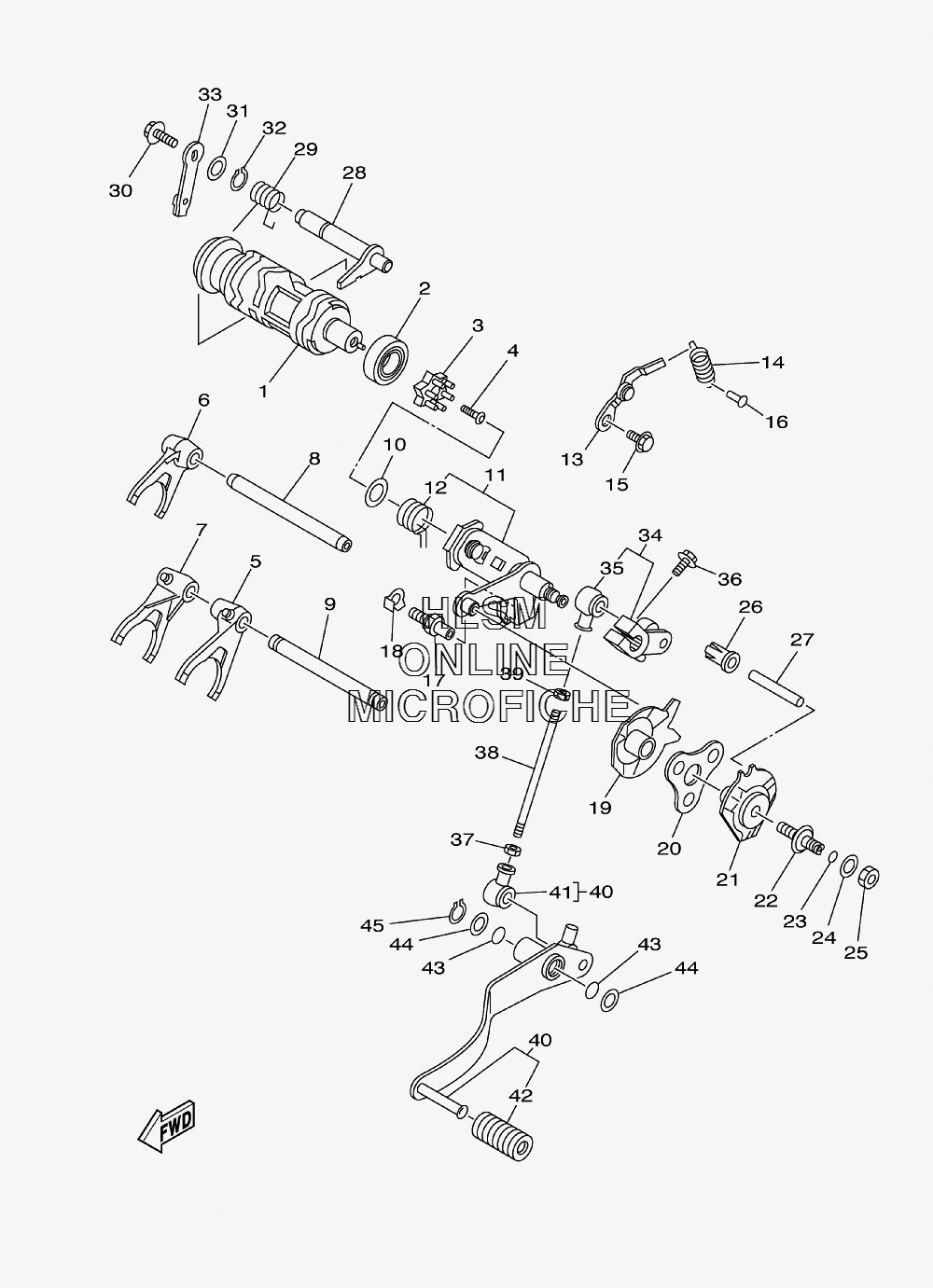

SHIFT CAM W/ FORK для Yamaha BIG BEAR 400-IRS - 2007 года выпуска`
-
№АртикулНазвание
-
15EH-18540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
293306-00308-00 BEARINGBEARING
-
34KB-18185-00-00 SEGMENTSEGMENT
-
490151-06062-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
54KB-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
65EH-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
74KB-18513-00-00 FORK, SHIFT 3FORK, SHIFT 3
-
84GB-18535-00-00 BAR, SHIFT FORK GUIDE 2BAR, SHIFT FORK GUIDE 2
-
94KB-18531-01-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
1090201-14691-00 WASHER, PLATEWASHER, PLATE
-
114KB-18101-00-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
1290508-32711-00 ...SPRING, TORSION...SPRING, TORSION
-
134KB-18140-00-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
1490506-12489-00 SPRING, TENSIONSPRING, TENSION
-
1590109-063F7-00 BOLTBOLT
-
16132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
174G0-18127-00-00 STOPPER, SCREWSTOPPER, SCREW
-
1890215-08260-00 WASHER, LOCKWASHER, LOCK
-
194KB-18106-00-00 GUIDE SHIFT COMP. 2GUIDE SHIFT COMP. 2
-
204KB-18181-00-00 HOLDER, PAWLHOLDER, PAWL
-
214KB-18104-00-00 SHIFT GUIDE COMP.SHIFT GUIDE COMP.
-
224KB-18127-00-00 STOPPER, SCREWSTOPPER, SCREW
-
2393210-07590-00 O-RINGO-RING
-
2490201-08093-00 WASHER, PLATEWASHER, PLATE
-
2595307-08700-00 NUTNUT
-
264KB-18424-00-00 CLIPCLIP
-
2793608-50149-00 PIN, DOWELPIN, DOWEL
-
284KB-18380-00-00 SHIFTER BRKT. ASSYSHIFTER BRKT. ASSY
-
2990508-186A5-00 SPRING, TORSIONSPRING, TORSION
-
3095817-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3190201-12166-00 WASHER, PLATEWASHER, PLATE
-
3299009-12400-00 CIRCLIPCIRCLIP
-
334KB-18431-00-00 BRACKET, SHIFTERBRACKET, SHIFTER
-
344KB-18112-01-00 ARM, SHIFTARM, SHIFT
-
352H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
3697017-06020-00 BOLTBOLT
-
3736Y-18115-00-00 ROD, SHIFTROD, SHIFT
-
3890170-06228-00 NUT(COUNTER CLOCKWISE)NUT(COUNTER CLOCKWISE)
-
3995304-06700-00 NUTNUT
-
404KB-18110-11-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
412H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
42132-18113-01-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
4393210-15414-00 O-RINGO-RING
-
4490201-15797-00 WASHER, PLATEWASHER, PLATE
-
4593430-12008-00 CIRCLIPCIRCLIP
