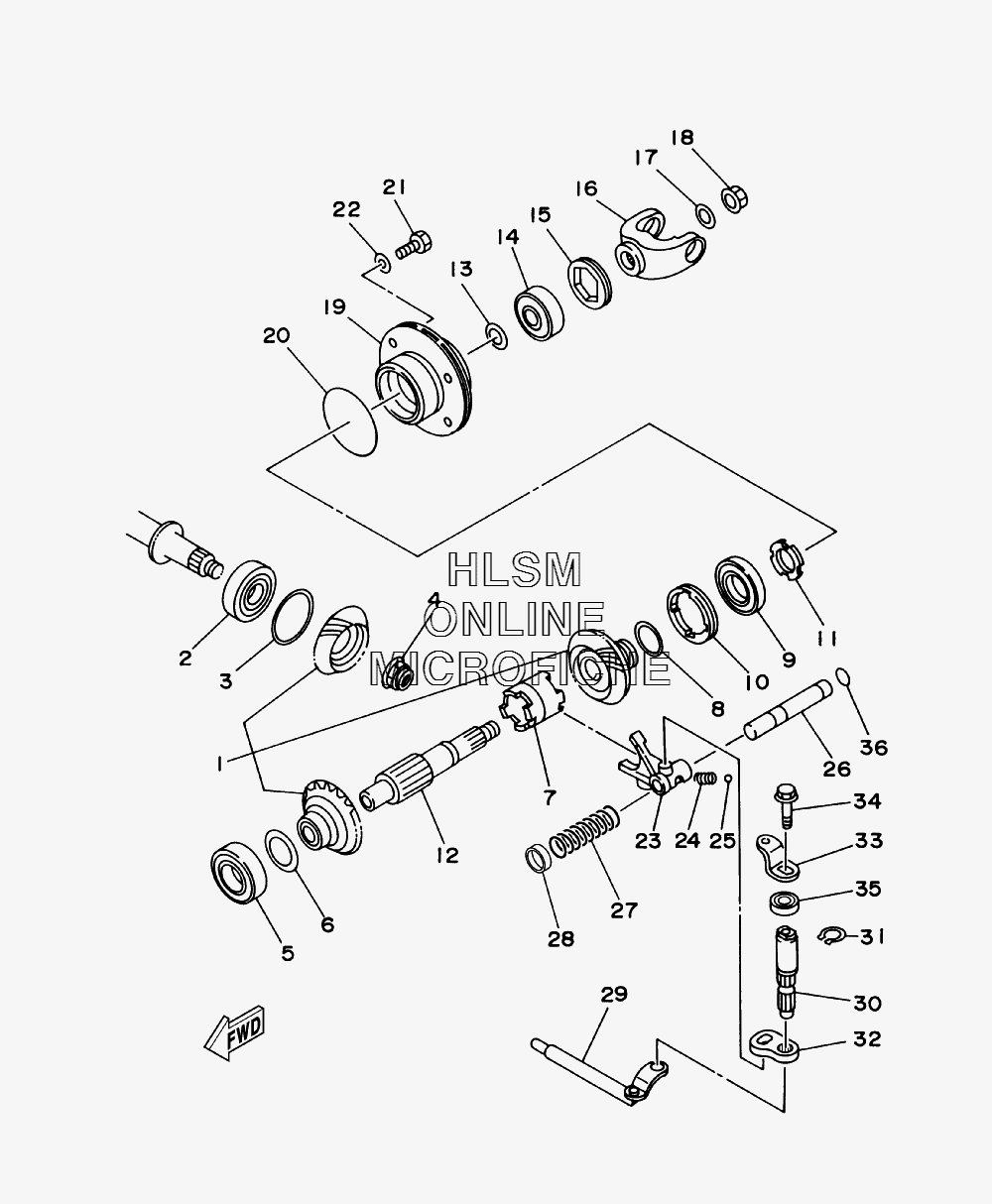

MIDDLE DRIVE GEAR для Yamaha BIG BEAR 250 - 2007 года выпуска
-
№АртикулНазвание
-
152G-Y1754-00-00 MIDDLE GEAR COMP.MIDDLE GEAR COMP.
-
293306-304YE-00 BEARINGBEARING
-
324W-17537-10-00 SHIM, THRUST (0.13T) (OPT)SHIM, THRUST (0.13T) (OPT)
-
324W-17537-30-00 SHIM, THRUST (0.2T) (OPT)SHIM, THRUST (0.2T) (OPT)
-
324W-17537-60-00 SHIM, THRUST (0.5T) (OPT)SHIM, THRUST (0.5T) (OPT)
-
324W-17537-40-00 SHIM, THRUST (0.3T) (OPT)SHIM, THRUST (0.3T) (OPT)
-
324W-17537-50-00 SHIM, THRUST (0.4T) (OPT)SHIM, THRUST (0.4T) (OPT)
-
324W-17537-20-00 SHIM, THRUST (0.15T) (OPT)SHIM, THRUST (0.15T) (OPT)
-
490179-16651-00 NUTNUT
-
593306-006Y3-00 BEARINGBEARING
-
652G-17531-01-00 SHIM, PINION (0.1T) (OPT)SHIM, PINION (0.1T) (OPT)
-
652G-17531-21-00 SHIM, PINION (0.2T) (OPT)SHIM, PINION (0.2T) (OPT)
-
652G-17531-51-00 SHIM, PINION (0.5T) (OPT)SHIM, PINION (0.5T) (OPT)
-
652G-17531-41-00 SHIM, PINION (0.4T) (OPT)SHIM, PINION (0.4T) (OPT)
-
652G-17531-31-00 SHIM, PINION (0.3T) (OPT)SHIM, PINION (0.3T) (OPT)
-
652G-17531-11-00 SHIM, PINION (0.15T) (OPT)SHIM, PINION (0.15T) (OPT)
-
75XG-E7285-00-00 CLUTCH, DOGCLUTCH, DOG
-
852G-17967-20-00 SHIM, (0.15T) (OPT)SHIM, (0.15T) (OPT)
-
852G-17967-30-00 SHIM, (0.2T) (OPT)SHIM, (0.2T) (OPT)
-
852G-17967-40-00 SHIM, (0.3T) (OPT)SHIM, (0.3T) (OPT)
-
993306-078Y0-00 BEARINGBEARING
-
1090179-55464-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1190179-28465-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
125XG-E7553-00-00 SHAFT, MIDDLE DRIVENSHAFT, MIDDLE DRIVEN
-
135XG-E7968-00-00 SHIM, (1.0T) (OPT)SHIM, (1.0T) (OPT)
-
135XG-E7968-10-00 SHIM, (1.1T) (OPT)SHIM, (1.1T) (OPT)
-
135XG-E7968-20-00 SHIM, (1.2T) (OPT)SHIM, (1.2T) (OPT)
-
135XG-E7968-30-00 SHIM, (1.3T) (OPT)SHIM, (1.3T) (OPT)
-
135XG-E7968-40-00 SHIM, (1.4T) (OPT)SHIM, (1.4T) (OPT)
-
135XG-E7968-50-00 SHIM, (1.5T) (OPT)SHIM, (1.5T) (OPT)
-
135XG-E7968-60-00 SHIM, (1.6T) (OPT)SHIM, (1.6T) (OPT)
-
135XG-E7968-70-00 SHIM, (1.7T) (OPT)SHIM, (1.7T) (OPT)
-
135XG-E7968-80-00 SHIM, (1.8T) (OPT)SHIM, (1.8T) (OPT)
-
135XG-E7968-90-00 SHIM, (1.9T) (OPT)SHIM, (1.9T) (OPT)
-
1493399-99917-00 BEARING, SPECIALBEARING, SPECIAL
-
151P0-E7642-00-00 NUT, BEARINGNUT, BEARING
-
165XG-E7556-00-00 YOKE, JOINTYOKE, JOINT
-
1790201-125F7-00 WASHER, PLATEWASHER, PLATE
-
1890179-12248-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
195XG-E7551-00-00 HOUSING, BEARINGHOUSING, BEARING
-
2093210-53800-00 O-RINGO-RING
-
2197027-08025-00 BOLTBOLT
-
2292907-08600-00 WASHER, PLATEWASHER, PLATE
-
235XG-E8514-00-00 FORK, SHIFT 4FORK, SHIFT 4
-
2490501-101A5-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2593501-04805-00 BALLBALL
-
265XG-E8534-00-00 BAR, SHIFT FORK GUIDEBAR, SHIFT FORK GUIDE
-
2790501-13800-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
281P0-E8323-00-00 CAP, SPRINGCAP, SPRING
-
295XG-E812A-00-00 STOPPER SHAFT ASSYSTOPPER SHAFT ASSY
-
305XG-E8197-00-00 SHAFTSHAFT
-
3199009-14400-00 CIRCLIPCIRCLIP
-
325XG-E8451-00-00 LEVER, SHIFTLEVER, SHIFT
-
335XG-E8198-00-00 LEVERLEVER
-
3495817-06016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
3593102-14856-00 OIL SEALOIL SEAL
-
3693210-09165-00 O-RINGO-RING
Все узлы модели:
- AIR CLEANER W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- CAMSHAFT W/ CHAIN
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER
- CYLINDER HEAD
- DECALS
- DIFFERENTIAL - REAR W/ DRIVE SHAFT
- DRIVE SELECTOR
- ELECTRICAL
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- • MIDDLE DRIVE GEAR
- MODEL INFO - MANUALS
- OIL PUMP
- RACK AND BUMPER
- SEAT
- SHIFT CAM W/ FORK
- SHIFT SHAFT
- SIDE COVER
- STARTER - RECOIL
- STARTER CLUTCH
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- TRANSMISSION
- VALVE ASSY
- WHEEL - FRONT W/ AXLE ASSY
- WHEEL - REAR W/ AXLE ASSY
